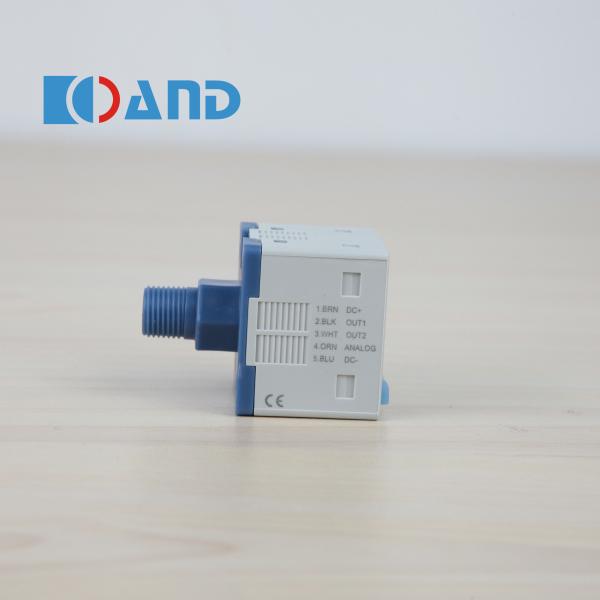

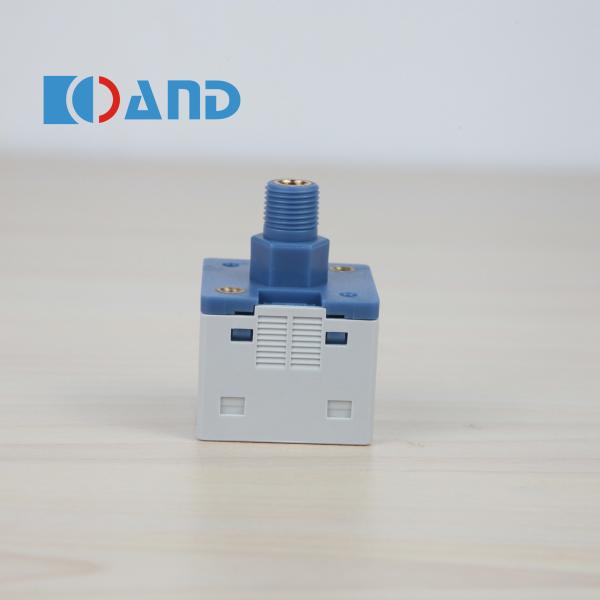

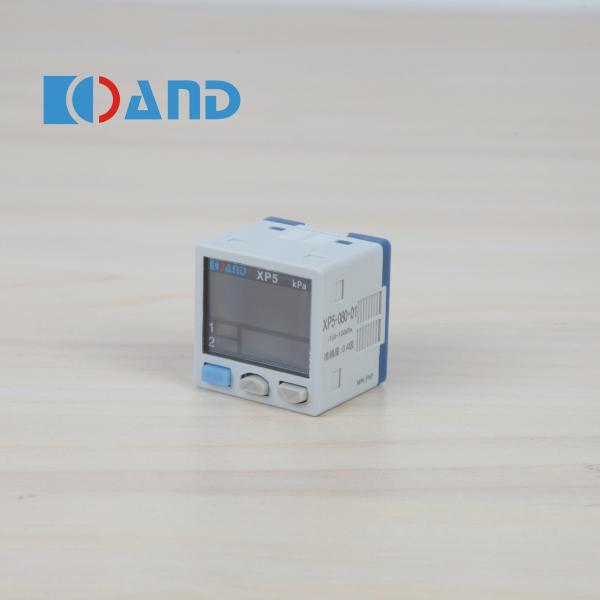

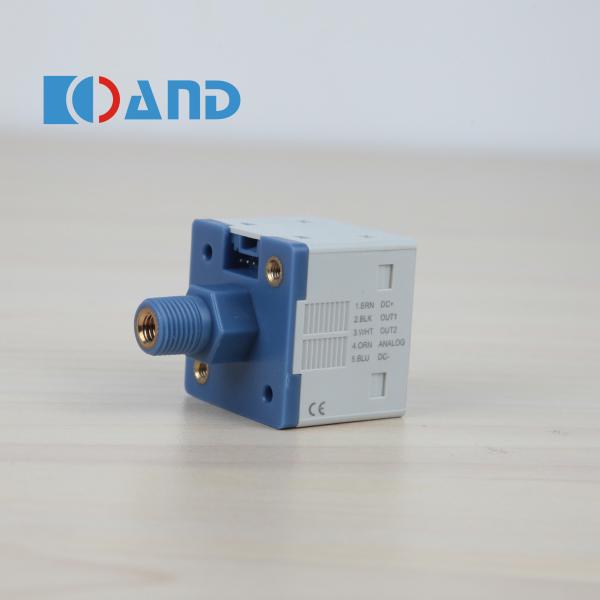

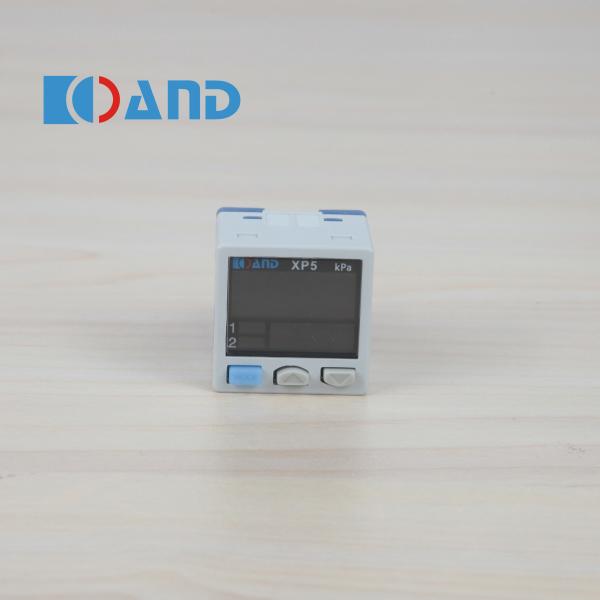

XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
XP2 Pipe Digital Pressure Sensor IP40 Nylon Fiberglass Case Liquid Crystal Display
Specifications
Brand Name :
AND
Model Number :
XP2
Certification :
CE
Place of Origin :
China
Pressure types :
Standard pressure
Rated pressure range :
-0.1MPa~1.0MPa
Adjustable pressure range :
-0.1MPa~1.0MPa
withstandable pressure :
1.5MPa
Suitable fluid type :
Non-corrosive gas
Power supply voltage :
12~24V DC ±5%
Electric Current :
30 12V 50
Switch Output :
NPN O.C Output: 80mA/24VDC Max or PNP O.C Output: 80mA/24VDC
Repeatability :
F.S.
Response delay :
Switchable between: 2.5ms,5ms,10ms,25ms,50ms,100ms,250ms,500ms,1000ms,5000ms
Voltage output :
0.6V~5V Line:+-1%F.S. Impedance Output: 1K
Current Output :
2.4mA~20mA Line:+-1%F.S. maximum load impedance: Power supply voltage12V: 300 ； Power supply voltage 24V: 600 , minimum load impedance: 50
Temperature Range :
Working Temperature:0~50℃ Storage temperature:-10~60℃(Without ondensation or ice）
Humidity range :
35~85%RH
Characteristics :
±1%F.S.（25℃）
Protection level rating :
IP40
Material :
Case:nylon and fiberglass liquid crystal display:Propylene Pipe: External POM Thread + Internal M5 Copper Nut Insertion. sealing ring：H-NBR Button:Silicone Rubber
Dimensions :
（Plastic parts） （The overall dimensions）
Weight :
About 80g
Description

xp2 Pipe: External POM Thread + Internal M5 Copper Nut Insertion.
