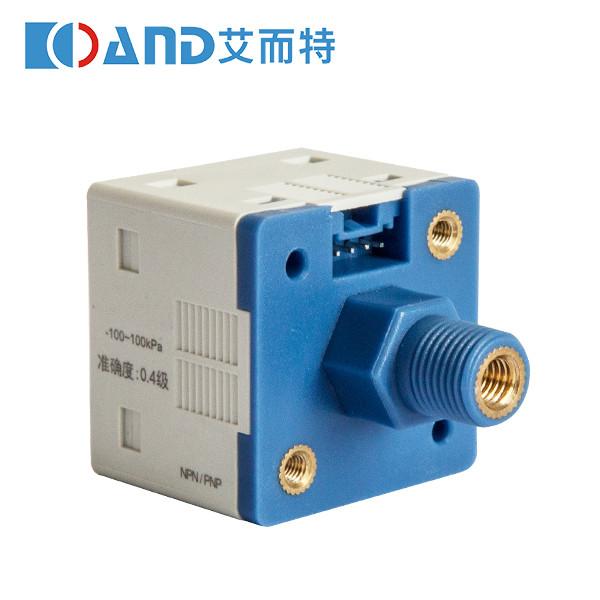

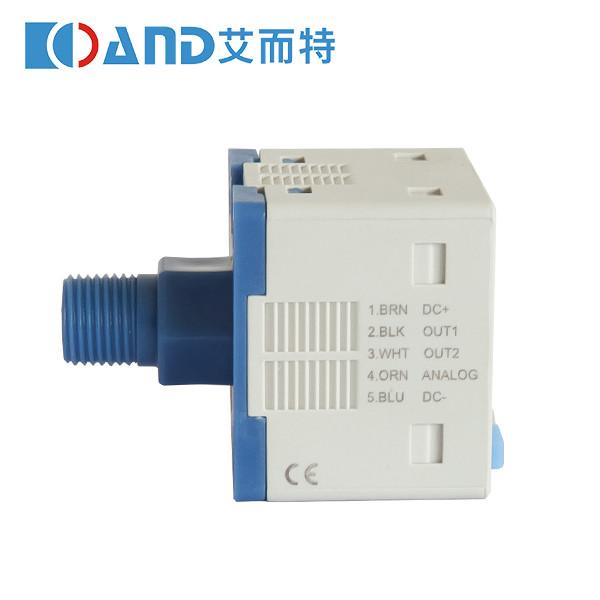

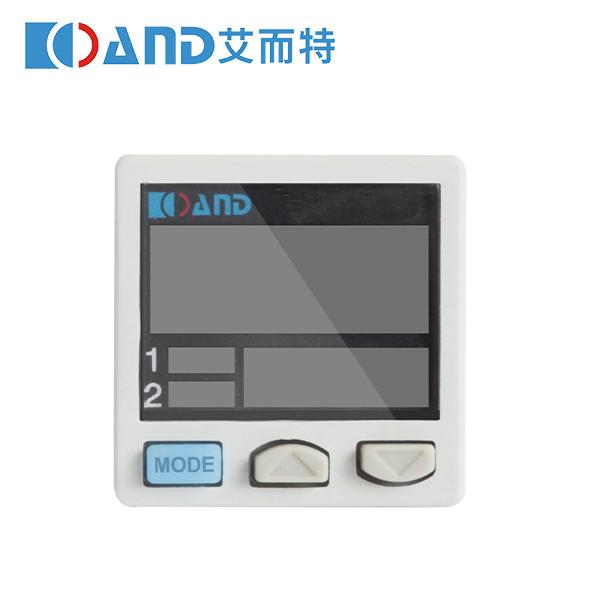

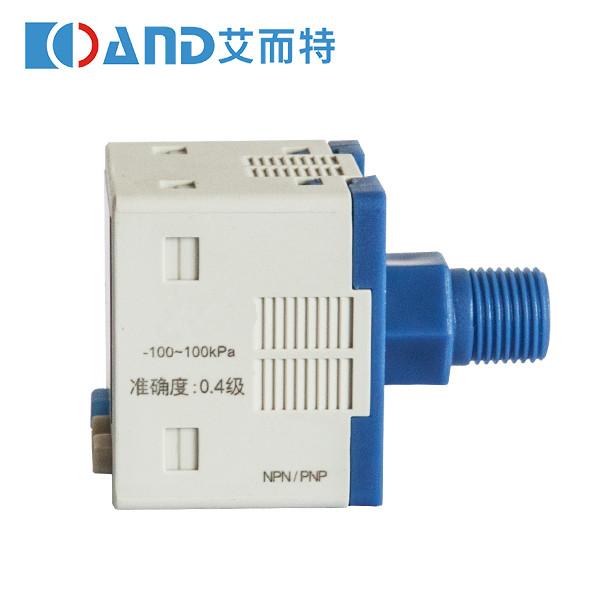

DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
Specifications
Brand Name :
AND
Model Number :
DP5
Certification :
CE
Place of Origin :
China
Pressure types :
Standard pressure
Rated pressure range :
-100kPa~100kPa
withstandable pressure :
500kPa
Suitable fluid type :
Non-corrosive gas
Power supply voltage :
12~24V DC±5%
Electric Current :
24V 30mA Max
Switch Output :
NPN O.C Output: 80mA/24VDC Max or PNP O.C Output: 80mA/24VDC
Repeatability :
F.S.
Response delay :
Switchable between: 2.5ms,5ms,10ms,25ms,50ms,100ms,250ms,500ms,1000ms,5000ms
Voltage output :
1V~5V Line:+-1%F.S Impedance Output: 1K
Current Output :
4mA~20mA Line:+-1%F.S Line:+-1%F.S. maximum load impedance: Power supply voltage12V: 300 ； Power supply voltage 24V: 600, minimum load impedance: 50
Temperature Range :
Working Temperature:0~50℃ Storage temperature:-10~60℃(Without ondensation or ice
Humidity range :
35~85%RH
Characteristics :
±1%F.S.（25℃）
Protection level rating :
IP40
Material :
Case:nylon and fiberglass liquid crystal display:Propylene Pipe: External POM Thread + Internal M5 Copper Nut Insertion. sealing ring：H-NBR Button:Silicone Rubber
Dimensions :
（Plastic parts） （The overall dimensions）
Weight :
About 80g
Description

DP5 Pipe: External POM Thread + Internal M5 Copper Nut Insertion.

DP5 Pipe Digital Pressure Sensor 500kPa Withstandable Pressure For Non Corrosive Gas
