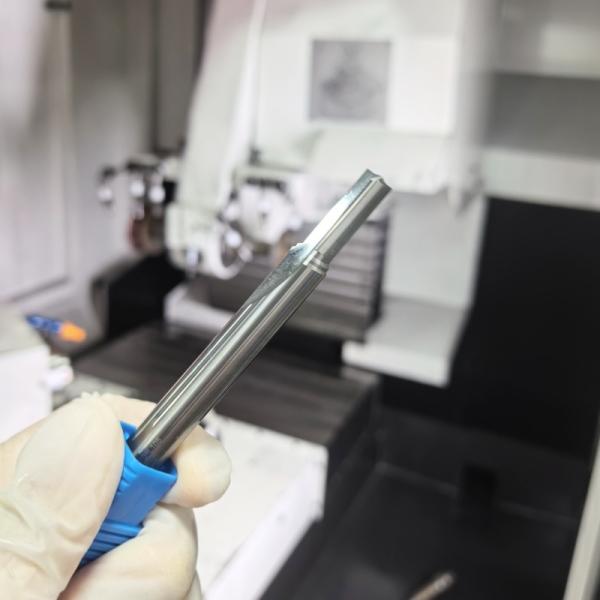

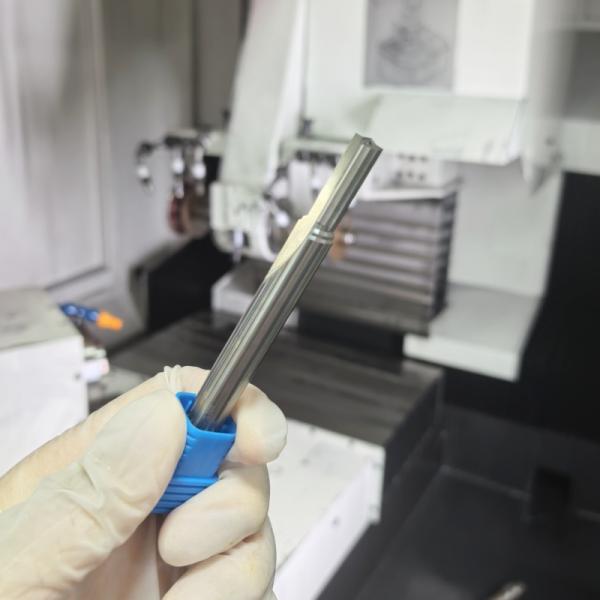

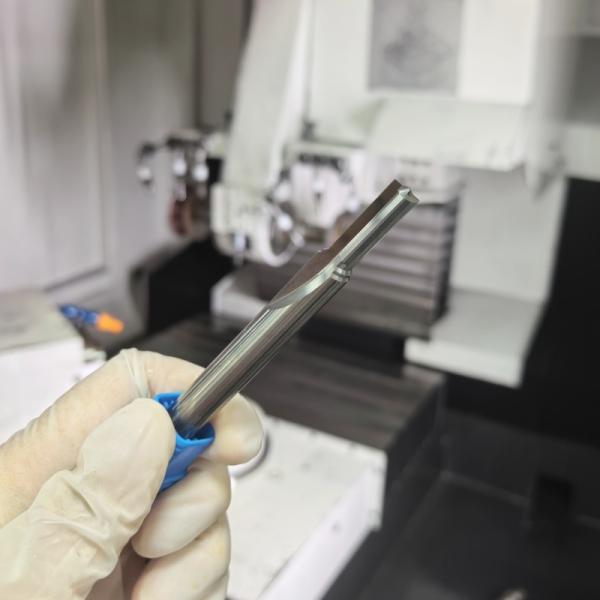

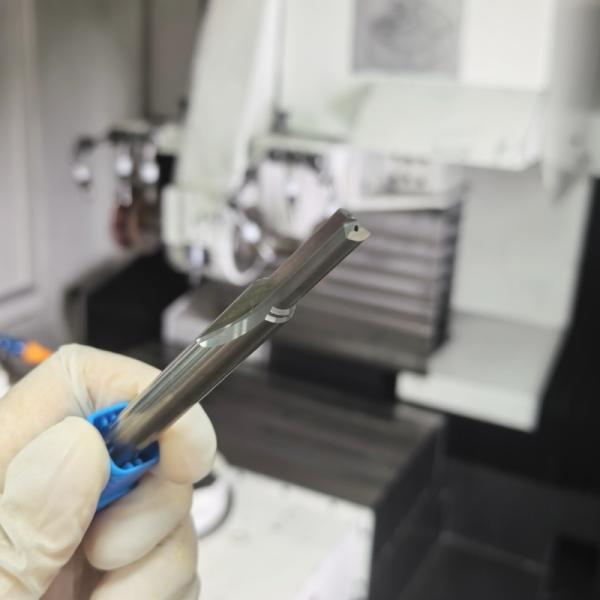

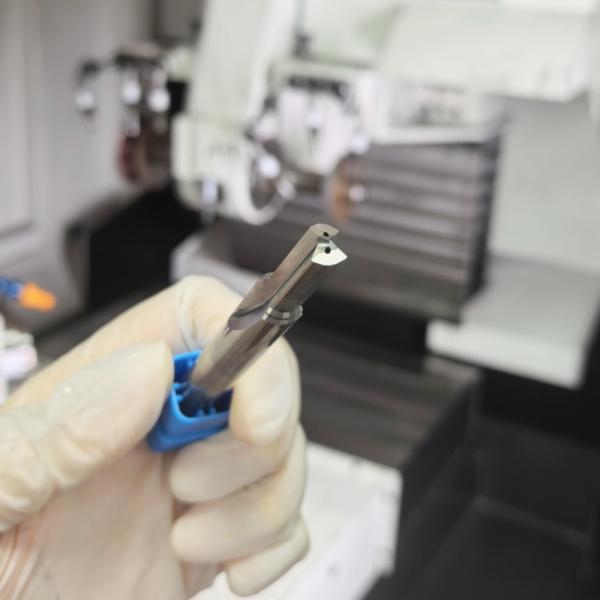

Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining
Specifications
Brand Name :
AMG
Model Number :
Standard/Customized
Certification :
ISO9001
Place of Origin :
China
MOQ :
3
Delivery Time :
3-7 days for standard products/7-10 days for non-standard products
Price :
Request Quote
Name :
Straight Flute Drill
Diameter :
10mm
Flute length :
2.8mm
Overall length :
108mm
Suitable For :
Alloy steel
Type :
Customized
Description

AMG's hard alloy internally cooled straight groove drill bit is a high-performance hard alloy cutting tool designed specifically for precision mold processing. This drill bit is specifically designed to meet the requirements of high aspect ratio and high-precision hole machining.


Made of ultra-fine solid hard alloy (HM), this drill bit has excellent wear resistance, anti chipping performance, and thermal stability.


This drill bit is widely used in high-end mold manufacturing, including plastic molds, stamping molds, and other precision machining fields, and can provide excellent machining effects and high-quality hole machining accuracy.



Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining

Specification Table

Item Parameter
Product Model D7.41×L23.8×D10×L105
Tool Type Solid HM Internal Coolant Straight Flute Drill
Material Ultra-fine grain solid carbide (HM)
Cooling Method Internal coolant channel design
Suitable Materials Mold steel, stainless steel, tool steel, etc.


Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining


Internal Coolant Straight Flute Carbide Drill For Precision Deep Hole Machining

Applications

This drill is ideal for high-precision drilling in mold manufacturing, such as guide pin holes, ejector pin holes, and cooling water channels. It is especially suitable for applications requiring excellent surface finish and dimensional stability.


Product Advantages

  • High Guidance Design: Ensures hole verticality and precision for critical mold sections.

  • Excellent Thermal Stability: Internal cooling system effectively reduces thermal wear.

  • Long Tool Life: Premium carbide material combined with reinforced cutting edge treatment significantly extends tool service life.

  • Material Compatibility: Designed for optimal performance on various mold steels with hardness up to HRC 50.


Customer Purchasing Guide

When selecting a solid HM internal coolant straight flute drill for precision mold applications, customers should consider the following key factors:

  • Size & Specification Match: Choose the appropriate drill diameter and effective flute length based on hole size and depth.

  • Coolant System Compatibility: Ensure the machine tool supports internal coolant delivery.

  • Material Compatibility: Use drills suited for mold steels such as H13, SKD11, and similar materials.

  • Precision Requirements: Select tools with excellent guidance and optimized chip evacuation, especially important in deep hole drilling.

  • Hole accuracy requirements: If high requirements are placed on hole accuracy and surface quality, choose drill bits with high-precision control.
