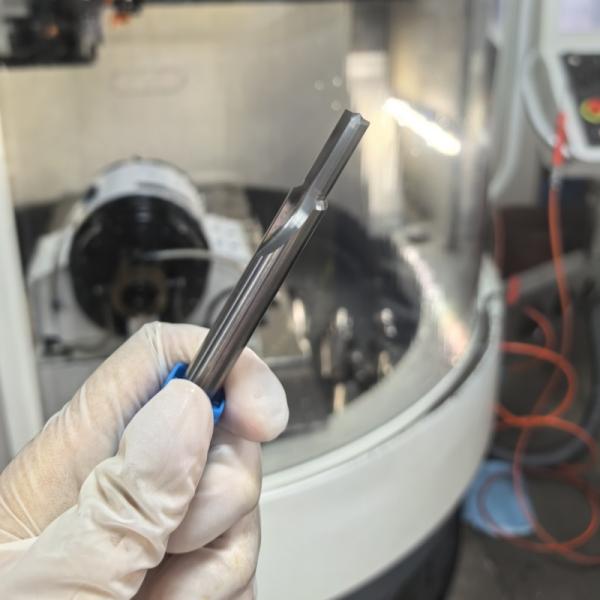

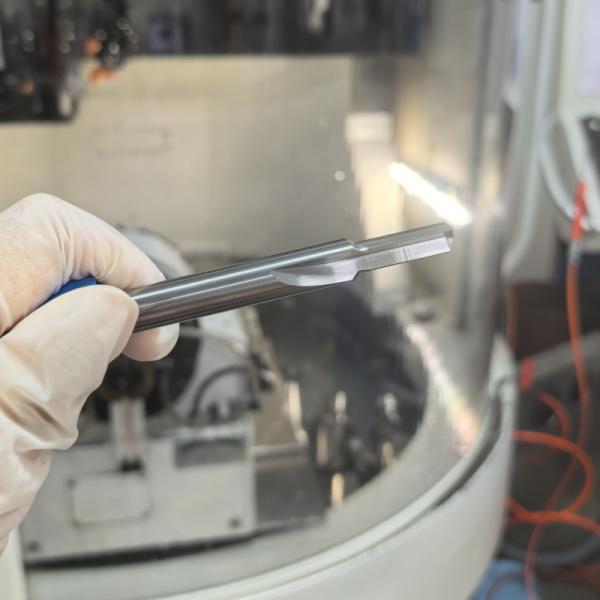

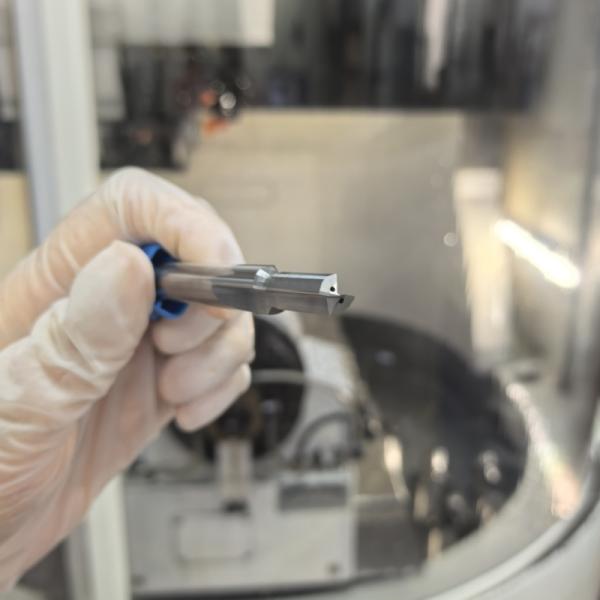

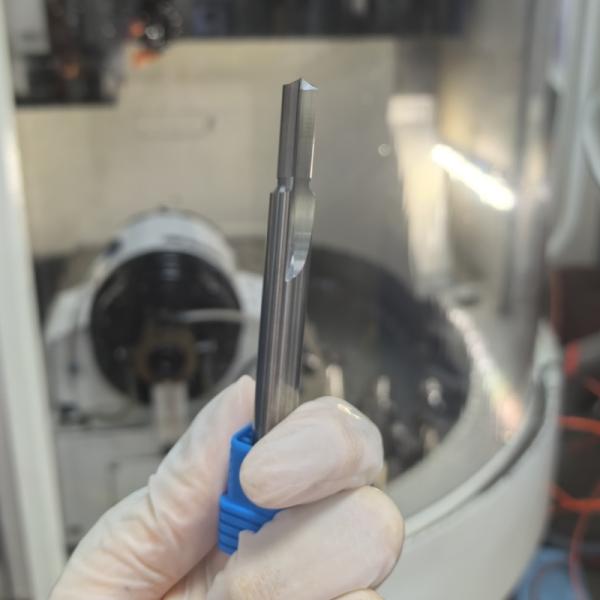

AMG Solid Carbide Internal Cooling Straight Flute Drill - The Professional Choice for Deep Hole Drilling of Structural Components

When machining structural components, deep hole drilling is an operation with high technical difficulty and high stability requirements. AMG has specifically developed this internally cooled straight flute drill for such machining.

Made of high-quality ultra-fine grain cemented carbide and ground by high-precision equipment, it is high hardness, wear resistance, and resistance to chipping, making it suitable for long-term high-speed drilling.

The internal cooling design allows the cooling fluid to flow directly to the tool tip, significantly reducing the high temperature issues during drilling. At the same time, it can quickly flush away the chips, preventing blockages and tool jams, making deep hole machining smoother and safer.

Applications
Suitable for deep hole and blind hole drilling of structural components, including mechanical structures, mold deep cooling channels, and fixture deep holes. It meets the high-precision and high-surface-finish deep hole machining requirements of carbon steel, stainless steel, aluminum alloys, copper alloys, and other metal structural components.

Specifications

• Material: Ultra-fine grain solid carbide (HM)

• Cooling: Coolant-Through

• Flute Type: Straight Flute

• Diameter Range: Φ3mm – Φ12mm (customizable)

• Cutting Length: 6D / 10D / 15D / 20D (customizable)

• Coating: TiAlN / DLC / Uncoated options available

Working principle

This internal cooling drill through an internal cooling channel to directly introduce high-pressure coolant into the cutting area, removing the heat generated during machining quickly , reducing thermal deformation. The straight flute design provides effective guidance, enhancing chip evacuation efficiency, preventing chip accumulation from causing tool jamming, ensuring drilling continuity and smoothness, and reducing vibration.

Product advantages

1.Efficient cooling + chip removal system, slove the heat accumulation issue in deep hole machining

2. High drilling accuracy, keep straightness and consistency in hole diameter

3.harp blade, fast and smooth cutting, crafted with AMG precision grinding technology

4.Suitable for batch deep-hole machining of structural parts, with high machining efficiency and low failure rate

5.Long service life, reduced tool change frequency, and improved overall production line efficiency

6.Supports OEM customization, flexibly meeting different material and working condition requirements

【Customer Selection Guide】
When selecting a solid carbide coolant-through straight flute drill, customers should choose the appropriate specifications based on the material (such as stainless steel, carbon steel, copper alloys, etc.), hole depth, hole diameter, and machine coolant pressure.

1. For deep holes exceeding 10 times the diameter, it is recommended to choose a longer cutting length design to ensure smooth chip evacuation.
2. When machining high-hardness or stainless steel materials, we recommend to select TiAlN coating to enhance wear resistance.
3. When machining aluminum alloys or materials prone to adhesion, customer select a DLC coating or an uncoated option to reduce the risk of chip sticking.
