Specifications
Brand Name :
AMG
Model Number :
Standard/Customized
Certification :
ISO9001
Place of Origin :
China
MOQ :
3
Delivery Time :
3-7 days for standard products/7-10 days for non-standard products
Price :
Request Quote
Material :
Carbide
Type :
Twist Drill Bit,Core Drill Bit,Various,taper drill bit,Glass Drill Bits
Product name :
Deep Hole Drill
Coating :
Uncoated
Hrc :
45/50/55/60,55/60/
Description

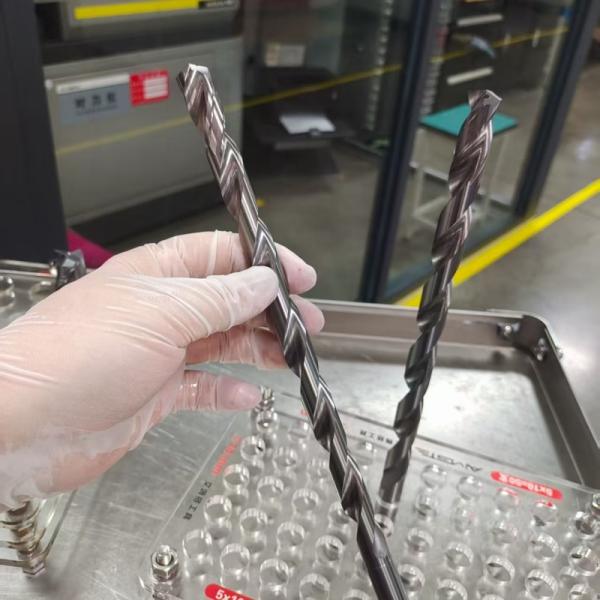

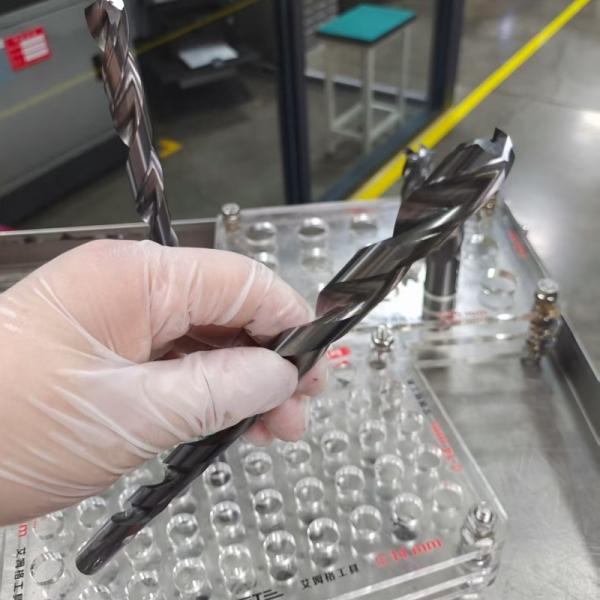

AMG Solid HM Coolant-Through Deep Hole Drill is a high-performance solid carbide drilling tool specially designed for deep hole machining in aluminum alloys and other non-ferrous metals.

Made from ultra-fine grain solid carbide (HM), it offers exceptional strength, wear resistance, and fracture toughness. The integrated internal coolant channel design enables efficient chip evacuation and heat dissipation, improving drilling stability and hole quality in deep-hole operations.


This tool is particularly suitable for deep hole drilling above 5D in aluminum, making it ideal for new energy vehicle components, 3C electronic housings, and aerospace structures such as through holes, blind holes, and heat dissipation passages.


Applications

Suitable for deep-hole drilling in soft metals such as aluminum alloy, and copper alloy. Widely used in:

  • Conductive holes in EV battery housings

  • Internal cooling channels in aluminum extrusions

  • Screw holes in mobile phone or laptop structural parts

  • Cooling or positioning holes in precision molds

Specification Table

Item Range / Description
Material Ultra-fine grain solid carbide (HM)
Coating Options Uncoated / DLC / AlCrN (customizable)
Drilling Depth Ratio 5D / 8D / 10D / 15D / 20D / 30D (available options)
Cutting Diameter Φ1.0mm – Φ12.0mm
Shank Diameter Φ3mm / Φ4mm / Φ6mm / Φ8mm / Φ10mm
Overall Length 50mm – 200mm
Coolant Channel Twin straight-through internal coolant design; compatible with water- or oil-based coolants
Tolerance Class H7 or custom tolerances available


High Rigidity Solid Carbide Drill Bit Coolant Through Deep Hole Drill For Aluminum

Working Principle

The AMG solid HM coolant-through deep hole drill take internal coolant channels to deliver cutting fluid directly to the drill tip, ensuring rapid heat removal and efficient chip evacuation. The solid carbide rovides excellent vibration resistance and rigidity, maintaining drilling accuracy and smooth hole walls even at long aspect ratios. The option for uncoated or DLC-coated versions ensures adaptability for different aluminum types and cutting conditions, with superior anti-adhesion and wear performance.


High Rigidity Solid Carbide Drill Bit Coolant Through Deep Hole Drill For Aluminum

Advantages

  • Efficient Cooling: Internal coolant channels quickly dissipate heat and prevent chip packing

  • Stable Accuracy: Solid construction offers high rigidity and consistent hole positioning

  • Solid Carbide Body: High rigidity and breakage resistance

  • Optimized for Aluminum: Excellent chip evacuation and anti-adhesion performance

  • Multiple Depth Options: Meets various deep-hole machining requirements

  • AMG Customer Support: Fast non-standard design is based on customer drawings
