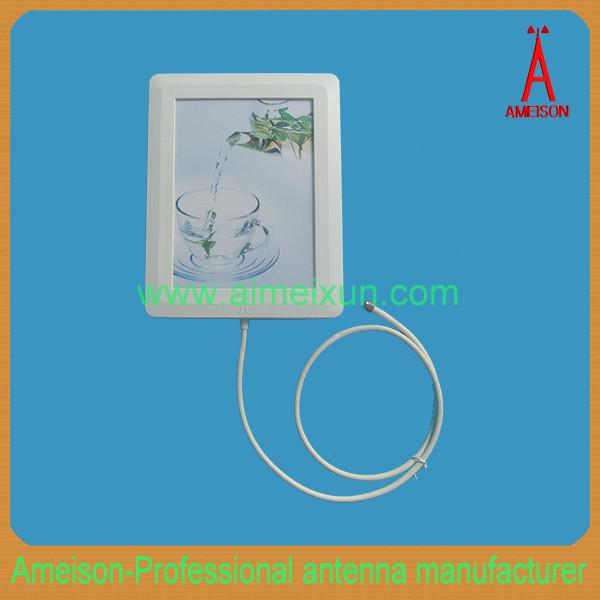

Outdoor/Indoor 2.4GHz 14dBi Directional Wifi WLAN Wall Mount Panel Antenna
Outdoor/Indoor 2.4GHz 14dBi Directional Wifi WLAN Wall Mount Panel Antenna
Outdoor/Indoor 2.4GHz 14dBi Directional Wifi WLAN Wall Mount Panel Antenna
Outdoor/Indoor 2.4GHz 14dBi Directional Wifi WLAN Wall Mount Panel Antenna
Outdoor/Indoor 2.4GHz 14dBi Directional Wifi WLAN Wall Mount Panel Antenna
Outdoor/Indoor 2.4GHz 14dBi Directional Wifi WLAN Wall Mount Panel Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-2400-14F
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400-2483
Bandwidth（MHz） :
83
Gain（dBi） :
14
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
RP-SMA Male or Requested
Mounting way :
Wall-hanging
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

Ameison 2.4GHz Panel Antenna
Factory price
Superior performance
Mounting kits included
Waterproof heavy-duty ABS redome

2400-2483MHz Directional Wall Mount Antenna

AMXW-2400-14F

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

2.4GHZ WLAN system

2.4GHZ ISM frequency band

WIFI communication system

AMXW-2400-14F

Electrical Specifications

Frequency range(MHz)

2400-2483

Bandwidth(MHz)

83

Gain(dBi)

14

Half-power beam width(°)

H:30 V:30

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

RP-SMA Male or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

218*173*23

Photo Dimensions(mm)

180*130

Antenna weight(kg)

0.62

Operating temperature(°c)

-40～60

Radome material

ABS

Radome color

white

Mounting way

Wall-hanging

Product tags

wifi panel antenna

,

wifi antenna panel

,

indoor panel antenna
