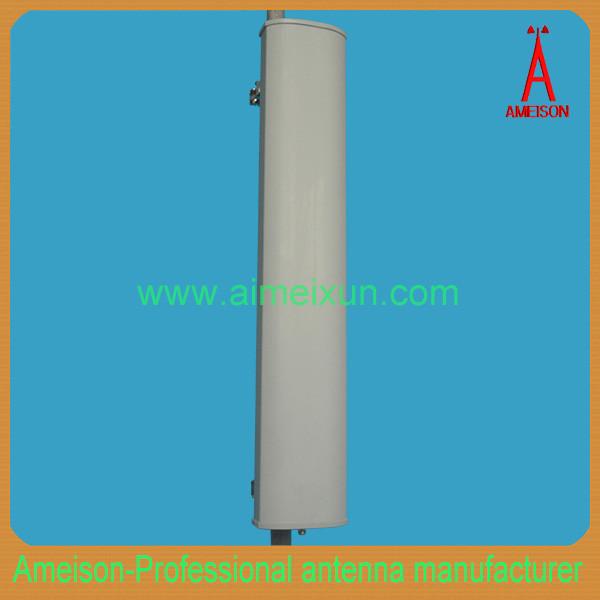

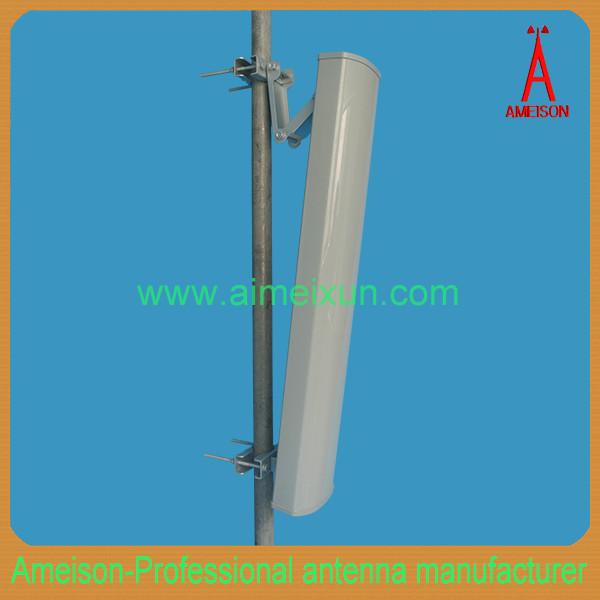

Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Ameison Outdoor and Indoor 2.4GHz 18dBi Directional Wifi WLAN Panel Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-2400-18
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400-2483
Bandwidth（MHz） :
83
Gain（dBi） :
18
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting hardware（mm） :
￠35～￠50
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

Ameison 2.4 GHz Panel Antenna

Factory price

Superior performance

Mounting kits included

Waterproof heavy-duty ABS redome

2400-2483MHz Directional Panel Antenna

AMXW-2400-18

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

WLAN system

2.4GMHZ ISM frequency

AMXW-2400-18

Electrical Specifications

Frequency range(MHz)

2400-2483

Bandwidth(MHz)

83

Gain(dBi)

18

Half-power beam width(°)

H:23 V:23

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

305*305*20

Antenna weight(kg)

1.1

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

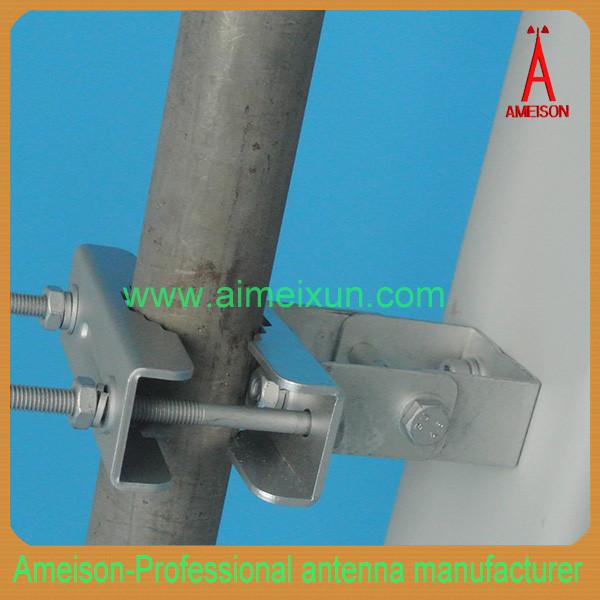

Mounting hardware(mm)

￠35～￠50
