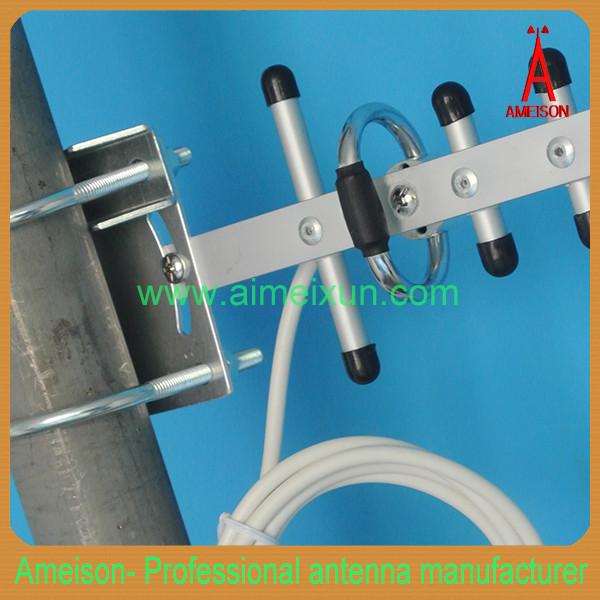

2.4GHz 16Bi Aluminium High Performance Wifi Yagi antenna Wireless WLAN antenna
2.4GHz 16Bi Aluminium High Performance Wifi Yagi antenna Wireless WLAN antenna
2.4GHz 16Bi Aluminium High Performance Wifi Yagi antenna Wireless WLAN antenna
2.4GHz 16Bi Aluminium High Performance Wifi Yagi antenna Wireless WLAN antenna
2.4GHz 16Bi Aluminium High Performance Wifi Yagi antenna Wireless WLAN antenna
2.4GHz 16Bi Aluminium High Performance Wifi Yagi antenna Wireless WLAN antenna
2.4GHz 16Bi Aluminium High Performance Wifi Yagi antenna Wireless WLAN antenna
2.4GHz 16Bi Aluminium High Performance Wifi Yagi antenna Wireless WLAN antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXY-2400-16
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2400-2483
Bandwidth（MHz） :
83
Gain（dBi） :
16
Element :
16
Half-power beam width（°） :
H：35 V：30
Polarization :
Horizontal or Vertical
Lightning protection :
DC Ground
Input connector type :
RP-SMA male or others
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

2.4 GHz 16 dBi Yagi Antenna

Factory price

Solid aluminium elements

Heavy-duty aluminium boom

Included Mounting kits

2400-2483MHz Directional Yagi Antenna

AMXY-2400-16

Feature:

High gain

Aluminum alloy framework

Full day working

Optimized dimension

Mounting way can be Vertical or Horizontal

Application:

2.4GHz WLAN system

Point-to-point,point-to-multipoint system

Wireless bridging,client termination antenna

AMXY-2400-16

Electrical Specifications

Frequency range(MHz)

2400-2483

Bandwidth(MHz)

83

Gain(dBi)

16

Element

16

Half-power beam width(°)

H:35 V:30

Front-to-back ratio(dB)

≥16

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Horizontal or Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

RP-SMA male or others

Mechanical Specifications

Dimensions(mm)

520*70*44

Cable length(m)

1

Antenna weight(kg)

0.33

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Clamp

U-shape

Mounting hardware(mm)

Φ35～Φ50
