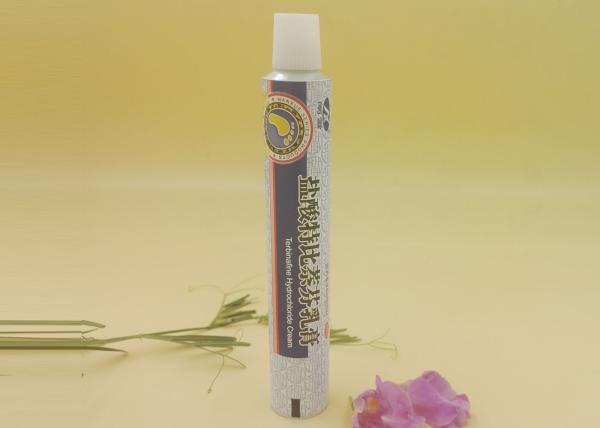

Printed 50g Pharma Squeeze Tube Containers Metal Material PPG End Latex
Printed 50g Pharma Squeeze Tube Containers Metal Material PPG End Latex
Specifications
Brand Name :
Xinji
Model Number :
Dia 13.5mm - 40mm
Certification :
ISO, CFDA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 millions pcs per year
Delivery Time :
30 days
Packaging Details :
Packed in strong carton,suitable for long distance ocean transportation.
Aluminum :
> 99.7% purity
Color :
Up to 6 colors
Name :
aluminum collapsible pharma tube
Capacity :
3ml - 200ml
Nozzle :
can customize
Diameter :
13.5mm - 40mm
Description

Printed 50g Pharma Tube Aluminum Collapsible Pharma Tube for Medicine Packaging

Quick Details:


1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum＞99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.

Company Brief Introduction:

Our factory now has 8 production lines in total , including 3 European lines (2 from PSG and 1 from Technopack) , with annual production capacity 300 million aluminum tubes. We are the TOP3 manufacturer in Collapsible Aluminum Tube filed in China.

The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.

Our Aluminum tubes are made of high quality aluminum for tube and high quality PP for cap. All materials are new and professional for pharmaceutical package use. We never use re-used materials. Inside the tube, it is coated with a layer of Epoxy phenol-formaldehyde resin. This resin is a stable layer to separate cream/ointment contacting aluminum directly.

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter		 Tolerance of Diameter
Length		 Tolerance of Length
Nozzle		 Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1		 60


±0.5		 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0		 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
