Specifications
Brand Name :
Xinji
Model Number :
Dia 13.5mm - 40mm
Certification :
ISO, CFDA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 millions pcs per year
Delivery Time :
30 days
Packaging Details :
Packed in strong carton,suitable for long distance ocean transportation.
Aluminum :
> 99.7% purity
Color :
Up to 6 colors
Name :
collapsible pharma tube
Capacity :
3ml - 200ml
Usage :
Pharmaceutical packaging tube
Certificate :
ISO, CFDA
Description

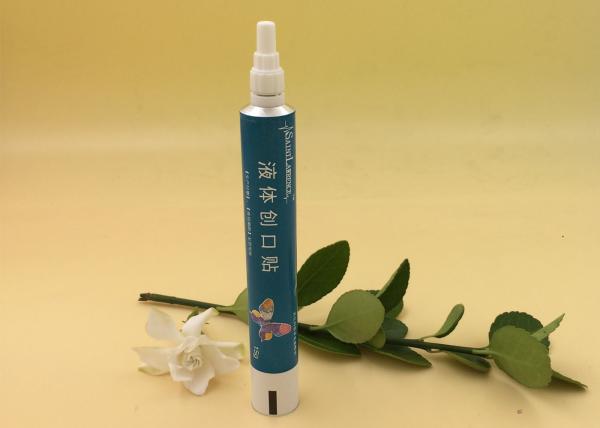

Collapsible Pharma Tube / Collapsible Aluminum Pharma Packaging Tube 3ml - 200ml

Quick Details:

1. In our factory,we have professional quality control personnel in every production department. Their job is to check the products quality in every step of the processes.
2. Skillful workers take care of every detail during producing and packaging process.
3. Moreover, our salers will always be responsible for the quality and details, they need to pay great attention for his/her production instead of clients.

Aluminum Slugs Aluminum>99.7% pure.
Internal Lacquer Type-Epoxy Phenolic Resin.
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the end Optional
Color Ink up to 6 colors, Supplier-Shanghai DIC.
CAP Color-white/red/blue/yellow; material-HPPE.
Manufacturing Environment 100000-ton cleaning production packing workshop.
Equipment Germany PSG fully automatic production line.
The standard of Inspection in accordance with British Standard BS2006-86.

Company Brief Introduction:

The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.

Our company Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province, established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.

Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.

British Standard (BS2006-86):

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5

FAQ:


1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China, located in central China with nearly 40 years.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
