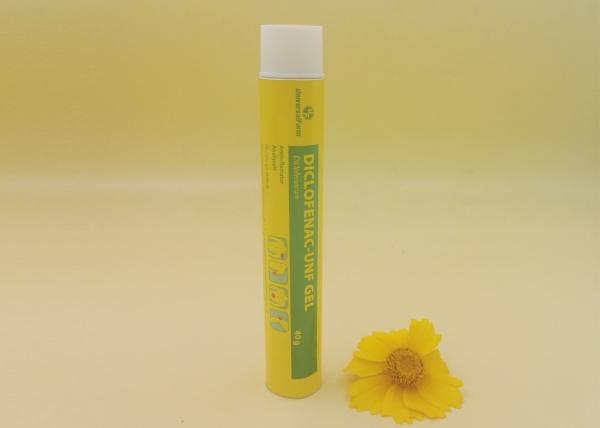

BS Standard Medicine Tube , Aluminum Pharmaceutical Metal Squeeze Tubes
BS Standard Medicine Tube , Aluminum Pharmaceutical Metal Squeeze Tubes
Specifications
Brand Name :
Xinji
Model Number :
Dia 13.5mm - 40mm
Certification :
ISO, CFDA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 millions pcs per year
Delivery Time :
30 days
Packaging Details :
Packed in strong carton,suitable for long distance ocean transportation.
Aluminum :
> 99.7% purity
Color :
Up to 6 colors
Name :
pharmaceutical packaging tube
Volume :
3ml - 200ml
Sample :
Free
Factory Direct :
YES
Description

BS Standard Medicine Packaging Pharma Tube / Pharmaceutical Packaging Tube

Quick Details:

Aluminum Slugs Aluminum＞99.7% pure.
Internal Lacquer Type-Epoxy Phenolic Resin.
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the end Optional
Color Ink up to 6 colors, Supplier-Shanghai DIC.
CAP Color-white/red/blue/yellow; material-HPPE.
Manufacturing Environment 100000-ton cleaning production packing workshop.
Equipment Germany PSG fully automatic production line.
The standard of Inspection in accordance with British Standard BS2006-86.

Diameter 13.5,16,19,22,25,28,30,32,35,38,40 mm
Volume 3ML-200ML
Length Customized
Body Custom printed
Cap Customized or provided by us
Printing offset printing
Brand OEM ODM Customized

British Standard (BS2006-86):

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter		 Tolerance of Diameter
Length		 Tolerance of Length
Nozzle		 Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1		 60


±0.5		 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0		 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5

Company Information
1. Nearly 40 years manufacturing experience
2. Professional Production line , QC staff to grantee the quality of products
3. Supplying tens of countries for over 120 distributors and Pharmaceutical factories
4. Production ability = 300million /Year
5. Trained sales staff: 24 hours quick response

FAQ:


1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China, located in central China with nearly 40 years.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
