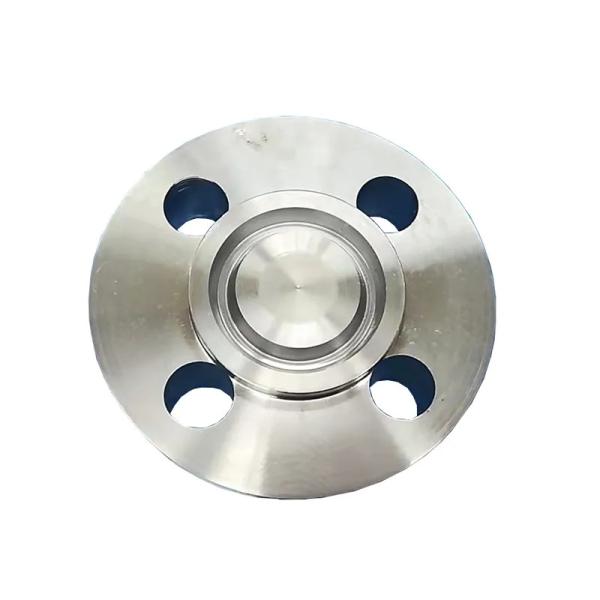

1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
Specifications
steel number :
1.8956
standard :
en10219
type :
so flange
Material :
s460nlh
Description
1.8956 EN10219 Standard S460NLH Slip On Plate Flanges for Cold Formed Structural Hollow Flange
Product Specifications
Grade S460NLH
Number 1.8956
Classification Structural steel
Standard EN 10210-1: 2006 Hot finished structural hollow sections of non-alloy and fine grain steels. Technical delivery requirements
EN 10219-1: 2006 Cold formed welded structural hollow sections of non-alloy and fine grain steels. Technical delivery requirements
Chemical Composition
CEV < 0.53 / 0.55 for thickness 16 / 65 mm
Element Content (%)
C max 0.22
Si max 0.6
Mn 1 - 1.7
Ni max 0.8
P max 0.03
S max 0.025
Cr max 0.3
Mo max 0.1
V max 0.2
N max 0.025
Nb max 0.05
Ti max 0.03
Al max 0.02
Cu max 0.7
Mechanical Properties
Property Value Nominal Thickness (mm)
Rm - Tensile Strength (MPa) 540-720 to 65
ReH - Minimum Yield Strength (MPa) 460 to 16
440 16 - 40
430 40 - 65
KV - Impact Energy (J) 27 -50°C
A - Min. Elongation at Fracture (%) Longitudinal 17 to 65
A - Min. Elongation at Fracture (%) Transverse 15 to 65
1.8956 EN10219 Standard S460NLH Slip On Plate Flange for Structural Applications
