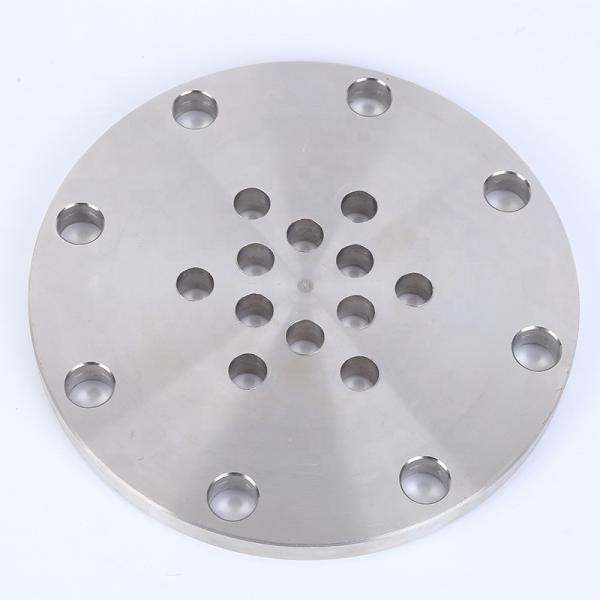

X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
Specifications
Steel Number :
1.4406
Type :
Stainless Steel flanges
Standard :
EN 10222-5
Material :
X2CrNiMoN17-11-2
Description
X2CrNiMoN17-11-2 WN Flanges - EN 10222-5 Large Dimension ASME B16.5 Stainless Steel 1.4406 Forged Flange
Material Specifications
Grade X2CrNiMoN17-11-2
Number 1.4406
Classification Austenitic stainless steel
Density 8 g/cm³
Applicable Standards
  • EN 10088-2:2005 - Stainless steels - Technical delivery conditions for sheet/plate and strip
  • EN 10088-3:2005 - Stainless steels - Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products
  • EN 10028-7:2007 - Flat products made of steels for pressure purposes - Stainless steels
  • EN 10222-5:2000 - Steel forgings for pressure purposes - Martensitic, austenitic and austenitic-ferritic stainless steels
  • EN 10272:2007 - Stainless steel bars for pressure purposes
  • EN 10250-4:2000 - Open steel die forgings for general engineering purposes - Stainless steels
  • EN 10088-1:2005 - Stainless steels - List of stainless steels
  • EN 10088-5:2009 - Stainless steels - Technical delivery conditions for bars, rods, wire, sections and bright products for construction purposes
  • EN 10088-4:2009 - Stainless steels - Technical delivery conditions for sheet/plate and strip for construction purposes
X2CrNiMoN17-11-2 Stainless Steel Slip on Plate Flange EN 10222-5 Forged Flange 1.4406
Chemical Composition (%) - EN 10088-2-2005
Element Content
C max 0.03
Si max 1
Mn max 2
Ni 10 - 12.5
P max 0.045
S max 0.015
Cr 16.5 - 18.5
Mo 2 - 2.5
N 0.12 - 0.22
Particular ranges of sulphur content may provide improvement of particular properties. For machinability a controlled sulphur content of 0.015% to 0.030% is recommended and permitted. For weldability, a controlled sulphur content of 0.008% to 0.030% is recommended and permitted. For polishability, a controlled sulphur content of 0.015% max is recommended.
Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast.
Mechanical Properties
Rm - Tensile strength (MPa) (+A) 580-800
Rp0.2 - 0.2% proof strength (MPa) (+A) 280-315
KV - Impact energy (J) transverse, (+A)
+20°: 60
-196°: 60
KV - Impact energy (J) longitud., (+A)
+20°: 100
A - Min. elongation at fracture (%) (+A) 30-40
A - Min. elongation at fracture (%) longitud., (+AT) 45
Brinell hardness (HB): (+A) 250
Material Properties
Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes
Steel shall not be applied at a metal temperature lower than -270°C
International Equivalent Grades
EU EN USA Japan JIS France AFNOR England BS
X2CrNiMoN17-11-2 316LN SUS316LN Z3CND17-11Az 316S61
