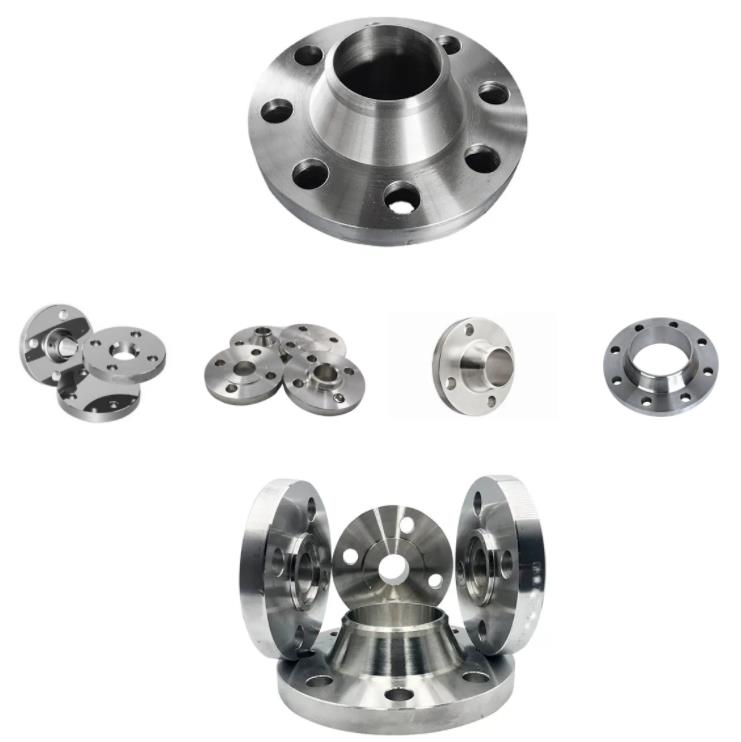

X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
Specifications
China Material :
X2CrNiMo17-12-2
MOQ :
1 pcs
Price :
0.3 usd/pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Supply Ability :
10000 pcs in stock
Delivery Time :
5-8 working days
Packaging Details :
standard exported packages
Standard :
EN1092-1 Type 01
Material :
1.4404
Name :
Steel Plate Flange
Description
Steel 1.4404 Type 01 EN1092-1 Steel Plate Flange X2CrNiMo17-12-2
Product Overview

Steel 1.4404 Type 01 EN1092-1 Plate flange made from austenitic stainless steel grade X2CrNiMo17-12-2.

X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
Material Specifications
Grade: X2CrNiMo17-12-2
Number: 1.4404
Classification: Austenitic stainless steel
Density: 8 g/cm³
Applicable Standards
  • EN 10088-2:2005 Stainless steels - Technical delivery conditions for sheet/plate and strip
  • EN 10088-3:2005 Stainless steels - Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products
  • EN 10028-7:2007 Flat products made of steels for pressure purposes - Stainless steels
  • EN 10216-5:2014 Seamless steel tubes for pressure purposes - Stainless steel tubes
  • EN 10217-7:2005 Welded steel tubes for pressure purposes - Stainless steel tubes
  • EN 10296-2:2005 Welded circular steel tubes for mechanical and general engineering purposes - Stainless steel
  • EN 10253-3:2008 Butt-welding pipe fittings - Wrought austenitic and austenitic-ferritic stainless steels
  • EN 10253-4:2008 Butt-welding pipe fittings - Wrought austenitic and austenitic-ferritic stainless steels with inspection
  • EN 10272:2007 Stainless steel bars for pressure purposes
  • EN 10269:1999 Steels and nickel alloys for fasteners
  • EN 10263-5:2001 Steel rod, bars and wire for cold heading and cold extrusion
  • EN 10250-4:2000 Open steel die forgings for general engineering purposes
  • EN 10297-2:2005 Seamless circular steel tubes for mechanical and general engineering purposes
  • EN 10222-5:2000 Steel forgings for pressure purposes
  • EN 10088-1:2005 Stainless steels - List of stainless steels
  • EN 10088-4:2009 Stainless steels for construction purposes
  • EN 10088-5:2009 Stainless steels for construction purposes
Chemical Composition (%) - EN 10088-2:2005

Note: Particular ranges of sulphur content may provide improvement of specific properties. For machinability: 0.015% to 0.030%; for weldability: 0.008% to 0.030%; for polishability: max 0.015%.

Element Content
C max 0.03
Si max 1
Mn max 2
Ni 10 - 13
P max 0.045
S max 0.015
Cr 16.5 - 18.5
Mo 2 - 2.5
N max 0.11
Mechanical Properties
Tensile Strength (MPa) +A 490-700
Tensile Strength (MPa) +AT 490-690
Tensile Strength (MPa) +AT+C 750-780
0.2% Proof Strength (MPa) +AT 190
0.2% Proof Strength (MPa) +A 190-235
Impact Energy (J) Transverse +A at +20°C 60
Impact Energy (J) Transverse +A at -196°C 60
Impact Energy (J) Longitudinal +A at +20°C 100
Elongation at Fracture (%) +A 30-45
Elongation at Fracture (%) Longitudinal +AT 40
Nominal Diameter (mm) 2 - 50
Reduction in Cross Section (%) 63-68
Brinell Hardness (HB) +A 215
Brinell Hardness (HB) +AT 200
Material Properties

Resistance to intergranular corrosion: in delivery condition - yes; in sensitized condition - yes.

Steel shall not be applied at metal temperatures lower than -196°C.

Equivalent Grades
Region Designation
EU EN X2CrNiMo17-12-2
USA 316L
Germany DIN X2CrNiMo17-13-2
Japan JIS SUS316, SUS316L
France AFNOR Z2CND17-12, Z3CND17-11-02, Z3CND18-12-02
England BS 316S11
Italy UNI X2CrNiMo17-12, X2CrNiMo17-17-12
China GB 00Cr17Ni14Mo2, 0Cr18Ni12Mo2Ti
Sweden SS 2348
Poland PN 00H17N13M2, 00H17N14M2
Czechia CSN 17349
Finland SFS 750
Austria ONORM X2CrNiMo17-13-2KKW
International ISO Type19
X2CrNiMo17-12-2 1.4404 EN1092-1 Type 01 Slip on Plate Flange Steel Plate Flange
