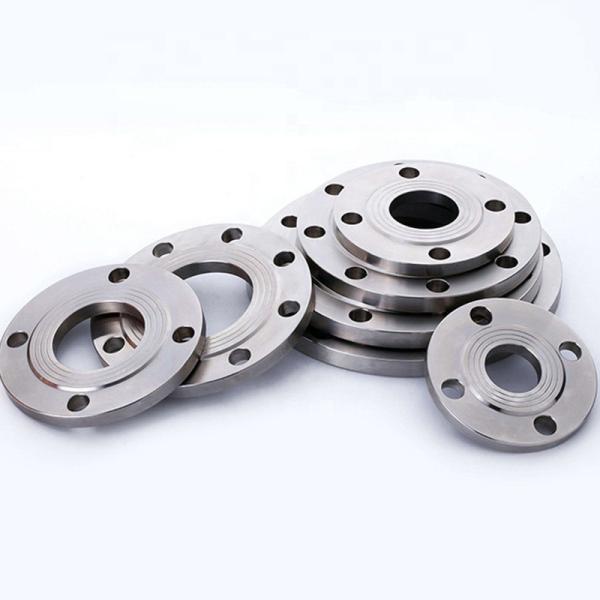

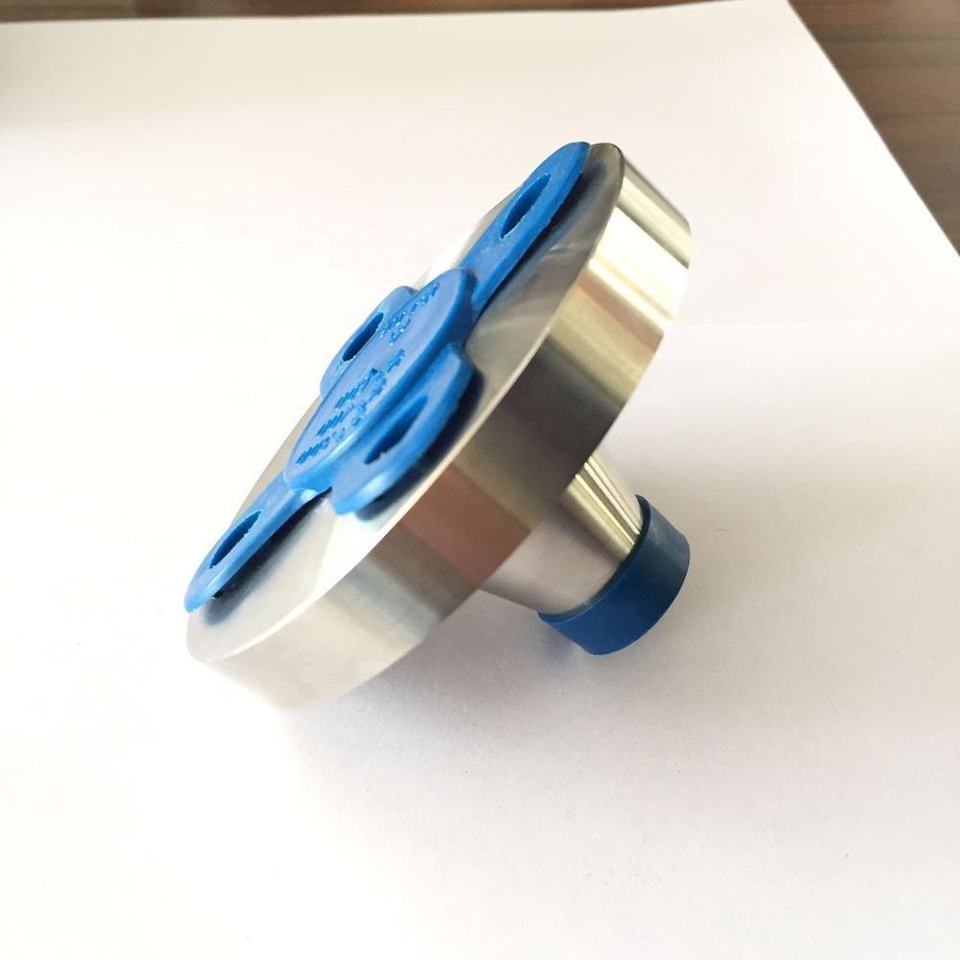

1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
Specifications
Type :
Plate flange
China Material :
X6CrNiMoTi17-12-2
Standard :
EN1092 Type 01
Material :
1.4571
MOQ :
1 pcs
Price :
0.2 usd/pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000 pcs in stock
Delivery Time :
5-8 working days
Packaging Details :
standard exported package
Description
1.4571 Steel Plate Flange EN1092-1 TYPE 01 X6CrNiMoTi17-12-2 Material
Product Overview

1.4571 Steel Plate flange EN1092-1 TYPE 01 Steel Material: X6CrNiMoTi17-12-2

1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
Grade: X6CrNiMoTi17-12-2
Number: 1.4571
Classification: Austenitic stainless steel
Density: 8 g/cm³
Applicable Standards
  • EN 10088-2:2005 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes
  • EN 10088-3:2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products
  • EN 10028-7:2007 Flat products made of steels for pressure purposes. Stainless steels
  • EN 10222-5:2000 Steel forgings for pressure purposes. Martensitic, austenitic and austenitic-ferritic stainless steels
  • EN 10216-5:2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Stainless steel tubes
  • EN 10217-7:2005 Welded steel tubes for pressure purposes. Stainless steel tubes
  • EN 10296-2:2005 Welded circular steel tubes for mechanical and general engineering purposes. Stainless steel
  • EN 10253-3:2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels
  • EN 10253-4:2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels
  • EN 10272:2007 Stainless steel bars for pressure purposes
  • EN 10263-5:2001 Steel rod, bars and wire for cold heading and cold extrusion. Technical delivery conditions for stainless steels
  • EN 10250-4:2000 Open steel die forgings for general engineering purposes. Stainless steels
  • EN 10297-2:2005 Seamless circular steel tubes for mechanical and general engineering purposes. Stainless steel
  • EN 10088-1:2005 Stainless steels. List of stainless steels
  • EN 10088-5:2009 Stainless steels. Technical delivery conditions for bars, rods, wire, sections and bright products
  • EN 10088-4:2009 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels
Chemical Composition

Chemical composition % of steel X6CrNiMoTi17-12-2 (1.4571): EN 10088-2-2005

Ti = 5 * C to 0.7

Particular ranges of sulphur content may provide improvement of particular properties. For machinability a controlled sulphur content of 0.015% to 0.030% is recommended and permitted. For weldability, a controlled sulphur content of 0.008% to 0.030% is recommended and permitted. For polishability, a controlled sulphur content of 0.015% max is recommended.

Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast.

Element Composition (%)
C max 0.08
Si max 1
Mn max 2
Ni 10.5 - 13.5
P max 0.045
S max 0.015
Cr 16.5 - 18.5
Mo 2 - 2.5
Ti max 0.7
Mechanical Properties
Rm - Tensile strength (MPa) (+A) 500-700
Rm - Tensile strength (MPa) (+AT) 500-730
Rm - Tensile strength (MPa) (+AT+C) 810-850
Rp0.2 - 0.2% proof strength (MPa) (+A) 200-240
Rp0.2 - 0.2% proof strength (MPa) (+AT) 190-210
KV - Impact energy (J) +20°C -196°C
Transverse, (+A) 60 60
Longitudinal, (+A) 100 -
A - Min. elongation at fracture (%) (+A) 30-40
A - Min. elongation at fracture (%) longitudinal, (+AT) 35-45
Nominal diameter (mm) 2 - 50
Z - Reduction in cross section on fracture (%) 60-65
Brinell hardness (HB): (+A) 215
Brinell hardness (HB): (+AT) 210
1.4571 Steel Plate Flange EN1092-1 Type 01 with X6CrNiMoTi17-12-2 Material
