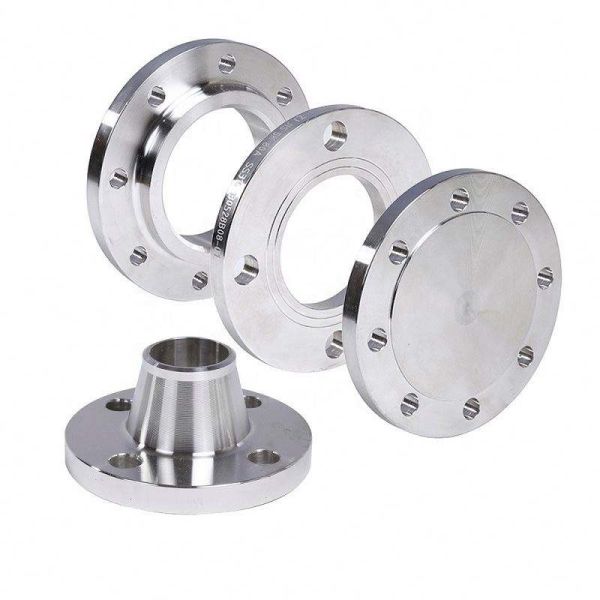

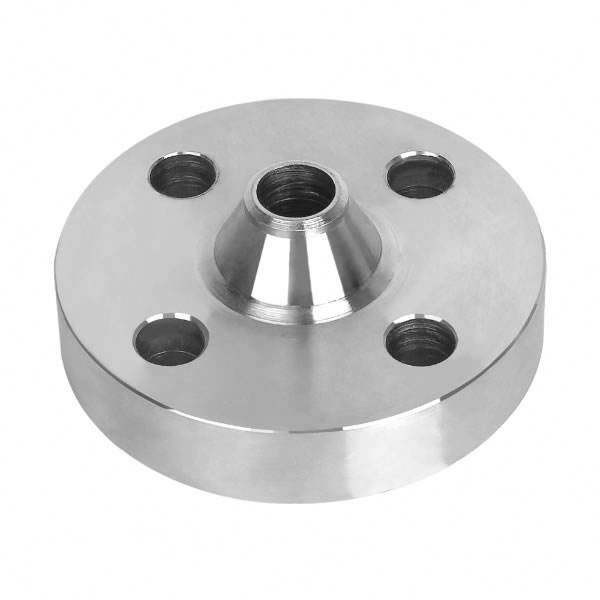

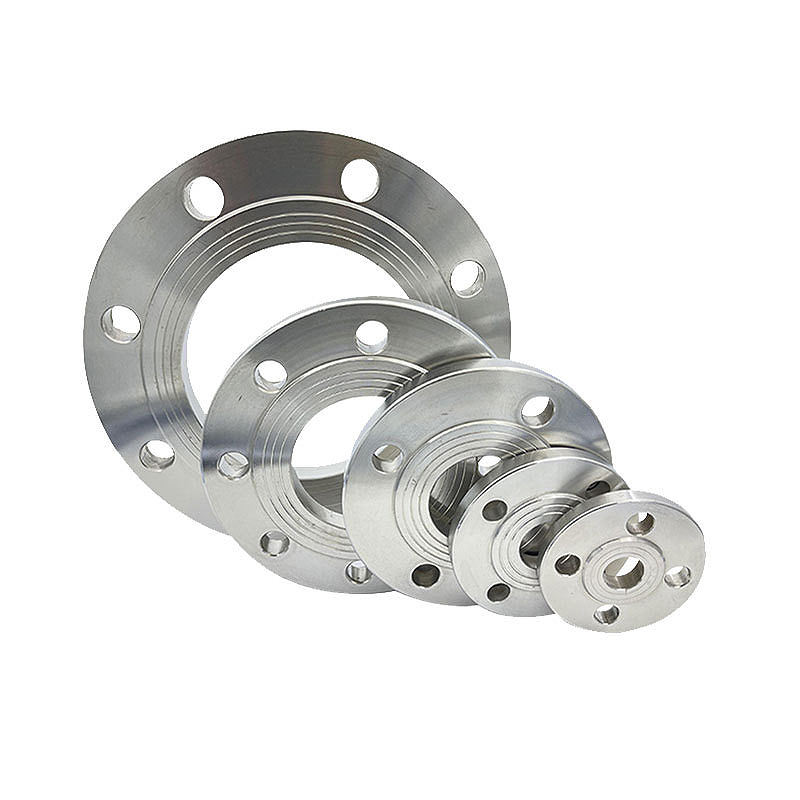

1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
Specifications
China Material :
X2CrNiMo17-12-2
MOQ :
1 pcs
Price :
0.3 usd/pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000 pcs in stock
Delivery Time :
5-8 working days
Packaging Details :
standard exported packages
Type :
loose plate flange
Standard :
EN1092-1 Type 01
Material :
1.4404
Description
1.4404 Type 37 Pressed Collar for loose plate flange X2CrNiMo17-12-2 ( 1.4404 ) Steel Loose Plate Flange
1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
Grade : X2CrNiMo17-12-2
Number: 1.4404
Classification: Austenitic stainless steel
Density: 8 g/cm ³
Standard:
EN 10088-2: 2005 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes
EN 10088-3: 2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
EN 10028-7: 2007 Flat products made of steels for pressure purposes. Stainless steels
EN 10216-5: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Stainless steel tubes
EN 10217-7: 2005 Welded steel tubes for pressure purposes. Stainless steel tubes
EN 10296-2: 2005 Welded circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
EN 10253-3: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels without specific inspection requirements
EN 10253-4: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels with specific inspection requirements
EN 10272: 2007 Stainless steel bars for pressure purposes
EN 10269: 1999 Steels and nickel alloys for fasteners with specified elevated and/or low temperature properties
EN 10263-5: 2001 Steel rod, bars and wire for cold heading and cold extrusion. Technical delivery conditions for stainless steels
EN 10250-4: 2000 Open steel die forgings for general engineering purposes. Stainless steels
EN 10297-2: 2005 Seamless circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
EN 10222-5: 2000 Steel forgings for pressure purposes. Martensitic, austenitic and austenitic-ferritic stainless steels
EN 10088-1: 2005 Stainless steels. List of stainless steels
EN 10088-4: 2009 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for construction purposes
EN 10088-5: 2009 Stainless steels. Technical delivery conditions for bars, rods, wire, sections and bright products of corrosion resisting steels for construction purposes
1.4404 Type 37 Pressed Collar for loose plate flange X2CrNiMo17-12-2 ( 1.4404 ) Steel Loose Plate Flange Chemical composition % of steel X2CrNiMo17-12-2 (1.4404): EN 10088-2-2005
Particular ranges of sulphur content may provide improvement of particular properties. For machinability a controlled sulphur content of 0.015 % to 0.030% is recommended and permitted. For weldability, a controlled sulphur content of 0.008 % to 0.030 % is recommended and permitted. For polishability, a controlled sulphur content of 0.015 % max is recommended.
Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast.
C Si Mn Ni P S Cr Mo N
max 0.03 max 1 max 2 10 - 13 max 0.045 max 0.015 16.5 - 18.5 2 - 2.5 max 0.11
1.4404 Type 37 Pressed Collar for loose plate flange X2CrNiMo17-12-2 ( 1.4404 ) Steel Loose Plate Flange Mechanical properties of steel X2CrNiMo17-12-2 (1.4404)
Rm - Tensile strength (MPa) (+A) 490-700
Rm - Tensile strength (MPa) (+AT) 490-690
Rm - Tensile strength (MPa) (+AT+C) 750-780
Rp0.2 0.2% proof strength (MPa) (+AT) 190
Rp0.2 0.2% proof strength (MPa) (+A) 190-235
KV - Impact energy (J) transverse, (+A) +20°
60		 -196°
60
KV - Impact energy (J) longitud., (+A) +20°
100
A - Min. elongation at fracture (%) (+A) 30-45
A - Min. elongation at fracture (%) longitud., (+AT) 40
Nominal diameter (mm): 2 - 50
Z - Reduction in cross section on fracture (%) 63-68
Brinell hardness (HB): (+A) 215
Brinell hardness (HB): (+AT) 200
1.4404 Type 37 Pressed Collar for loose plate flange X2CrNiMo17-12-2 ( 1.4404 ) Steel Loose Plate Flange Properties of steel X2CrNiMo17-12-2 (1.4404)
Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes
Steel shal not be applied at a metal temperature lower than -196 ° C
Equivalent grades of steel X2CrNiMo17-12-2 (1.4404)

Warning! Only for reference

EU
EN		 USA
-		 Germany
DIN,WNr		 Japan
JIS		 France
AFNOR		 England
BS		 Italy
UNI		 China
GB		 Sweden
SS		 Poland
PN		 Czechia
CSN		 Finland
SFS		 Austria
ONORM		 Inter
ISO
X2CrNiMo17-12-2
316L
X2CrNiMo17-13-2
SUS316
SUS316L
Z2CND17-12
Z3CND17-11-02
Z3CND18-12-02
316S11
X2CrNiMo17-12
X2CrNiMo17-17-12
00Cr17Ni14Mo2
0Cr18Ni12Mo2Ti
2348
00H17N13M2
00H17N14M2
17349
750
X2CrNiMo17-13-2KKW
Type19
1.4404 X2CrNiMo17-12-2 Loose Plate Flange EN1092-1 Type 01 Pressed Collar Slip On Plate Flange
