Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
DH-24-RJ45-P01
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$9.60-10.60
Type :
RJ45
Application :
Audio & Video
Gender :
male or female
Produce type :
RJ45 Ethernet
Current rating(A) :
1.5A
Protection level :
IP65/IP67
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Assembly :
Solder
Operating voltage :
1000V
Contact pin :
Copper alloy(gold-plated)
Description

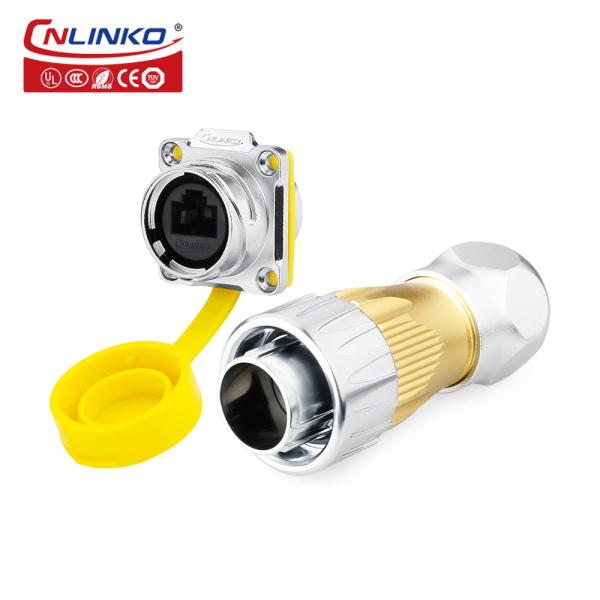

Cnlinko M24 Signal Connector Panel Mount 8 pin Metal rj45 Coupler Waterproof IP67 RJ45 Ethernet Connector

Features:

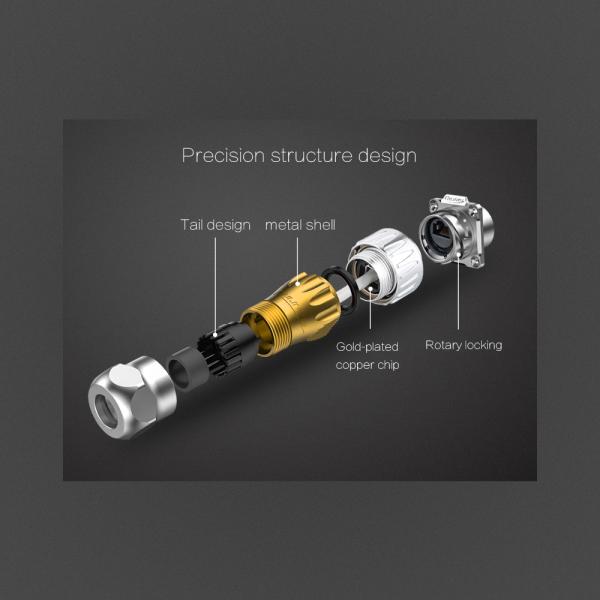

1.Three positioning, with wave spring knob, and the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.With wave spring structure,keeping elastic wave spring stranded automatically while connection.
3.With copper needle retainer, copper welding operations and install socket separated, making the products simple and convenient operated in harsh environments .
4.With outer alloy ring, making the plug and socket more stable while closed , keeping the power supply or signal transmission more stable and comparable while connection.
5.With tail jaws , to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and keeping the nuts anti-back effectively.
6. Using waterproof clip coil designing, keeping the products have better waterproof rating while closed.
7.Different core designing, the products can be widely used for signal, USB, fiber optic and power plug connection.
8. Waterproof IP65/IP67 while connection.

Product Description

Cnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 ConnectorCnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 ConnectorCnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 ConnectorCnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 ConnectorCnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 ConnectorCnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 ConnectorCnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 ConnectorCnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 ConnectorCnlinko M24 Signal Connector Panel Mount Waterproof IP68 Ethernet Pins Female Waterproof Rj45 Connector

Specifications
Specifications
Connecting mode 1/4 bayonet connecting type
Protection level IP67
Cable specification 26~24AWG
Diameter range Φ5mm ~Φ6.5mm
Contact diameter×Qty 8PIN
Current rating(A) 1.5A
Operating voltage(AC.V.rms) /
Withstand voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell Zinc Alloy
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
