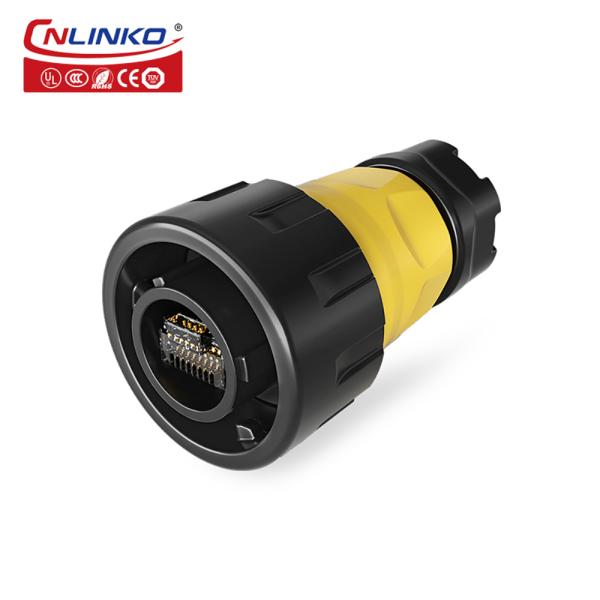

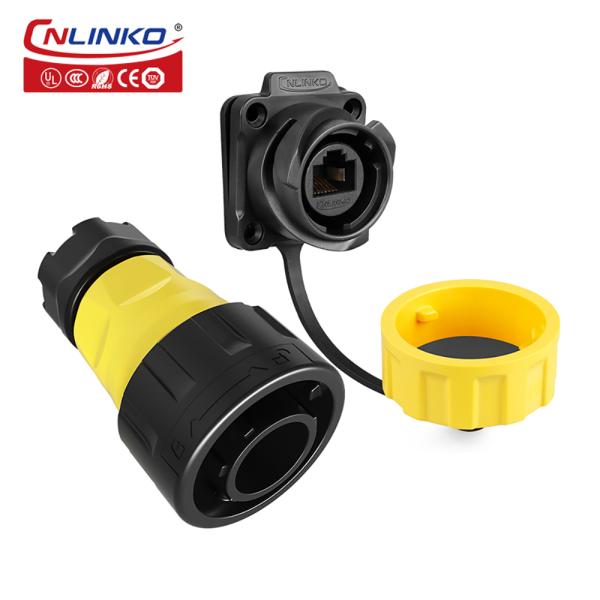

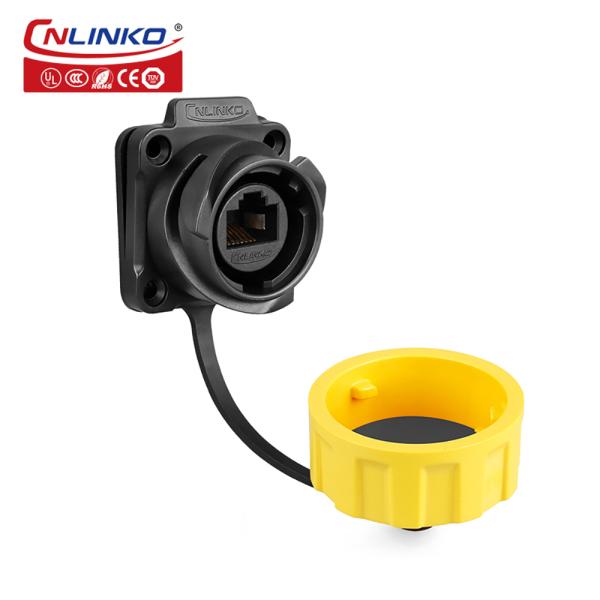

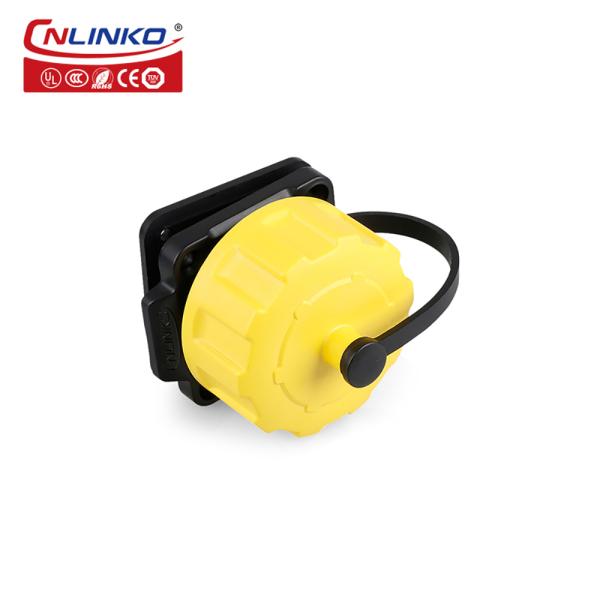

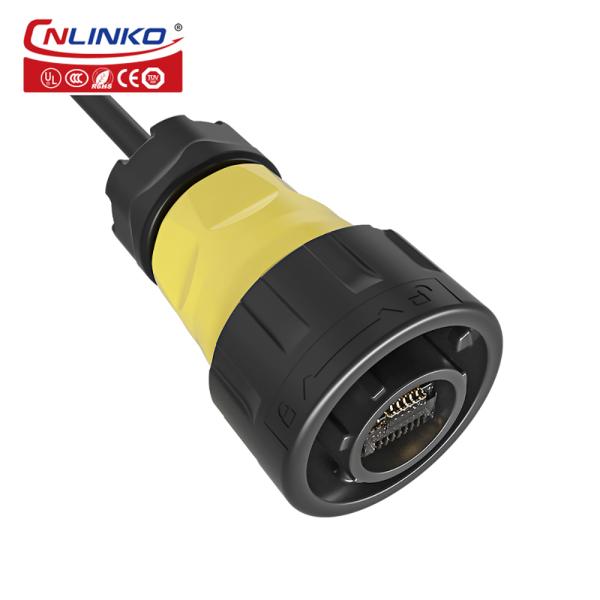

Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YM-24-C\RJ45\015\PE-42-001YM-24-J\RJ45\213\SX-42-4
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
10
Price :
$5.61-6.55
Type :
RJ45
Application :
Signal
Gender :
male and female, Female +male
Protection level :
IP65/IP67
Pin :
8pin
Connector type :
RJ45
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Package :
Carton
Description

Factory Price Cnlinko Waterproof Male Female Ethernet Connector lan RJ45 ethernet connector

Product Description

Manufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet ConnectorManufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet ConnectorManufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet ConnectorManufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet ConnectorManufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet ConnectorManufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet ConnectorManufacturer Cnlinko IP68 Male Female RJ45 Connector Waterproof RJ45 Ethernet Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 26-24AWG
Diameter range Φ5mm ~Φ6.5mm
Contact diameter×Qty 8PIN
Current rating(A) /
Temperature rise

/
Operating voltage(AC.V.rms) /
Withstanding voltage(AC.V)1min /
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
