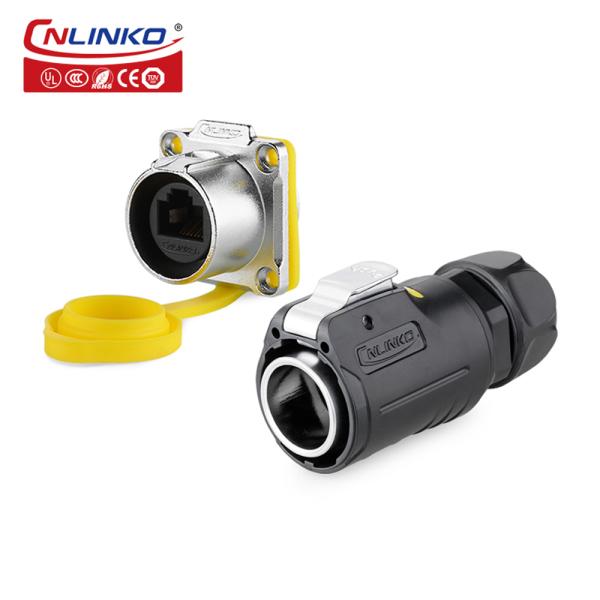

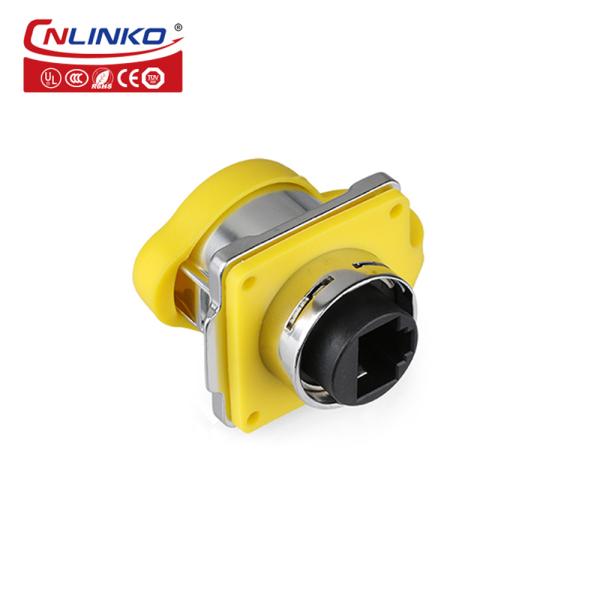

CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-24-RJ45-P01
Certification :
CE,CCC,ROHS,ISO9001,TUV,IP67
MOQ :
2
Price :
$8.46-9.46
Type :
RJ45
Application :
Audio & Video
Gender :
male plug and female socket
Connector type :
RJ45 waterproof connector
Apply for :
LED display
Waterproof level :
IP65
Description

CNLINKO LP24 RJ45 waterproof connector LED display connector IP68 waterproof rj45 connector

Features:

1. Low and stable contact resistance.
2. The seat is made of zinc alloy casing material, high frequency noise immunity and interference protection.
3. Spring snap-locking, easy to operate, safe and stable.
4. Unique patented direct-connected network port design to reduce PCB transfer and wire bonding.
5. The silicone wire clamp design is soft and extensible, effectively protecting the wire.
6. The product meets IP65/IP67 protection level when connected.

Product Description

CNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 ConnectorCNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 ConnectorCNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 ConnectorCNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 ConnectorCNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 ConnectorCNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 ConnectorCNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 ConnectorCNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 ConnectorCNLINKO LP24 RJ45 Waterproof Connector LED Display Connector IP68 Waterproof Rj45 Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.15-0.2mm2 /26-24AWG
Diameter range Φ5.5mm ~Φ7mm
Contact diameter×Qty 8PIN
Current rating(A) 1.5A
Temperature rise

/
Operating voltage(AC.V.rms) /
Withstanding voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
