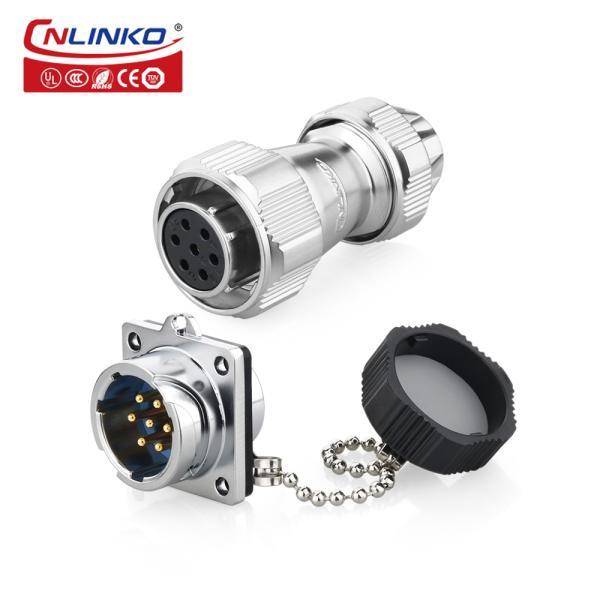

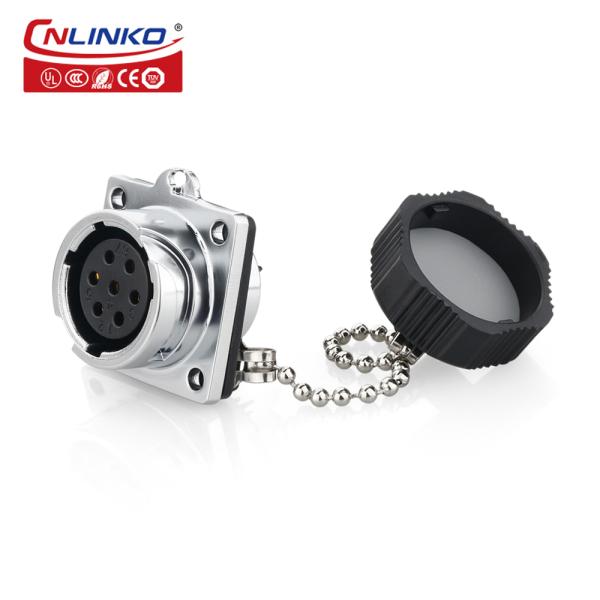

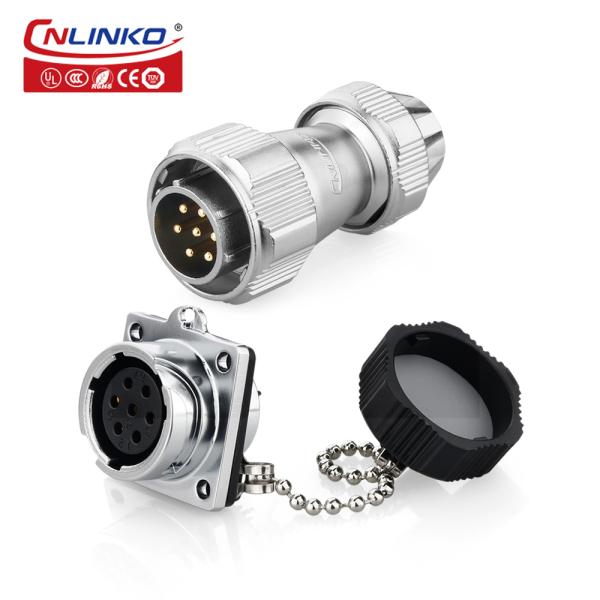

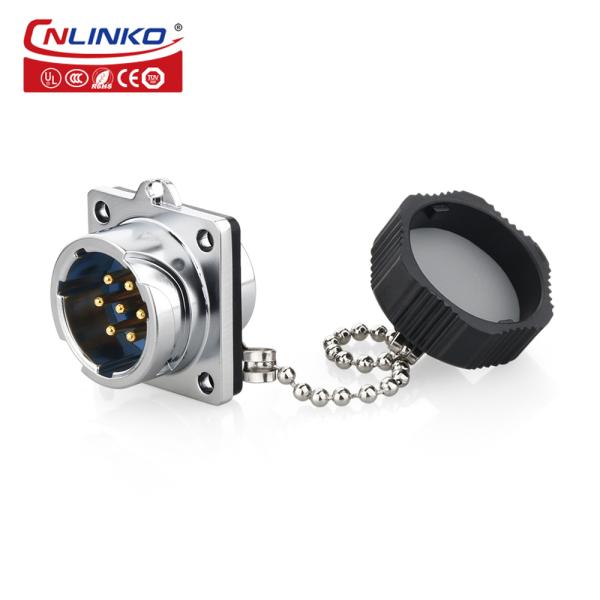

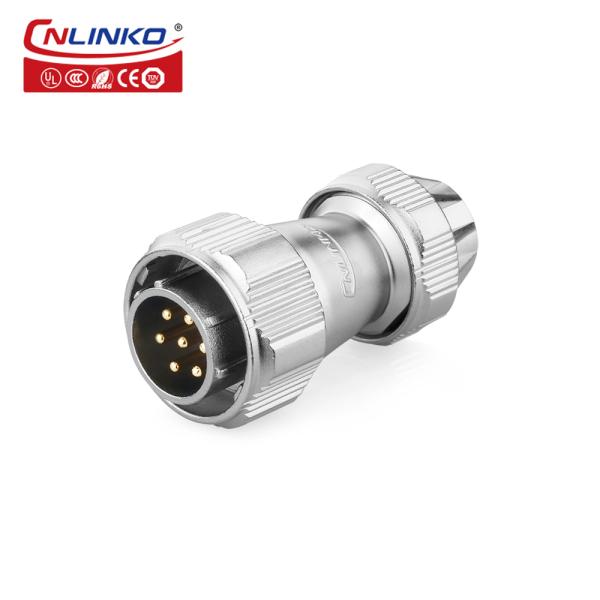

CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YZ-20-J07PE-03-001
MOQ :
10
Price :
$7.45-8.69
Type :
Signal
Application :
Audio & Video
Gender :
Male
contact diameter and number :
1.8*7
Rated Current :
10A
Operating Voltage (AC.V.RMS) :
500V
Withstanding Voltage(AC.V)1 Minute :
2500V
Protection Level :
IP65/IP67
Connecting Mode :
1/4 Bayonet Connect
Flammability Rating :
UL94-V0
Durability :
More Than 500 Times
cable specification :
1.0m㎡~1.5m㎡/18~16AWG
Copper Needles :
Copper Alloy(Gold-Plated)
Description

CNLINKO Metal Aviation Plug M20 male female Bayonet Type Socket 7 Pin 500V 10A waterproof plug and socket cable connector

Product Description

1.All zinc alloy shell,complete with electromagnetic and radio frequency interference. protection,while meeting the needs of high-end products to match.
2.Outer screw locking device a solid safety.
4.hanging dust cover design avoid matters; high safe performance,easy to operate ,
5.2-12 pin available

CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable ConnectorCNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable ConnectorCNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable ConnectorCNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable ConnectorCNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable ConnectorCNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable ConnectorCNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable ConnectorCNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable ConnectorCNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable ConnectorCNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector

More Hot Products

CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 1.0~1.5mm2 /18~16AWG
Diameter range Φ7.0mm ~Φ10.0mm
Contact diameter×Qty 7 Pin
Current rating(A) 10A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min /
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
