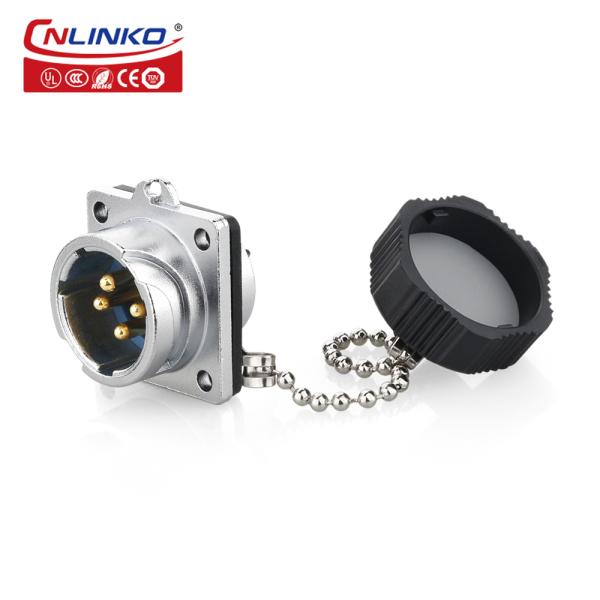

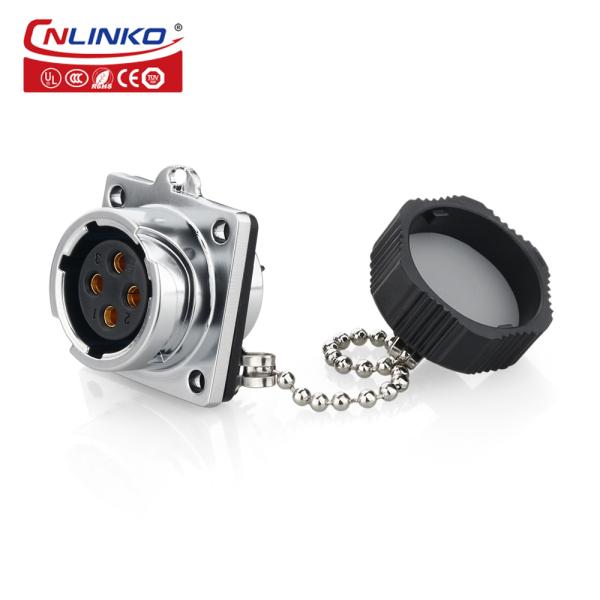

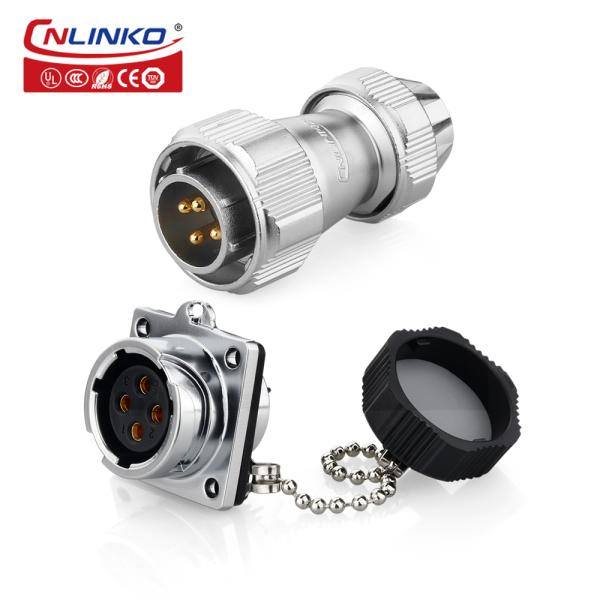

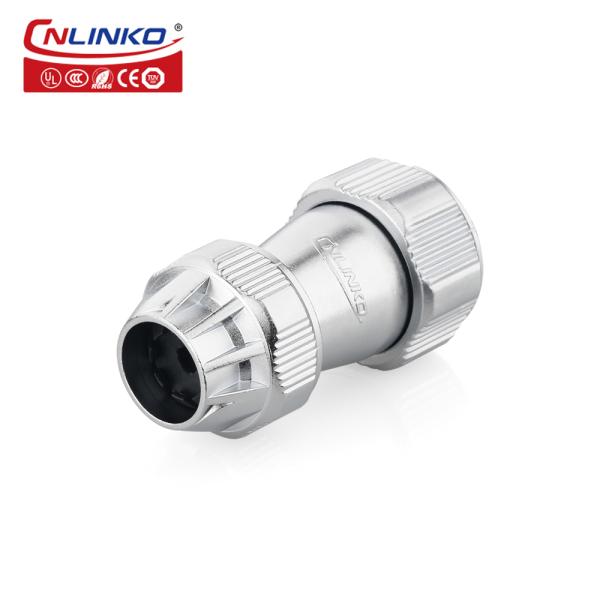

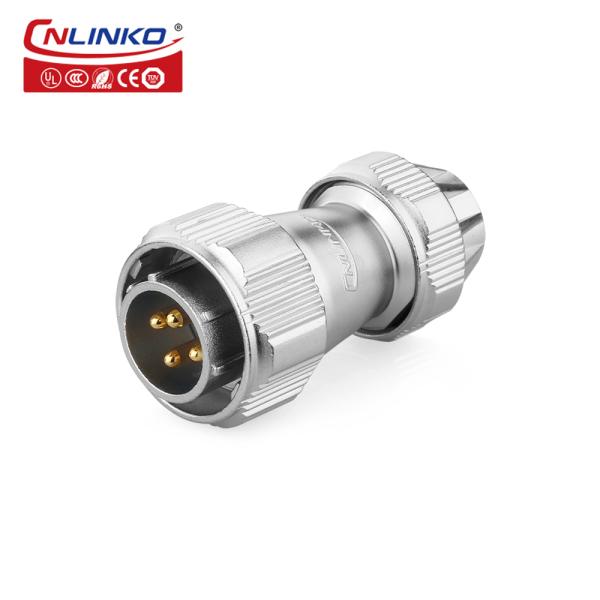

CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YZ-20-C04PE-03-001
MOQ :
10
Price :
$8.90-9.90
Type :
Powercon
Application :
Power
Gender :
Male
contact diameter and number :
2.7*4
Rated Current :
20A
Operating Voltage (AC.V.RMS) :
500V
Withstanding Voltage(AC.V)1 Minute :
2500V
Protection Level :
IP68
Connecting Mode :
1/4 Bayonet Connect
Flammability Rating :
UL94-V0
Durability :
More Than 500 Times
cable specification :
2.5m㎡~4m㎡/14~12AWG
Copper Needles :
Copper Alloy(Gold-Plated)
Description

CNLINKO M20 4 pin waterproof connector plug socket Male Female Panel mount power cable connector Rated current 20A

Product Description

CNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20ACNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20ACNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20ACNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20ACNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20ACNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20ACNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20ACNLINKO M20 4 Pin Waterproof Connector Plug Socket Male Female Panel Mount Power Cable Connector Rated Current 20A

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 2.5mm2 /14~12AWG
Diameter range Φ9.0mm ~Φ13.0mm
Contact diameter×Qty 4 Pin
Current rating(A) 20A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min /
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
