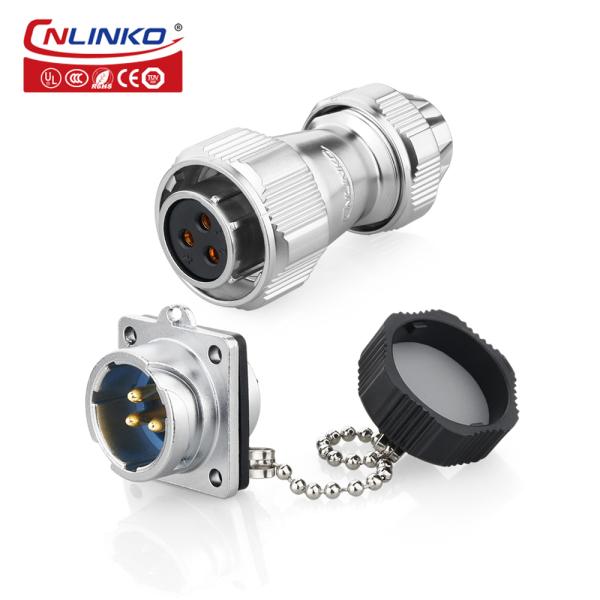

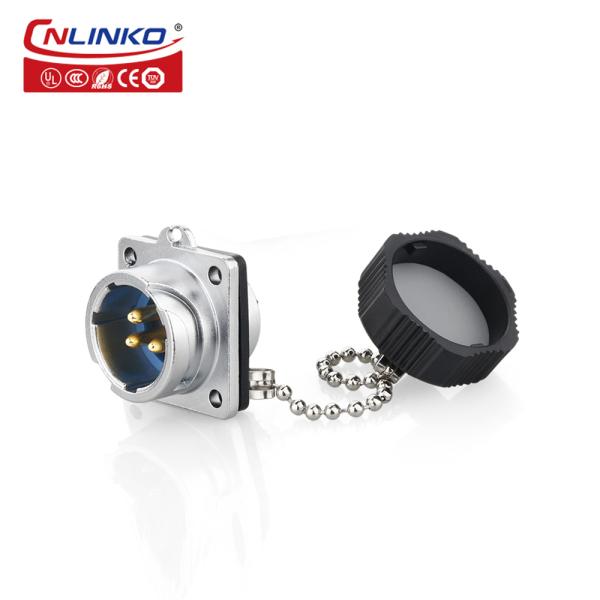

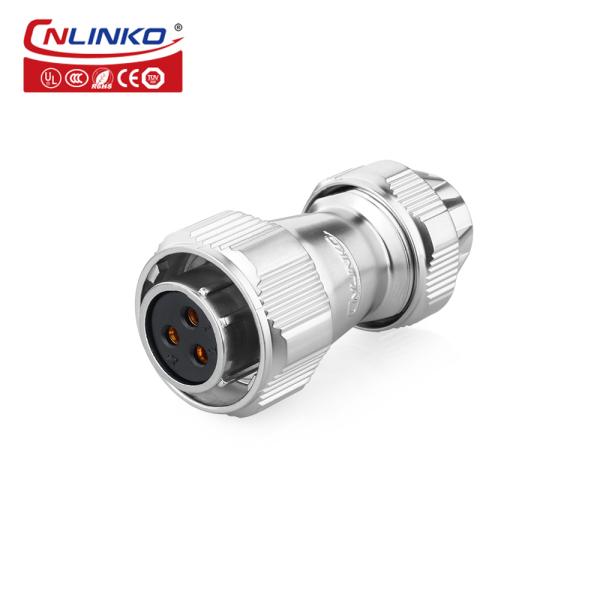

CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YZ-20-C03PE-01-001,YZ-20-J03SX-01-001
Certification :
CUL,CE,ROHS,CCC,ISO9001
MOQ :
10
Price :
$8.30-9.30
Type :
Powercon
Application :
Power
Gender :
male and female
Produce type :
splice connector
Current rating(A) :
20A
Protection level :
IP68
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Assembly :
Solder
Operating voltage :
500V
Contact pin :
Copper alloy(gold-plated)
Description

Product Description

CNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin ConnectorCNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin ConnectorCNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin ConnectorCNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin ConnectorCNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin ConnectorCNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin ConnectorCNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin ConnectorCNLINKO M20 Waterproof Circular Connector 12v Battery Plug Socket 3 Pin Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 2.5mm2 /14~12AWG
Diameter range Φ9.0mm ~Φ13.0mm
Contact diameter×Qty 3 Pin
Current rating(A) 20A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min /
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
