Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
DH-24-C03PE-23-002A
Certification :
CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$8.47-9.88
Type :
Industrial
Application :
Power
Gender :
male and female, Female +male
Protection level :
IP68
Pin :
3 Pin
Current rating(A) :
25A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
500V
Package :
Carton Box
Description

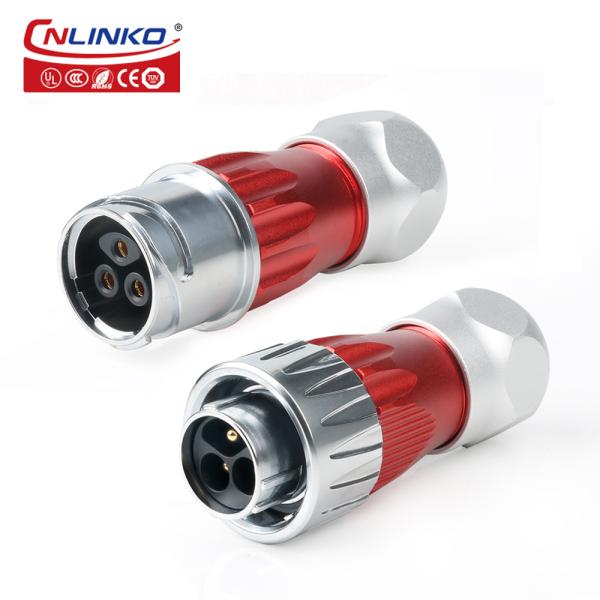

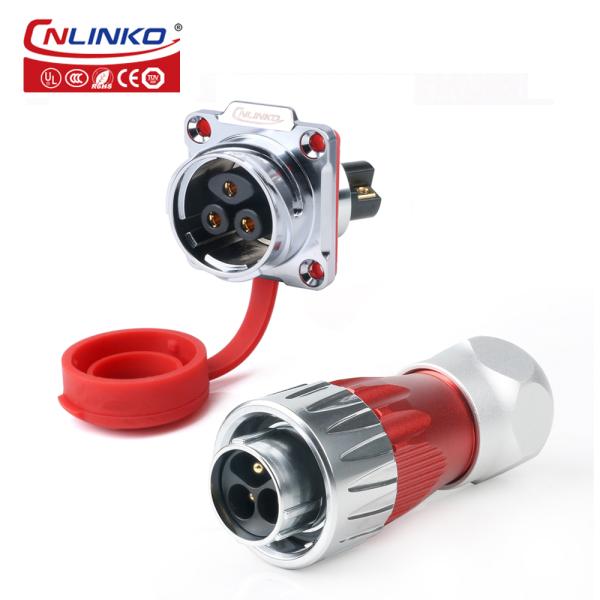

CNLINKO M24 electrical 3 pin Industrial waterproof power connector IP68 waterproof connector

Product Description

Support 24mm mounting holes.
High-standard three-point screw lock.
Use different color standards to effectively distinguish between different requirements for power, signal, fiber, and data.
The use of alloy external protective materials effectively reduces electromagnetic and signal RF interference generated by external high currents.

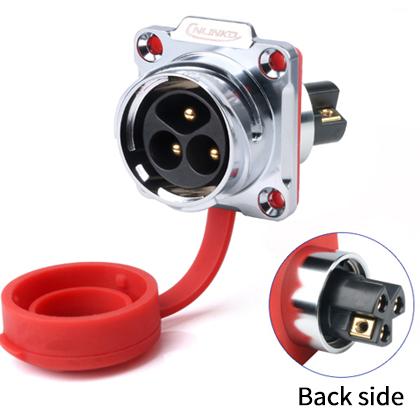

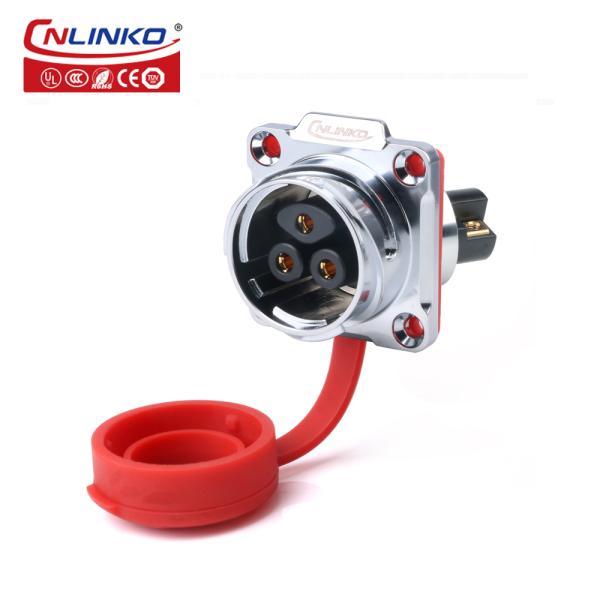

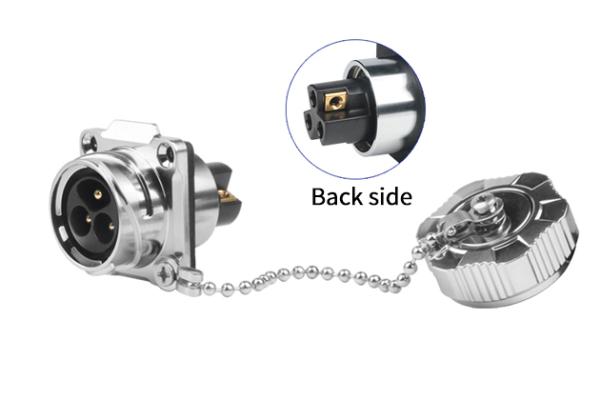

Metal and silicone dust cover to meet different application requirements.
The product is connected to IP65/IP67 protection.

M24 Electrical 3 Pin Industrial Waterproof Power Connector IP68 Waterproof ConnectorM24 Electrical 3 Pin Industrial Waterproof Power Connector IP68 Waterproof ConnectorM24 Electrical 3 Pin Industrial Waterproof Power Connector IP68 Waterproof ConnectorM24 Electrical 3 Pin Industrial Waterproof Power Connector IP68 Waterproof ConnectorM24 Electrical 3 Pin Industrial Waterproof Power Connector IP68 Waterproof ConnectorM24 Electrical 3 Pin Industrial Waterproof Power Connector IP68 Waterproof ConnectorM24 Electrical 3 Pin Industrial Waterproof Power Connector IP68 Waterproof ConnectorM24 Electrical 3 Pin Industrial Waterproof Power Connector IP68 Waterproof ConnectorM24 Electrical 3 Pin Industrial Waterproof Power Connector IP68 Waterproof Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 2.5mm2 ~ 4mm2 /14~12AWG
Diameter range Φ8mm ~Φ12mm
Contact diameter×Qty Φ3.0×3
Current rating(A) 25A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
