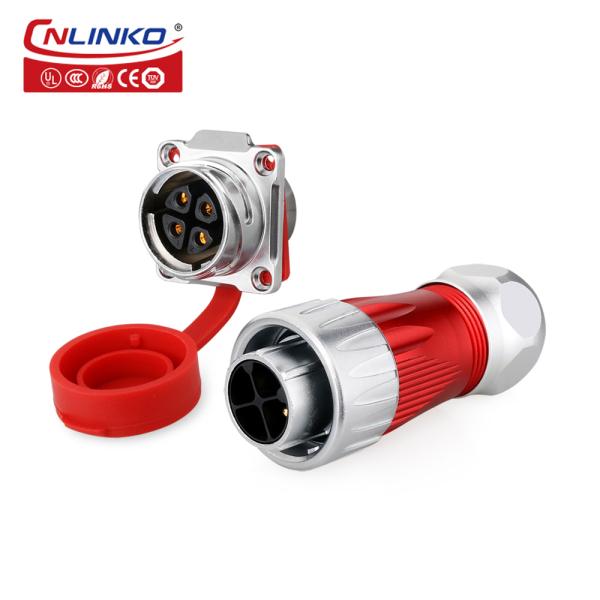

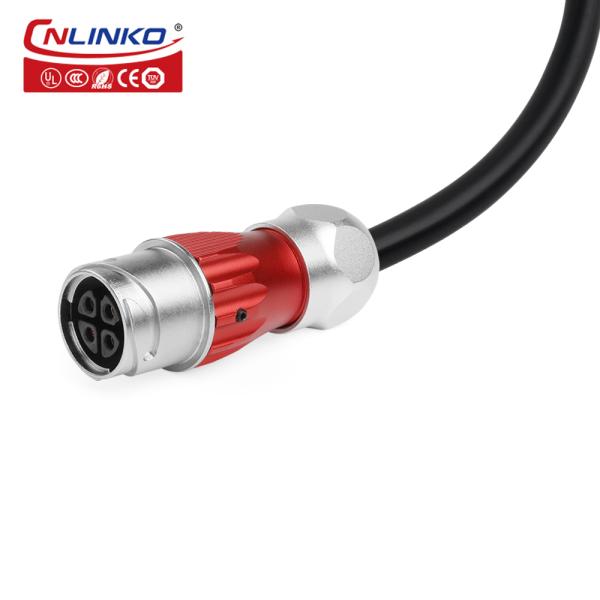

CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
cnlinko
Model Number :
DH-24-C04PE-03-001
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$12.30-13.30
Shape :
ROUND
IP level :
ip68
Type :
XLR
Application :
Power
Gender :
male and female, Female +male
Protection level :
IP65/IP67
Product type :
Welding Cable Connector Socket
Product name :
4 pin ip68 connector
Current rating(A) :
25A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Metal :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
500V
Description

CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP67 Connector

CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 ConnectorCNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 ConnectorCNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 ConnectorCNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 ConnectorCNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 ConnectorCNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 ConnectorCNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 ConnectorCNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 ConnectorCNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector

Specifications
Specifications
Connecting mode 1/4 bayonet connecting type
Protection level IP67
Cable specification 2.5mm2 ~ 4mm2 /14~12AWG
Diameter range Φ8mm ~Φ12mm
Contact diameter×Qty Φ3.0×4
Current rating(A) 25A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min 2500V
Contact resistance <5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell Zinc Alloy
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

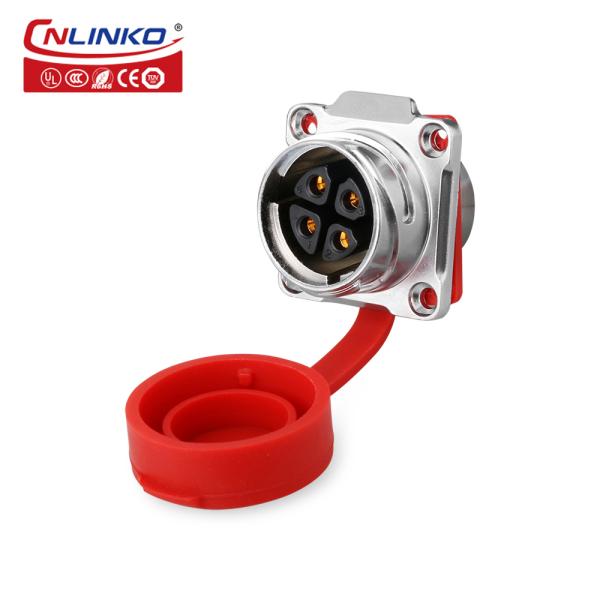

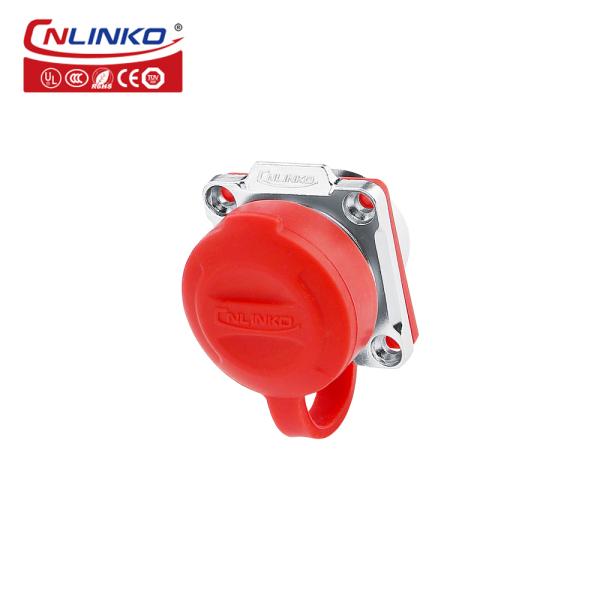

1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
