Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
DH-20-J03PE-01-001
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$9.10-10.10
Type :
Industrial
Application :
Power
Gender :
male and female, Female +male
Protection level :
IP65/IP67
Pin :
3pin
Current rating(A) :
20A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
500V
Cable Spec :
14-12AWG
Description

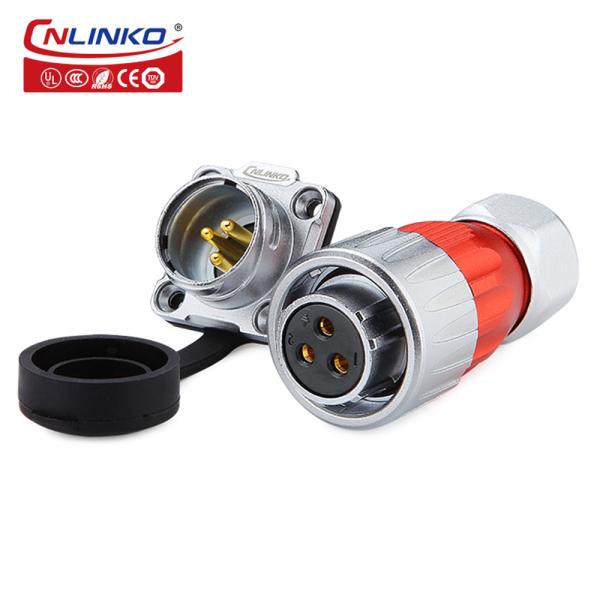

CNLINKO waterproof electrical male female connector 3 pole wire Plug Socket 3 pin power connector

Product Description

CNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power ConnectorCNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power ConnectorCNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power ConnectorCNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power ConnectorCNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power ConnectorCNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power ConnectorCNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power ConnectorCNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power ConnectorCNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power ConnectorCNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power Connector

Specifications
Specifications

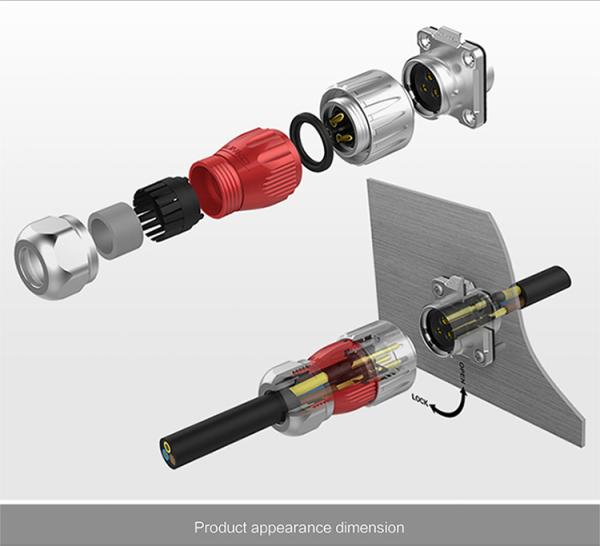

Connecting mode 1/4 bayonet connecting type
Protection level IP67
Cable specification 2.5mm2 ~ 4mm2 /14~12AWG
Diameter range Φ9mm ~Φ13mm
Contact diameter×Qty Φ2.7x3

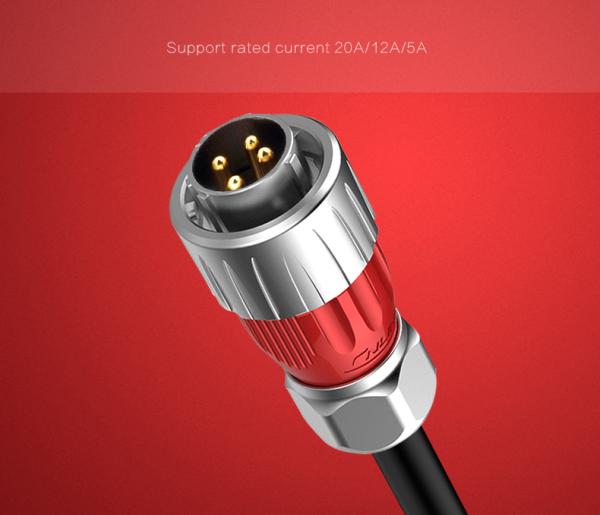

Current rating(A) 20A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0

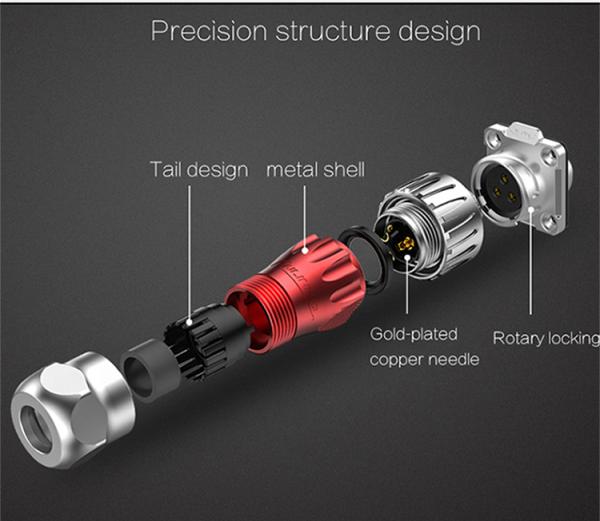

Material
Insulated parts High performance engineering plastics

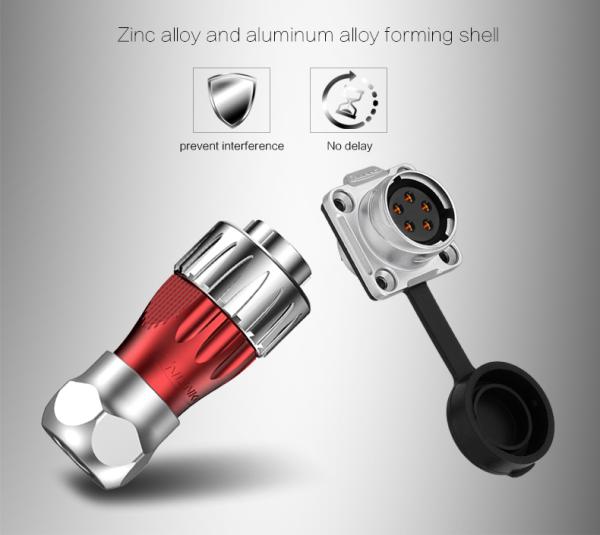

Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

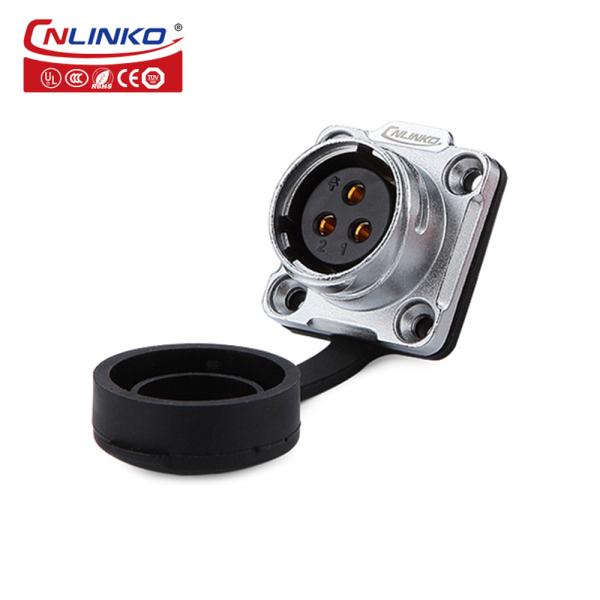

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
