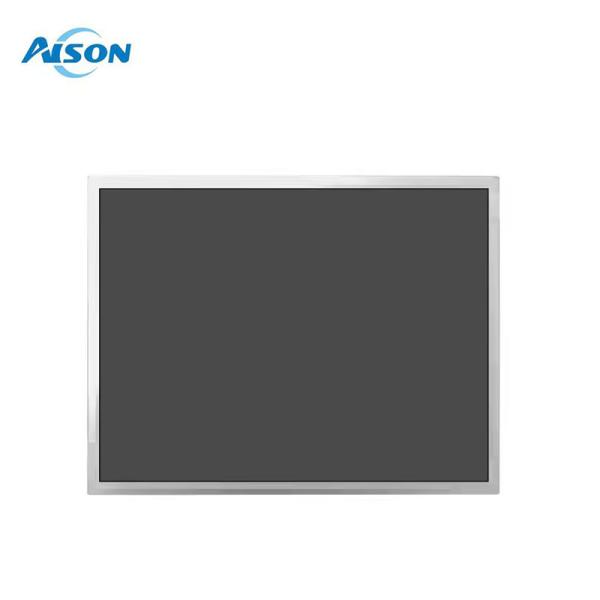

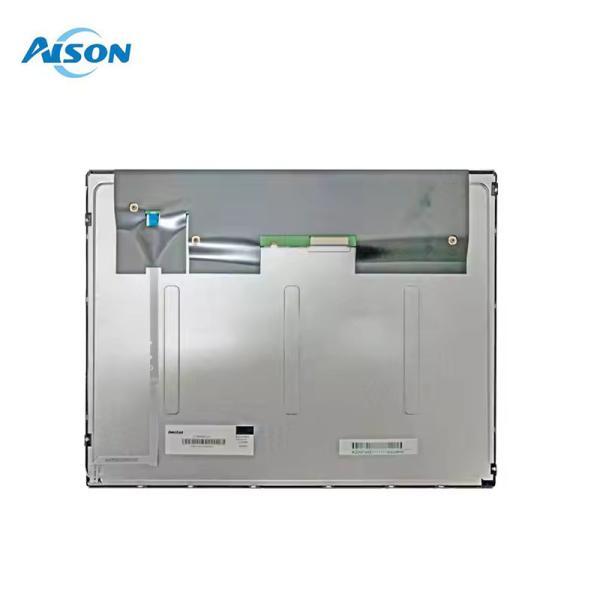

Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display
Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display
Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display
Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display
Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display
Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display
Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display
Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display
Specifications
Brand Name :
AISON
Model Number :
G150XNE-L01
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
300k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
LCM :
Innolux 15 inch LCD Panel G150XNE-L01
Resolution :
1024X768
Outline Size :
326.5(W)×253.5(H)×9.6(D) mm
Active area :
304.128(W)x228.096(H) mm
Interface :
LVDS 20 Pin
Viewing angle :
88/88/88/88 (Typ.)
Brightness :
500cd/m2
Display mode :
Normally Black
Viewing Direction :
ALL/IPS
Operating Temp :
-30 ~ 80 °C
Storage Temp :
-40 ~ 85 °C
Description

Innolux LCD Panel G150XNE-L0115.0 Inch 1024x768 LVDS Industrial Automotive Display

General Description
G150XNE-L01 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte , PSWG. Based on its features, it is recommend that this model be applied to Industrial, Automotive Display etc.

General Data

Brand Name
Chimei Innolux
Resolution
1024(RGB)x768, XGA 85PPI
Active Area
304.128(W)x228.096(H) mm
Outline Dimension
326.5(W)x253.5(H)x9.6(D) mm
Brightness
500 cd/m² (Typ.)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Interface Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Contrast Ratio
2500:1 (Typ.) (TM)
Display mode
NPVA, Normally Black, Transmissive
Operating Temperature
-30 ~ 80 °C
Storage Temperature
-40 ~ 85 °C




Product Details

Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive DisplayInnolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display

TFT Applications:

The 15 inch Innolux TFT LCD displays are suitable for Industrial, Automotive Display etc.


Innolux LCD Panel G150XNE-L01 G150XNE-L02 G150XNE-L03 15.0 Inch 1024x768 LVDS Industrial Automotive Display

Innolux 2025 Industrial control lcd modules
Size Part # Resolution Screen ratio Brightness Operating temp B/L Lifetime Other Specs
7 G070ACE-L01 800*480 15:9 500 -30~85 50K 800:1, LVDS,72%,Outline:170(H)x110(V)x6(T)mm
G070ACE-LH1 15:9 1000 -30~85 50K 800:1, LVDS,58%
10.1 G101ICE-LH1 1280*800 16:10 500 -30~80 50K 800:1, LVDS,72%,Vin 5V,Reverse scan
10.4 G104ACE-LH1 800*600 4:3 400 -30~85 50K 1000:1, LVDS,72%,Vin 5V,Reverse scan
G104XCE-L01 1024*768 4:3 500 -30~85 50K 1000:1, LVDS,72%,Reverse scan
12.1 G121ACE-LH2 800*600 4:3 600 -30~85 50K 1000:1, LVDS,72%,Reverse scan
G121ACE-PH1 4:3 -30~85 1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
G121XCE-L01 1024*768 4:3 600 -30~85 50K 1000:1, LVDS,72%,Reverse scan
G121XCE-P01 4:3 -30~85 50K 1000:1, LVDS(PCBI),72%,Reverse scan,Opencell
G121XCE-LH1 4:3 1300 -30~80 50K 1000:1, LVDS,72%,Reverse scan
G121ICE-L01 1280*800 16:10 600 -30~80 50K 1000:1, LVDS,72%
G121ICE-L02 16:10 400 -20~70 30K 1000:1, LVDS,72%
G121ICE-P01 16:10 -30~80 1000:1, LVDS(PCBI),72%,Opencell
15 G150XNE-L01 1024*768 4:3 500 -30~80 50K 2500:1, LVDS,72%,Reverse scan
G150XNE-L02 4:3 350 -30~70 50K 2500:1, LVDS,72%,Reverse scan
G150XNE-L03 4:3 300 -20~70 50K 2500:1, LVDS,72%,Reverse scan
G150XJE-P01 4:3 -30~80 2500:1, LVDS(PCBI),72%,Reverse scan,Opencell
15.6 G156HCE-E01 1920*1080 16:9 450 0~60 50K 1000:1, eDP,72%
G156HCE-L01 16:9 450 -30~85 50K 800:1, LVDS,72%,Reverse scan
N156HCE-P01 16:9 -30~85 800:1, LVDS(PCBI),72%,Reverse scan
G156HCE-LN1 16:9 350 -20~70 50K 800:1, LVDS,72%
18.5 G185BCE-L01 1366*768 16:9 400 0~60 50K 1000:1, LVDS,72%
23.8 G238HCJ-L01 1920*1080 16:9 350 0~50 30K 1000:1, LVDS,w/o CNV,72%
