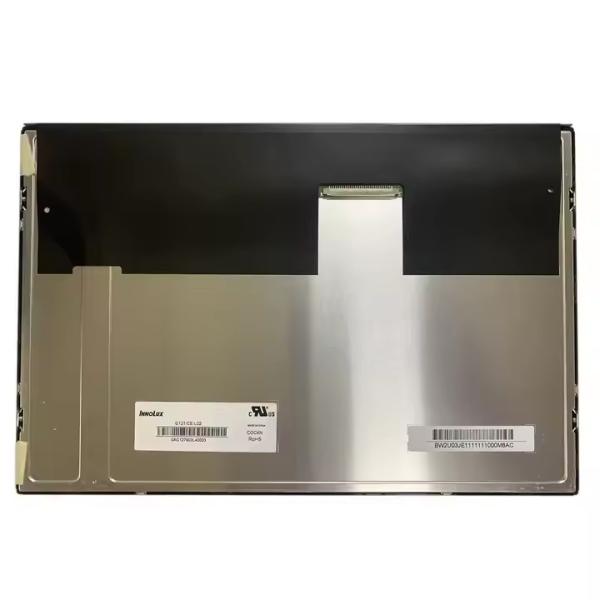

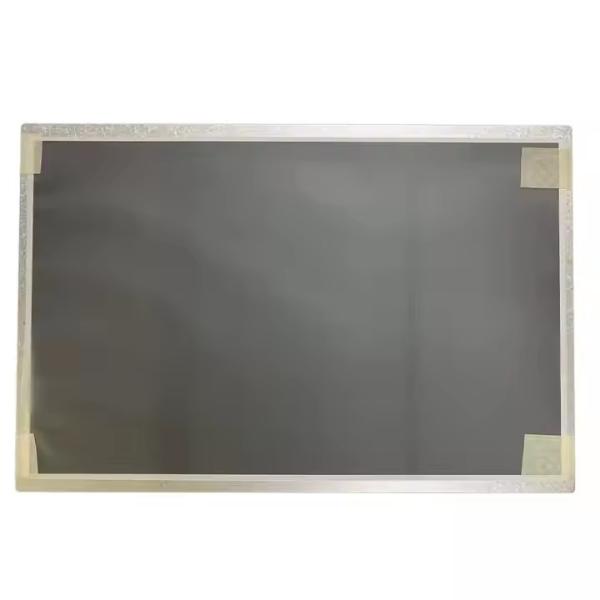

12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02
12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02
12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02
12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02
Specifications
Brand Name :
AISON
Model Number :
G121ICE-L02
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
300k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
12.1 inch Innolux IPS Industrial TFT LCD Display
Resolution :
1280x800
Outline Size :
278(W)×184(H)×10.5(D) mm
Active area :
261.12(W)×163.2(H) mm
Interface :
LVDS 30PIN
Viewing angle :
89/89/89/89
Brightness :
400cd/m2
Display mode :
Normally Black
Viewing Direction :
ALL/IPS
Operating Temp :
-20 ~ 70 °C
Storage Temp :
-20 ~ 70 °C
Description

12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01

G121ICE-L02

General Description
The G121ICE-L02 is a 12.1 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, With LED Driver, 6/8 bit, Matte , Digitizer applicable. Based on its features, Panelook recommend that this model be applied to Industrial etc.

General Data

Model Name Innolux 12.1 inch TFT Display G121ICE-L02
Resolution 1280x800
Model Size (W*H*T) 278(W)×184(H)×10.5(D) mm
Display Area (W*H) 261.12(W)×163.2(H) mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing IPS
Brightness 400 cd/m2
Pin number 30 pin
Contrast Ratio 1000:1
Operating temperatures -20 ~ 70 °C
Storage temperatures -20 ~ 70 °C




Product Details

12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L0212.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02

TFT Applications:

The 12.1 inch Innolux displays G121ICE-L01 G121ICE-L02 are suitable for Industrial application.


12.1 Inch 1280x800 Innolux IPS Industrial TFT LCD Display LVDS Interface G121ICE-L01 G121ICE-L02
