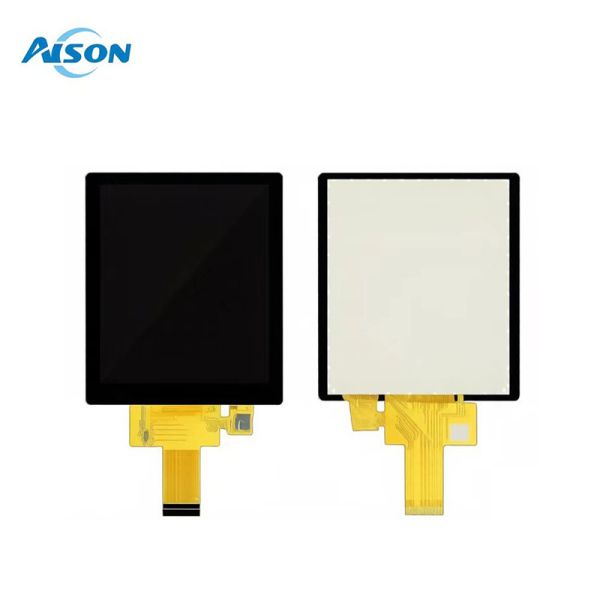

3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home
Specifications
Brand Name :
AISON
Model Number :
Z0395003C30
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
3.95 inch Square TFT Display
Resolution :
720x720
Outline dimension :
84.2(L)*84.2 (W)*3.12 (T)mm
Active area :
71.93 (H)*71.93(V)
Interface :
MIPI 4 Lane
Viewing angle :
85/85/85/85
Brightness :
300 cd/m2
Display mode :
Normally Black
Driver IC :
FL7707N
Operating temperatures :
-20℃~ +70℃
Storage temperatures :
-30℃~ +80℃
Description

4 inch Square TFT Display 720*720 High Resolution MIPI interface LCD Module

Display General Description

This 3.95 inch (4 inch)square lcd module is equipped with the FL7707 driver IC and supports MIPI interface.


It has a 720x720 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's brightness of 300cd/m2 with captouch screen ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

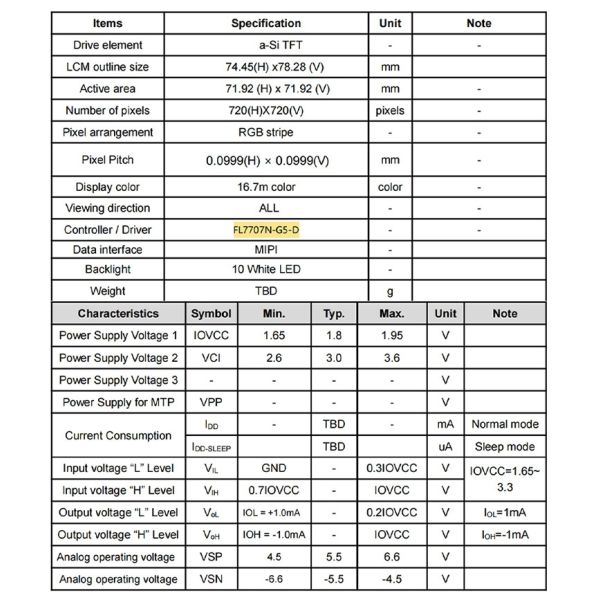

General Data

Model Name 4 Inch Square TFT LCD Display
Resolution 720x720
Model Size (W*H*T) 74.83x78.98x2.59mm
Display Area (W*H) 71.93 (H)*71.93(V)
Interface MIPI 4 Lane
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 300 cd/m2

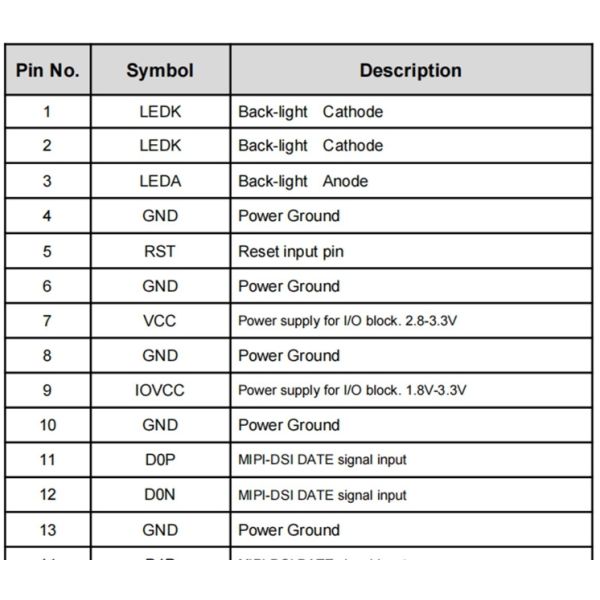

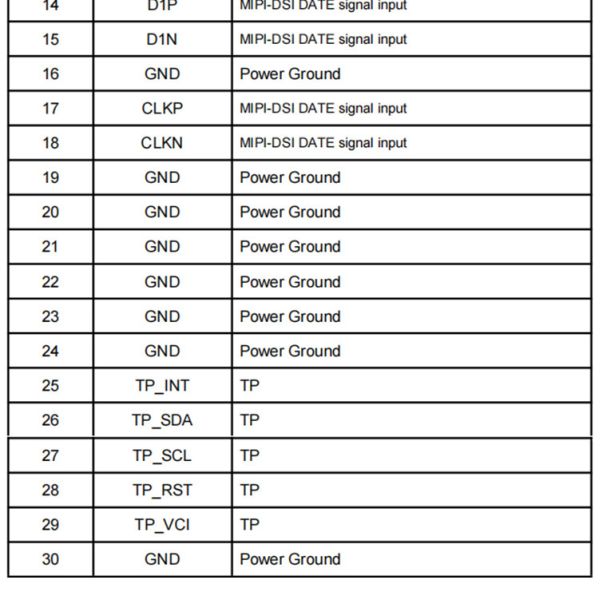

Pin number 30
Drive IC FL7707
Touch Capacitive Touch Panel Optional
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

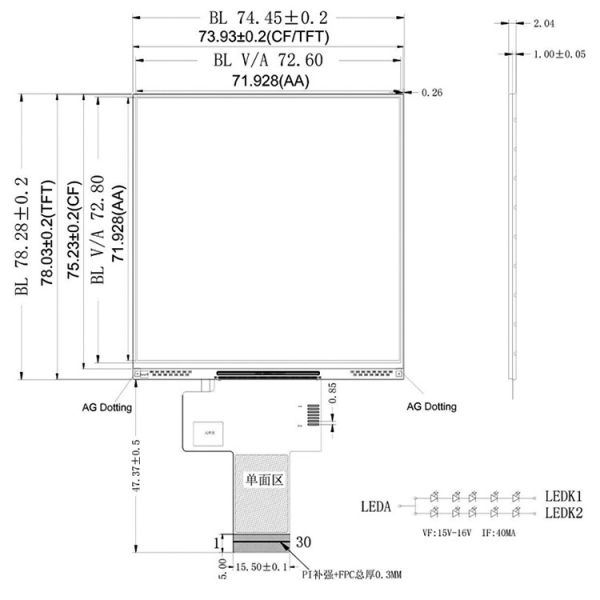

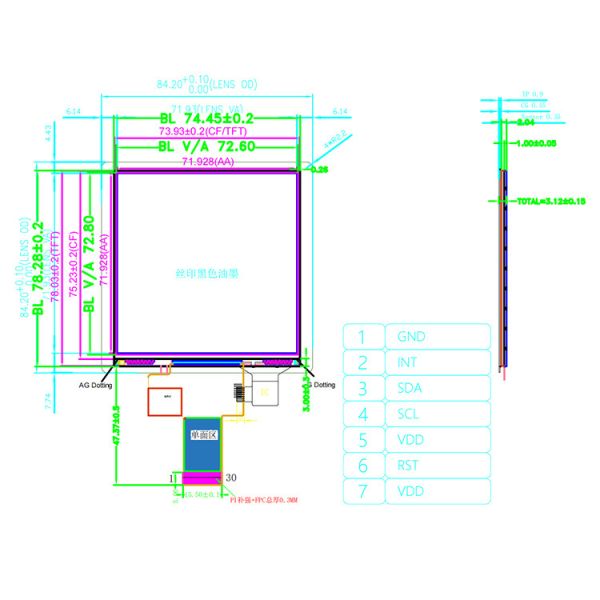

Drawing

3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home

3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home

3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home

Product Details

3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home3.95 Inch 720X720 MIPI Square LCM TFT LCD Display with Capacitive Touch Screen LED Backlight GT911 for 86 Box Smart Home

TFT Applications

This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 3.95 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
