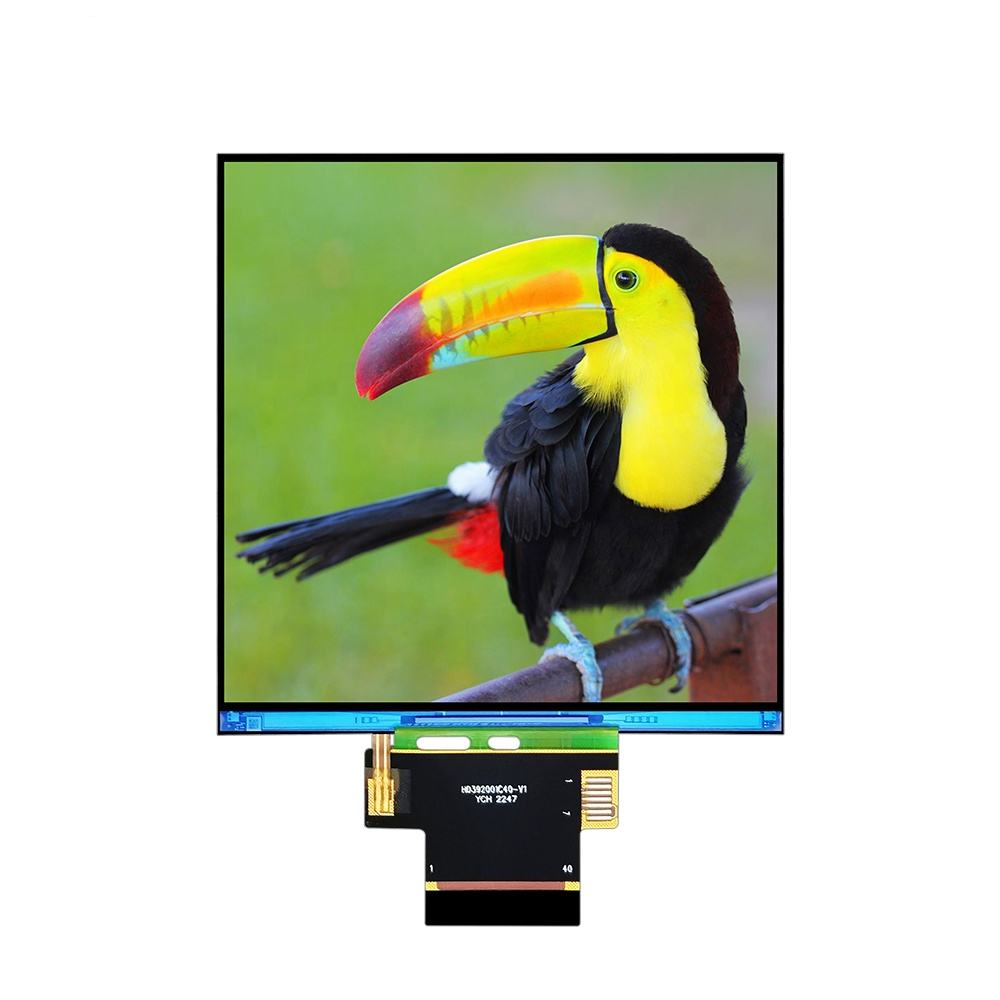

3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home
3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home
3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home
3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home
3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home
3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home
3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home
3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home
Specifications
Brand Name :
AISON
Model Number :
HD392001C40-V1
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
3.92 inch Square Touch TFT Display
Resolution :
320x320
Outline dimension :
74.66x76.54x2.18mm
Active area :
71.14 x 69.82 mm
Interface :
SPI /MCU
Viewing angles :
80/80/80/80
Luminance :
550 cd/m2
Display Type :
Normally Black
Driver Controller :
ST7796S
Working temperatures :
-20℃~ +70℃
Storage temperatures :
-30℃~ +80℃
Description

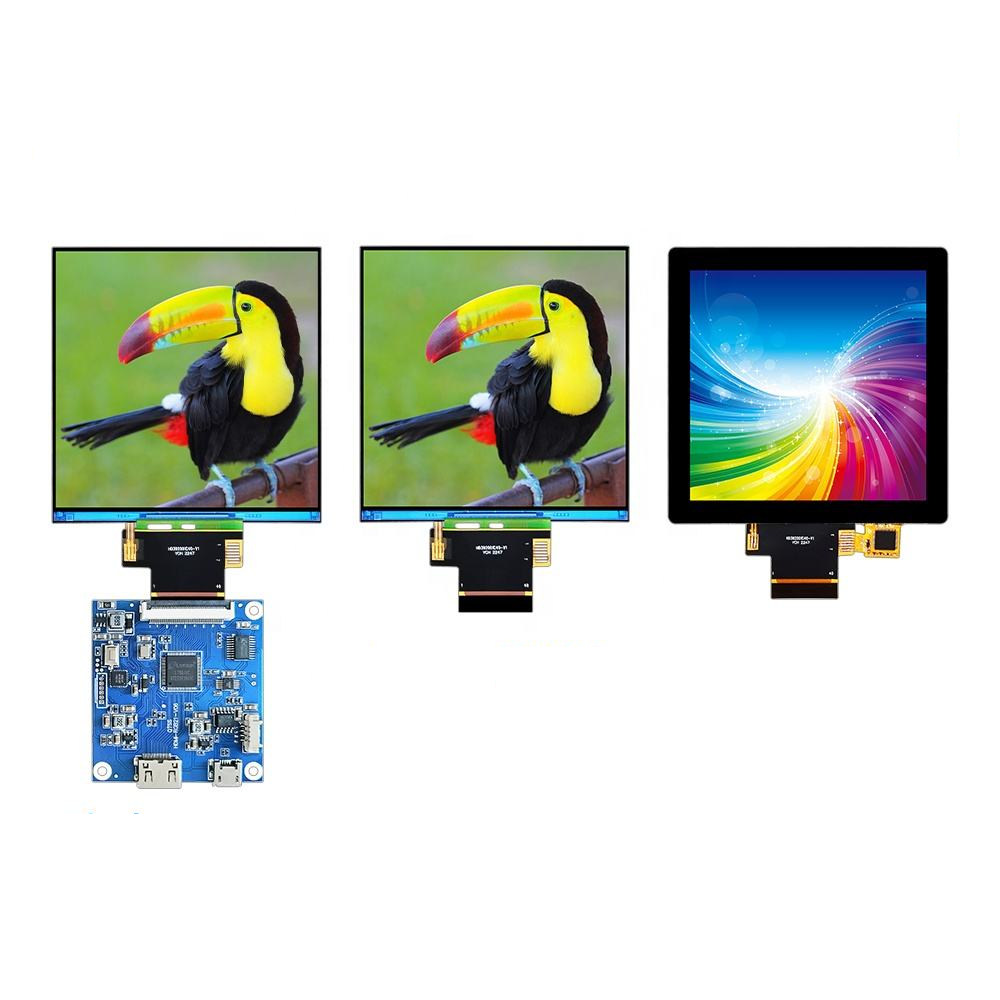

3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board

Display General Description

HD392001C40-V1 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.92" contains 320 RGB X320 pixels and can display up to 262K colors.

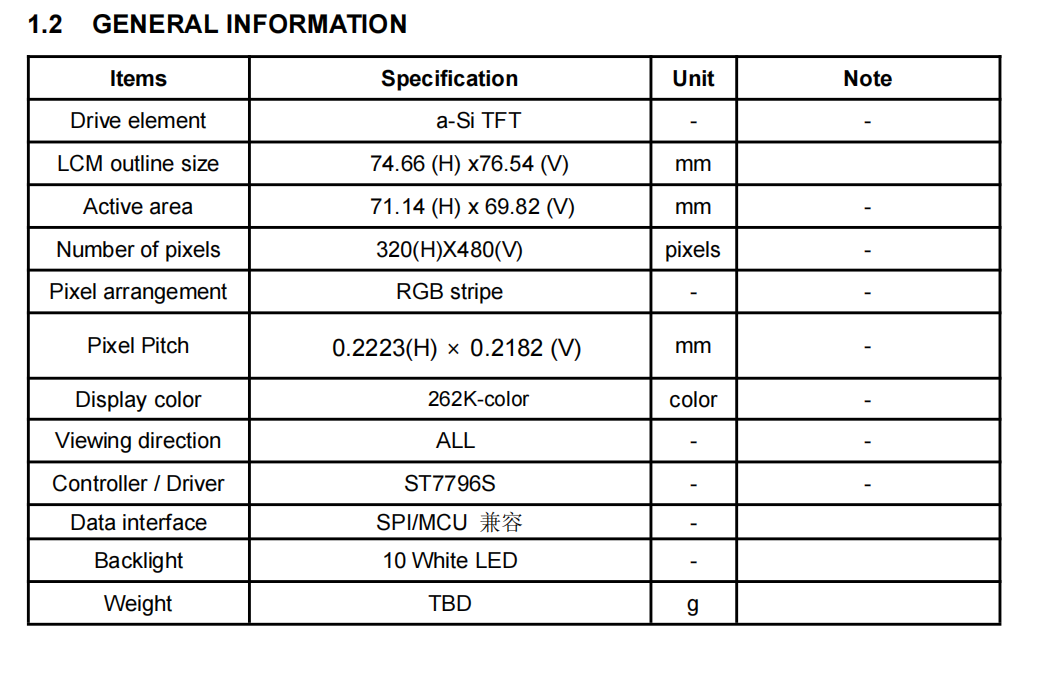

General Data

Model Name 3.92 Inch Square TFT LCD Display
Resolution 320x320
Model Size (W*H*T)mm 74.66x76.54x2.18mm
Display Area (W*H)mm 71.14 x 69.82 mm
Interface MCU/SPI
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 550 cd/m2
Pin number 40
Drive IC ST7796S
Touch Capacitive Touch Panel
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

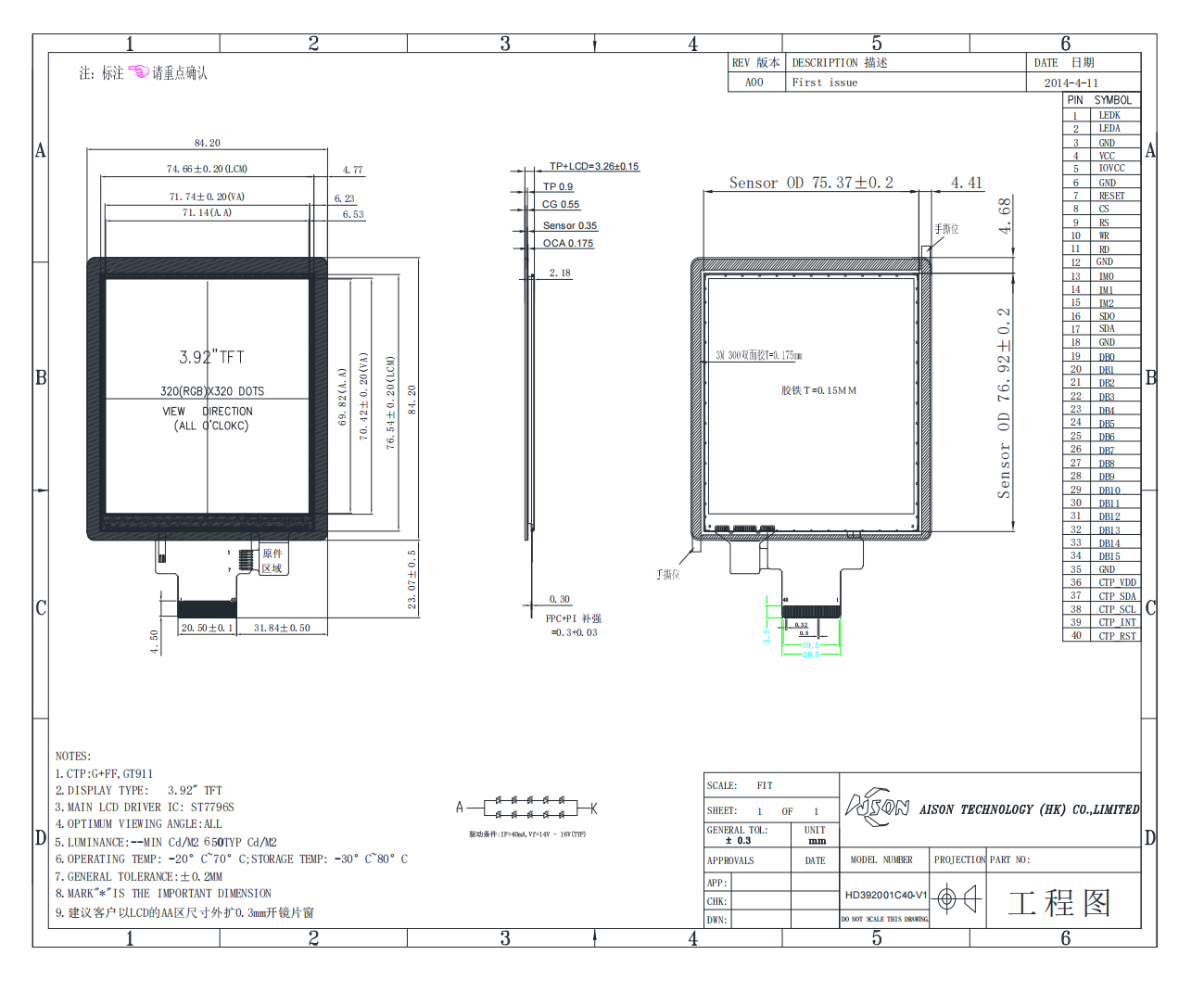

Drawing

3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home

3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home

Product Details

3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home3.92 Inch Square Display 320x320 SPI MCU Interface With CTP For Smart Home

TFT Applications

This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 3.92 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
