Specifications
Brand Name :
AISON
Model Number :
Z076-30MB-B1
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
7.6 inch Square TFT LCD Display
Resolution :
1200X1200
Outline dimension :
142.56 (H)*148.24 (V)*5.1(D)
Active area :
135.36 (H)* 135.36 (V)
Interface :
MIPI
Viewing angle :
80/80/80/80
Brightness :
1000cd/m2
Display mode :
Normally Black
Driver IC :
ILI9881C
Operating temperatures :
-20℃~ +70℃
Storage temperatures :
-30℃~ +80℃
HDMI Board :
Available
Touch :
Captouch Available
Description

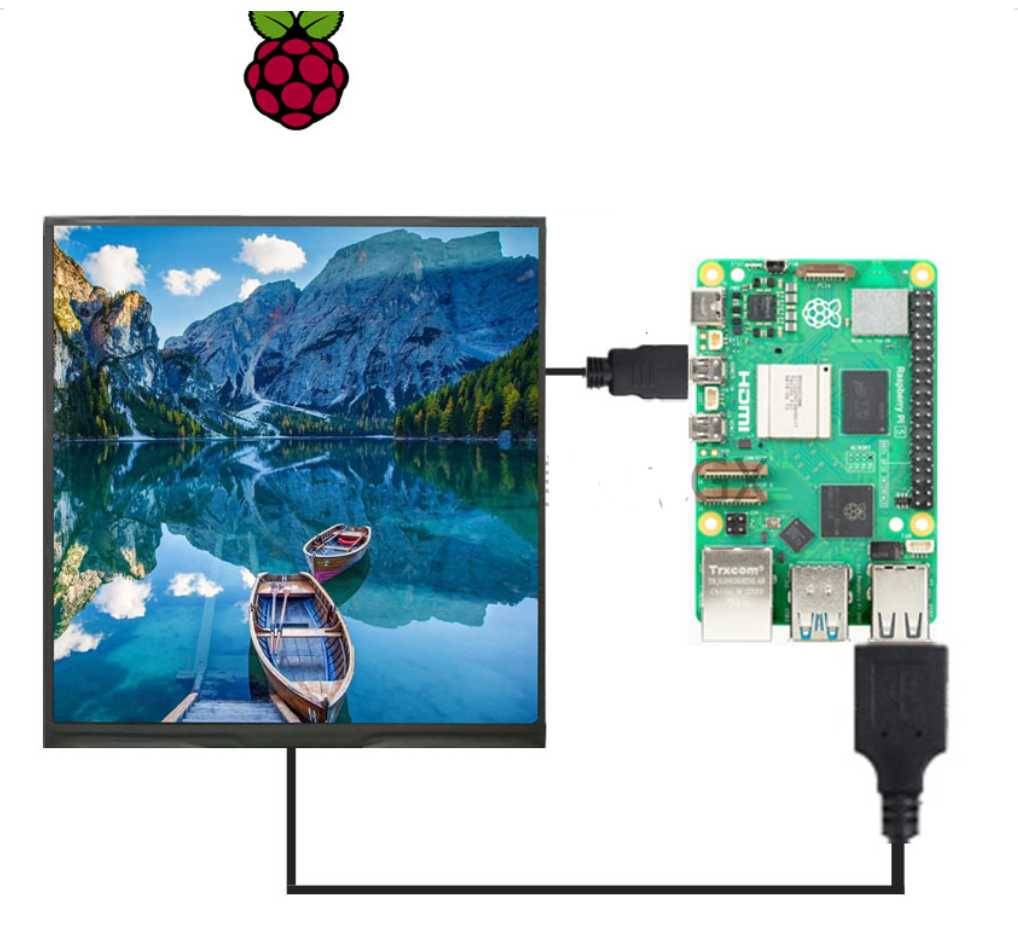

7.6 Inch 800*800 Square TFT LCD Display With Capacitive Touch Screen for Raspberry Pi 5

Display General Description

This 7.6 inch square lcd module is equipped with the ILI9881C driver IC and supports MIPI interface.


It has a high 1200x1200 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's high brightness 1000cd/m2 ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

General Data

Item
Specifications
Type
IPS
Module Size
7.6 Inch
Dimensional outline
142.56(H)*148.24(V)*5.1(D)
Active area
135.36 (H)*135.36(V)
Resolution
800*800
Interface
MIPI
Pixel pitch
36.5(H) x 109.5(V)
Pixel Arrangement
RGB Vertical Stripe
Driver IC
ILI9881C
Brightness
1000cd/m2
Display Color
16.7M
Viewing direction
Free
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 75°C
Supplier Type
Manufacturer

Drawing

7.6 Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 57.6 Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 5

Product Details

7.6 Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 57.6 Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 5

7.6 Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen for Raspberry Pi 5

TFT Applications

This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 7.6 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
