7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC
7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC
Specifications
Brand Name :
AISON
Model Number :
Z076WU01
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
7.6 inch Square TFT LCD Display
Resolution :
1200X1200
Outline dimension :
142.56X148.14X5.1mm
Active area :
135.36x 135.36mm
Interface :
MIPI
Viewing angle :
85/85/85/85
Brightness :
1000cd/m2
Display mode :
Normally Black
Operating temperatures :
-10°C~60°C
Storage temperatures :
-20℃~ +70℃
HDMI Board :
Available
Touch :
Captouch Available
Description

7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC

Display General Description

This 7.6 inch square lcd module is equipped with the ILI9881C driver IC and supports MIPI interface.


It has a high 1200x1200 RGB pixel resolution on a black background, delivering an exceptional visual experience.
The module's high brightness 1000cd/m2 ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

It can be operating at temperatures from -10℃ to +60℃ and storage temperatures from -20℃ to +70℃.

General Data

Item
Specifications
Type
IPS
Module Size
7.6 Inch
Dimensional outline
142.56X148.14X5.1mm
Active area
135.36x 135.36mm
Resolution
1200*1200
Interface
MIPI
Pixel pitch
36.5(H) x 109.5(V)
Pixel Arrangement
RGB Vertical Stripe
Driver IC
ILI9881C
Brightness
1000cd/m2
Display Color
16.7M
Viewing direction
Free
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 75°C
Supplier Type
Manufacturer

Drawing

7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC

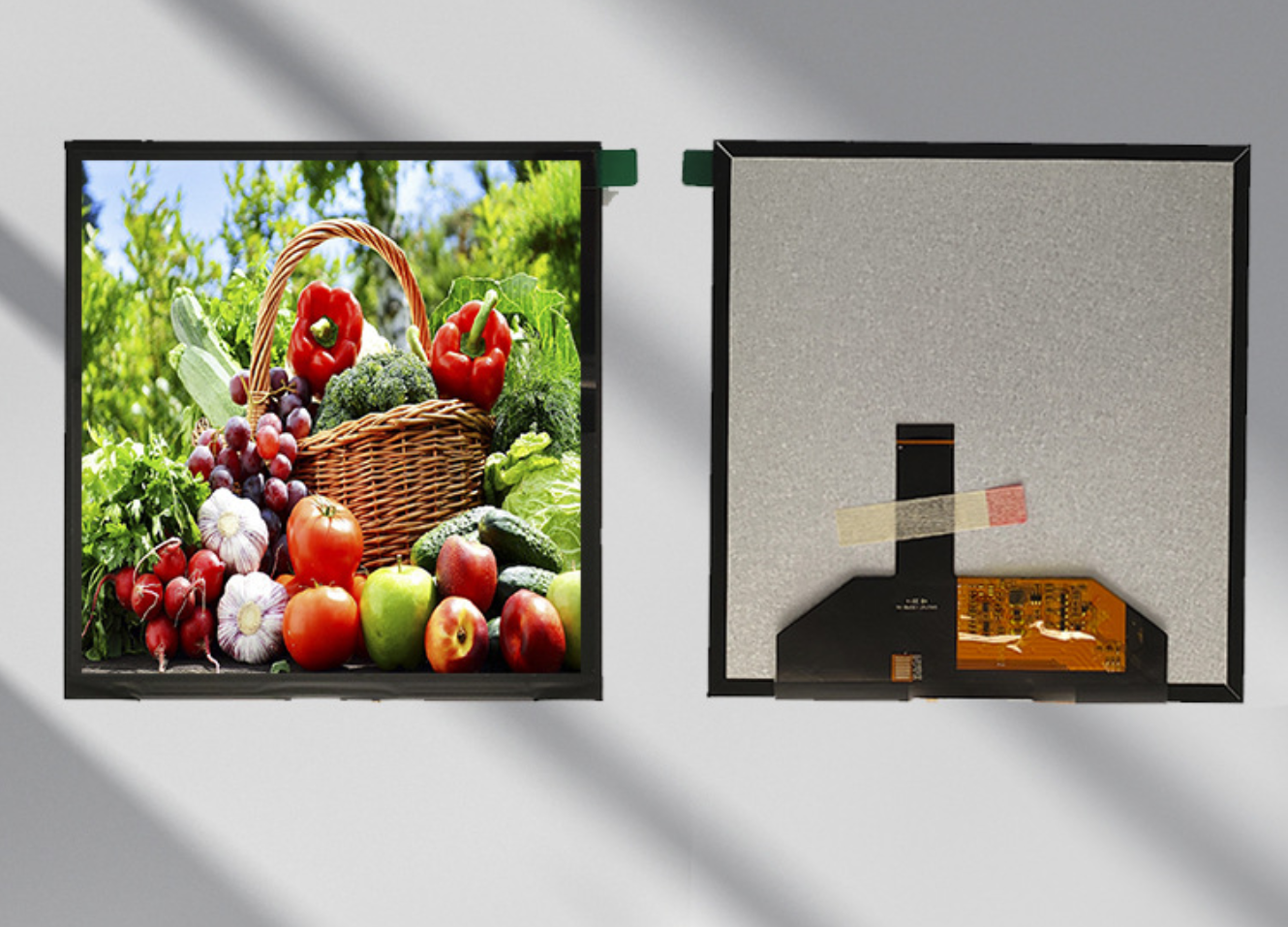

Product Details

7.6 Inch Square 1200x1200 TFT LCD LCM Display Module High Brightness 1000cd/m2 MIPI Interface ILI9881C Driver IC

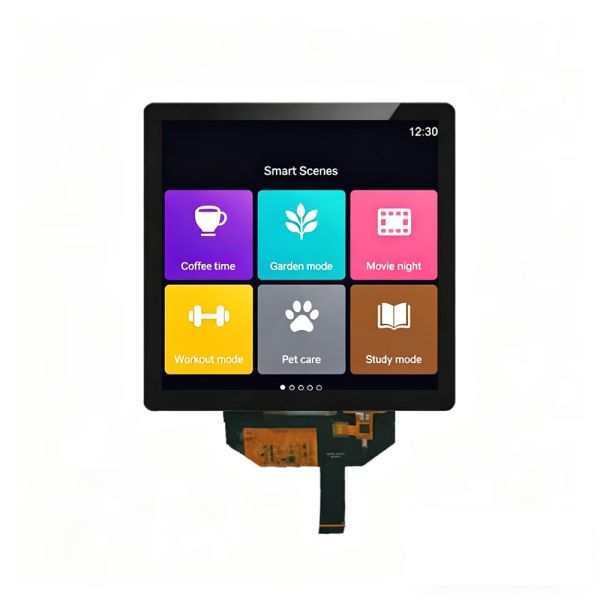

TFT Applications

This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 7.6 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
