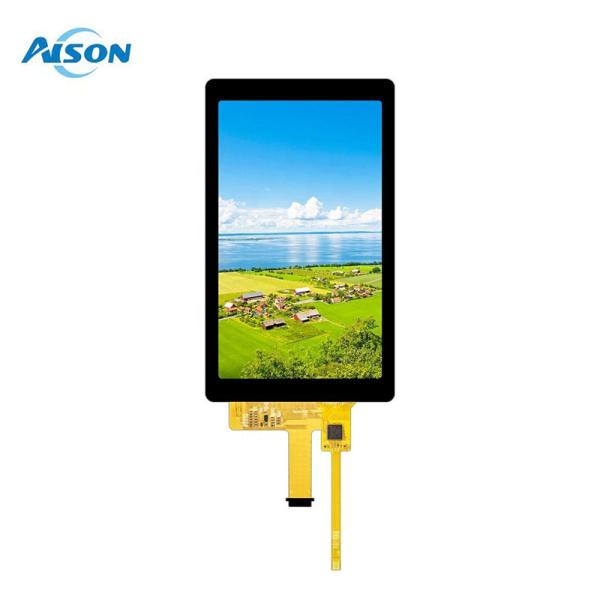

5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen
Specifications
Brand Name :
AISON
Model Number :
ZHD55017C31
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
10~20usd/pc
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
LCM Name :
5.5 Inch 1080X1920 Capacitive Touchscreen
Number of Dots :
10801x920
LCM outline size :
70.84 (H) x128.78 (V)mmx2.7mm
Active area :
68.04 (H) x 120.96 (V)mm
Interface :
MIPI
Brightness :
350cd/m2
Display mode :
TFT, Normally Black, Transmissive
Viewing Direction :
ALL/IPS
Operating temperatures :
-20 to 70 ℃
Storage temperatures :
-30 to 80 ℃
Driver IC :
JD9522Z
Description

5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen

Display General Description
1) Size: 5.5 Inch
2) Resolution: 1080×1920
3) Display Mode: TFT
4) Interface Mode: MIPI 31
5) Brightness: 350 cd/㎡
6) View Angle: All O’clock
7) Driver IC: JD9522Z
8) Operation Temperature: -20~70℃
9) Storage Temperature: -30~80℃
This 5.5-inch IPS TFT display has a resolution up to 1080x1920, is equipped with a MIPI interface, and has a brightness 350cd/m². The effective display area is 68.04 (H) x 120.96 (W) mm, and the overall size is 70.84 (H) x128.78 (V)mmx2.7mm. It is equipped with a capacitive touch screen (CTP), the operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C. It is suitable for special applications in industrial scenarios and supports glove touch and harsh environments.
General Data
Item
Specifications
Type
IPS
Module Size
5.5 inch TFT LCD
Active area
68.04 (H) x 120.96 (V)
Dimensional outline
70.84 (H) x128.78 (V)
Display mode
Trasflective/Transmissive
Touch panel
Capacitive Touch screen
Resolution
1080(H)X1920(V)
Interface
MIPI
LCD Driver IC
JD9522Z
Brightness
330cd/m2
Viewing Angle
ALL O'CLOCK
Backlight
White LED
Operating Temperature
-20°C ~ 70°C
Storage temperatures
-30°C ~ 80°C

Drawing

5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen

Product Details

5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen5.5 Inch MIPI TFT Module 1080*1920 Resolution LCD Displays with Capacitive Touch Screen

TFT Applications

The 5 inch IPS LVDSTFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
