7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen
7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen
7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen
7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen
7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen
7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen
Specifications
Brand Name :
AISON
Model Number :
Z070WV01-CT
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
10~25usd/pc
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister Package
Product :
7 Inch 800x480 TFT Display Module
Display Resolution :
800x480
Outline dimension :
164.9*100*7.1mm
Active area :
154.08 x 85.92mm
Interface Type :
24 bit RGB
View Direction :
12 o'clock
Operating temp :
-20 to 70 degree
Storage temp :
-30 to 80 degree
Description

LCD Display 7 inch TFT LCD Display Module with RGB 40 Pin Captouch Panel

General Description

The Z070WV01-CT is a high-performance 7-inch TFT LCD module featuring a Projected Capacitive Touch Panel (PCAP) with a resolution of 800x480 pixels. Equipped with the EK79713CA and EK73202AB2 driver ICs, this LCD module supports a 24-bit RGB interface and includes a DC-to-DC function for efficient power management. It offers an impressive contrast ratio of 800:1 (typical) and a brightness of 400 nits (typical), ensuring vivid and clear display quality. The aspect ratio is 16:9, and it features a normally white, transmissive LCD type with a viewing direction of 12H and grayscale inversion direction of 6H.

The integrated Projected Capacitive Touch Panel is powered by the GT911 IC, which supports an I2C interface for seamless communication. The module operates on a logic supply voltage (VCC) ranging from 3.0V to 3.6V, with a typical value of 3.3V. Designed for reliable performance, the Z070WV01-CT operates within a temperature range of -20℃ to +70℃ and can be stored in temperatures from -30℃ to +80℃, making it suitable for a wide range of applications.

General Data

Model Name 7 inch TFT Display with touch screen
Resolution 800*(RGB)*480
Model Size (W*H*T)mm 164.9*100*7.1mm
Display Area (W*H)mm 154.08 x 85.92mm
Interface RGB
Display Mode Normally White TN,Transmissive
Viewing 12:00 o'clock
Brightness 400 cd/m2
Pin number 40 pin
Interface RGB 24 bit
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

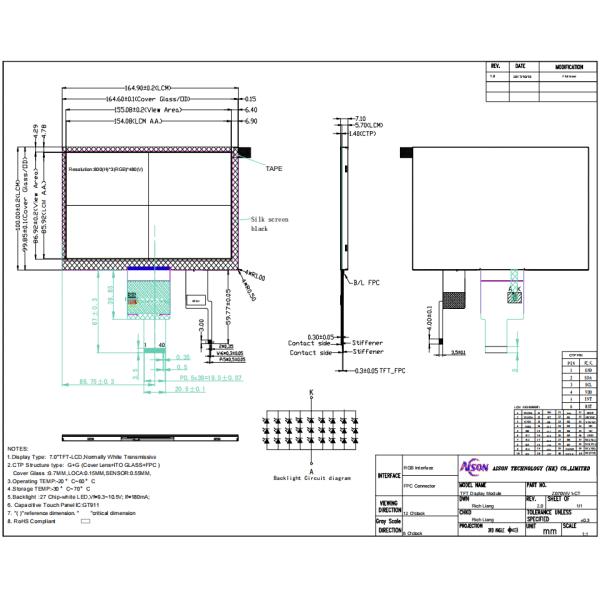

Drawing

7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen

Product Details

7 Inch 800x480 TFT Display Module RGB 40 Pin Capacitive TFT Touch Screen

TFT Applications:

The 7 inch tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
