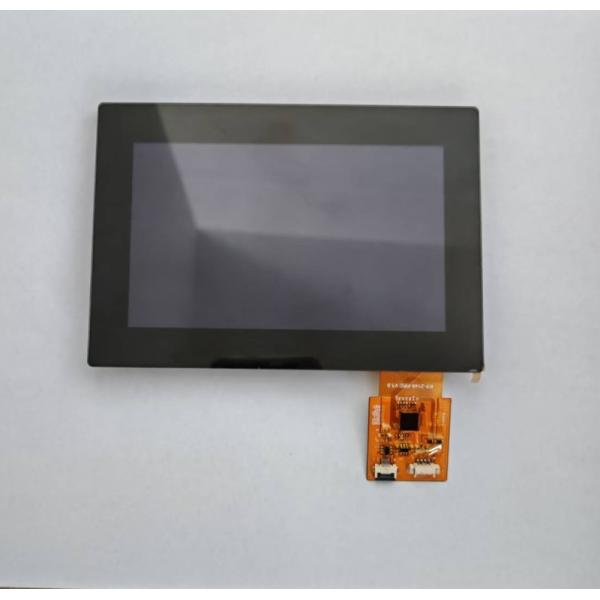

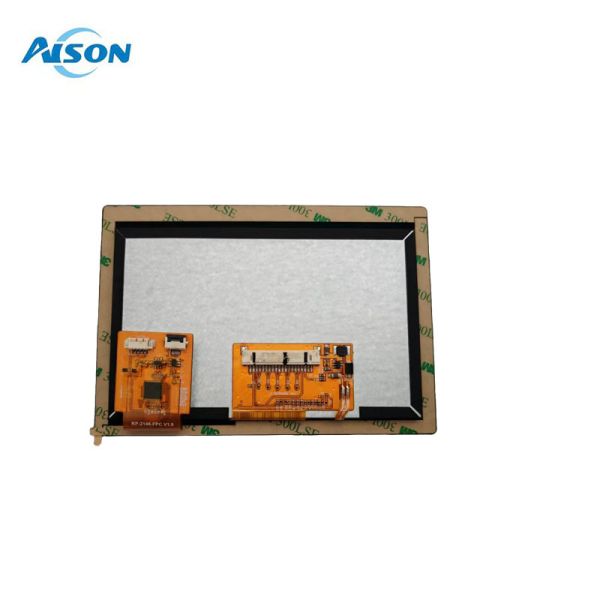

5 Inch 800x480 IPS LVDS TFT LCD Module with USB Interface Capacitive Touch Screen
5 Inch 800x480 IPS LVDS TFT LCD Module with USB Interface Capacitive Touch Screen
5 Inch 800x480 IPS LVDS TFT LCD Module with USB Interface Capacitive Touch Screen
5 Inch 800x480 IPS LVDS TFT LCD Module with USB Interface Capacitive Touch Screen
Specifications
Brand Name :
AISON
Model Number :
Z050WV31-CT
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
10~25usd/p
Payment Terms :
T/T
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
5 inch IPS TFT Display with USB Touch Screen
Resolution :
800x480
Module Size :
133.9*93.4*5.5mm
Active area :
108 x 64.80 mm
Interface Type :
LVDS 6/8 bit
Luminance :
350 cd/m2
Display mode :
Normally Black
Viewing angles :
85/85/85/85
Operating temperatures :
-30 to 80 degree
Storage temperatures :
-35 to 85 degree
Description

5 Inch 800x480 IPS LVDSTFT LCD Module with USB Interface CapacitiveTouch Screen

Display General Description
Z050WV31-CT is a 5-inch TFT LCD module designed for exceptional performance and versatility. This module features a resolution of 800 × 480 pixels with a 16:9 aspect ratio, delivering a wide and immersive viewing experience. Equipped with a projected capacitive touch screen and IPS display technology, it offers a viewing angle of 85 degrees in all directions, ensuring clarity from every angle.This 5 inch lcd display is with LVDS interface with USB Interface CapacitiveTouch Screen.

Designed for robust operation, this module is capable of functioning within a wide temperature range of -30℃ to +80℃, with storage temperatures as low as -35℃ and as high as +85℃, making it suitable for diverse environments. It features a contrast ratio of 800:1 (typical) and a brightness of 350 nits (typical), delivering crisp and vivid visuals under various lighting conditions.

General Data

Product Name 5 Inch Capacitive Touch IPS TFT LCD Module
Number of Pixel 800x480
Interface LVDS
Luminance(cd/m2) 400 cd/m2
Active area
133.9*93.4*5.5
LCM (W x H x D)
108x64.8 mm
Viewing Direction(eye) IPS/ALL
Operating temperatures -30 to 80 degree
Storage temperatures -35 to 85 degree

Drawing
5 Inch 800x480 IPS LVDS TFT LCD Module with USB Interface Capacitive Touch Screen

Product Details

5 Inch 800x480 IPS LVDS TFT LCD Module with USB Interface Capacitive Touch Screen

TFT Applications

The 5 inch display module is suitable for use in control panels for white goods, industrial control systems, audio equipment, and home security systems.

5 Inch 800x480 IPS LVDS TFT LCD Module with USB Interface Capacitive Touch Screen
