Specifications
Brand Name :
Ritian
Model Number :
Small Square HVIL Connector
Certification :
CE
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000 PCS / Month
Delivery Time :
5-8 days for the samples, 15-25 days for bulk
Packaging Details :
Neutral Carton or Customized
Product Series :
Small Square Series HVIL Connector
Contact Type :
New Energy Power Connector
Gender :
Plug & Socket (Male/Female)
Housing Material :
High-temperature resistant, flame-retardant engineering plastic (Orange for HV identification).
Interlock Mechanism :
Integrated HVIL (High-Voltage Interlock Loop).
Color :
Industry-standard High-Voltage Orange
Termination :
Crimp-style for reliable electrical conductivity.
Application :
Engineered for New Energy Vehicles (EV/PHEV)
Description

Small Square Series HVIL Connector 800V 46A Waterproof Plug For New Energy Vehicles


Product Definition

This Small Square Series HVIL Connector is designed specifically for power distribution and auxiliary systems in New Energy Vehicles (NEVs). It ensures a secure electrical connection with an integrated safety interlock mechanism to prevent accidental disconnection under load, providing reliable power transmission in harsh automotive environments.

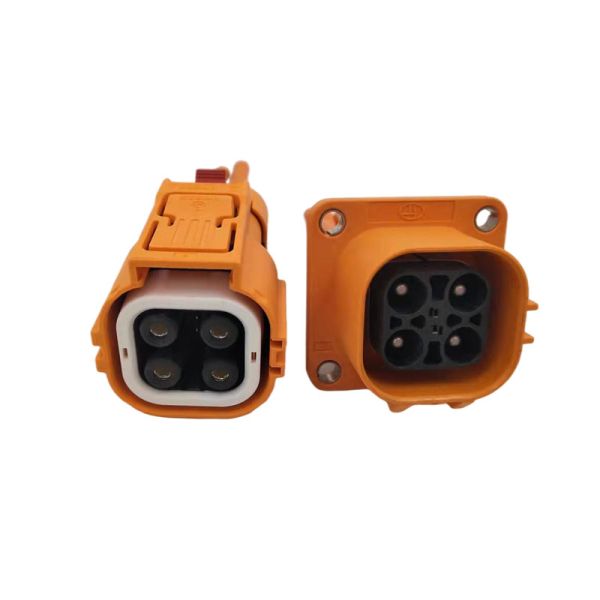

Small Square Series HVIL Connector 800V 46A Waterproof Plug For New Energy Vehicles

Small Square HIVL Connector Parameters

Item Specification
Service Life ≥500 Mating Cycles
Insertion/Extraction Force < 100N
Rated Voltage 800V DC
Rated Current Max 46A (at Ambient Temp 70°C)
Insulation Resistance > 200Mꭥ
Withstand Voltage 3000V AC
Protection Level (Ingress) IP67 (Waterproof/Dustproof)
Touch Proof IP2XB
Operating Temperature -40°C to +125°C


Key Features

  1. HVIL Safety Assurance: Features a built-in high-voltage interlock system to ensure circuit safety during maintenance or accidental unplugging.
  2. Superior Thermal Performance: Capable of handling up to 46A even at elevated ambient temperatures (70°C), ideal for engine compartments.
  3. Exceptional Durability: Rated for over 500 mating cycles with a rugged IP67-rated enclosure that resists water, dust, and vibration.
  4. Compact Design: Optimized for "small square" (low cross-section) wiring, saving space in tight automotive layouts.
  5. Wide Temperature Resilience: Operates reliably in extreme environments from Arctic cold (-40°C) to intense heat (+125°C).

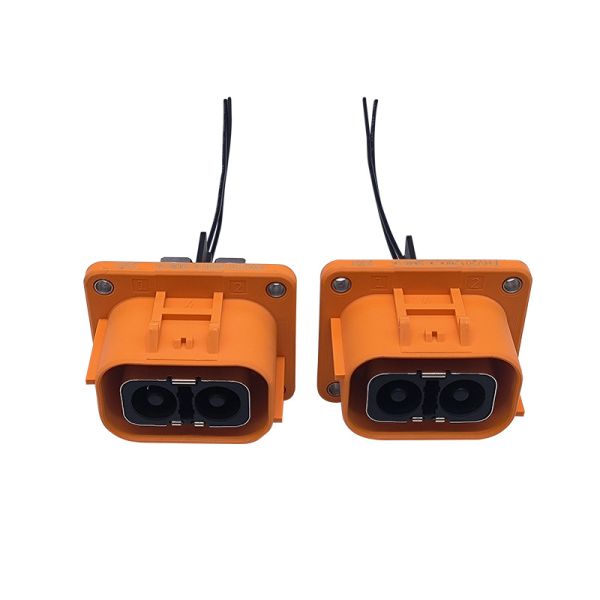

Small Square Series HVIL Connector 800V 46A Waterproof Plug For New Energy Vehicles

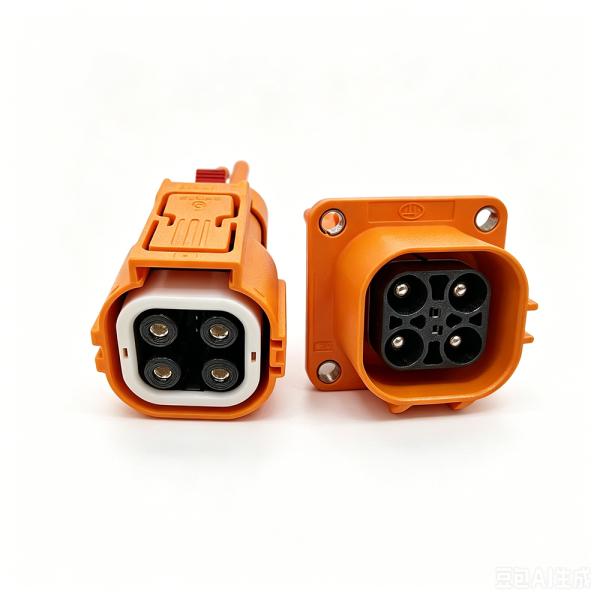

Small Square Series HVIL Connector 800V 46A Waterproof Plug For New Energy Vehicles

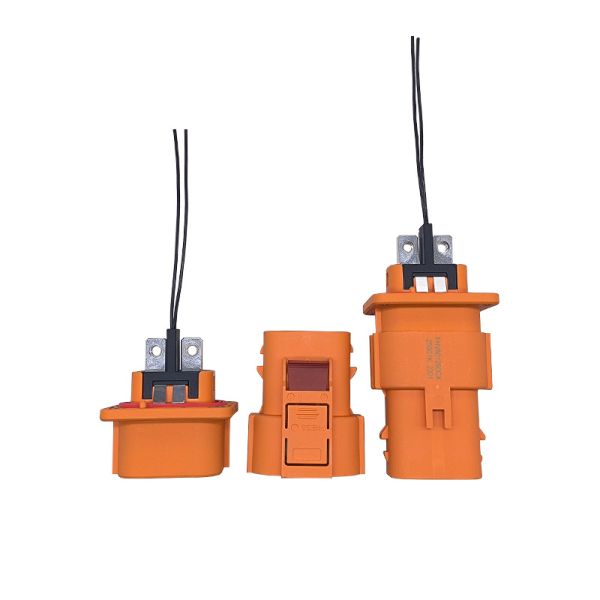

Small Square Series HVIL Connector 800V 46A Waterproof Plug For New Energy Vehicles

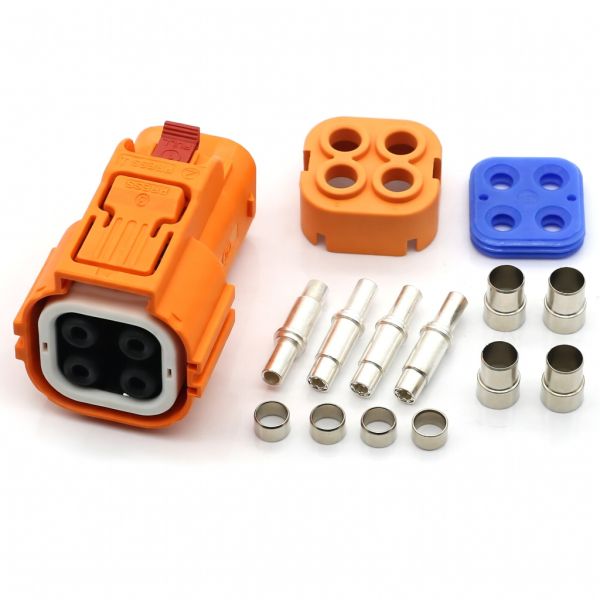

Small Square Series HVIL Connector 800V 46A Waterproof Plug For New Energy Vehicles

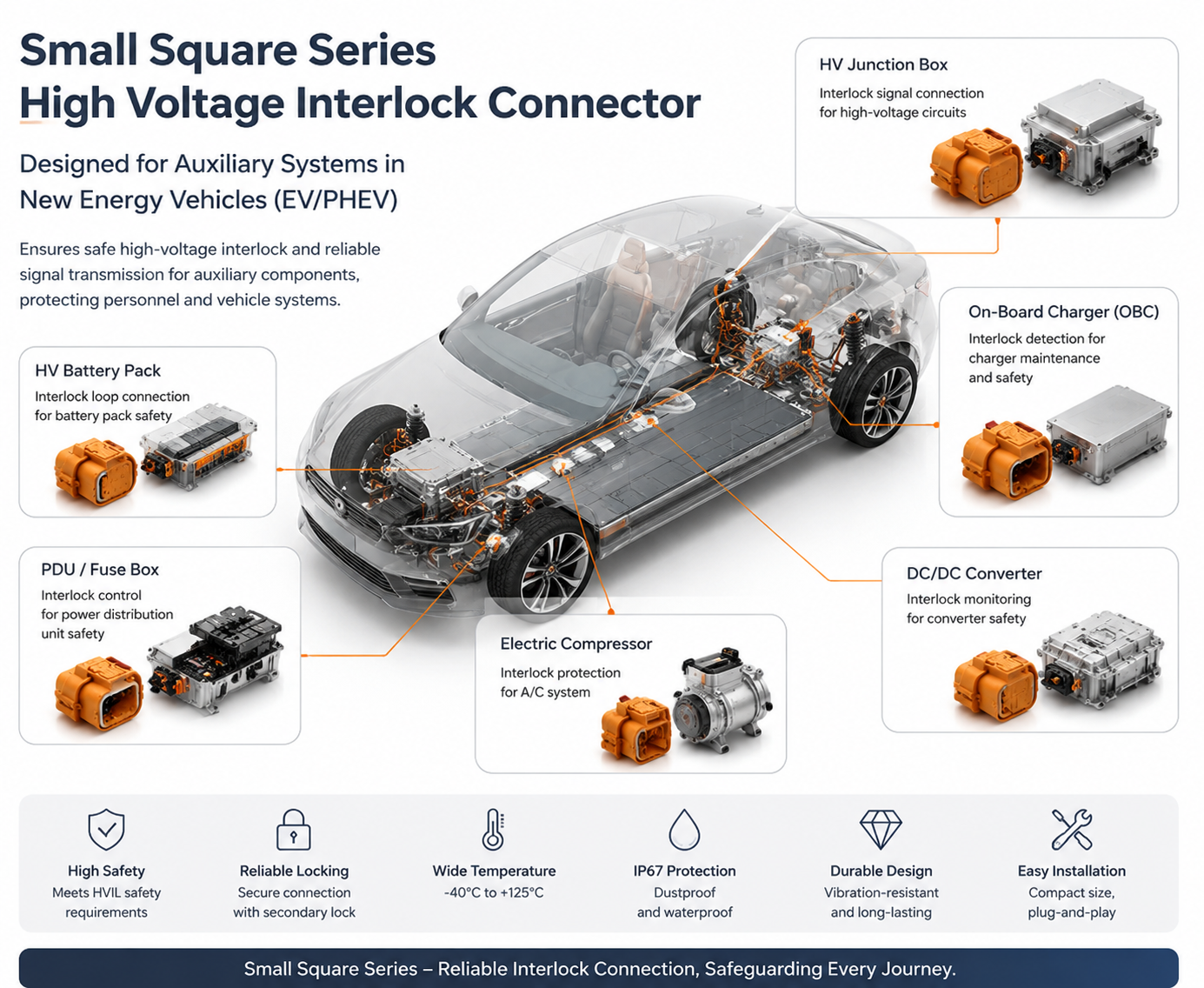

Application Scenarios

Specifically engineered for auxiliary systems in New Energy Vehicles (EV/PHEV), including:

  • AC Slow Charging Input: Connecting the vehicle inlet to the On-Board Charger (OBC).
  • Air Conditioning Systems: Powering EV compressors.
  • Oil Pumps: Powering auxiliary electric pumps.
  • Electric Heating (PTC): Reliable power for cabin heating systems.
  • Other Auxiliary Equipment: PDU (Power Distribution Unit) branches.

Small Square Series HVIL Connector 800V 46A Waterproof Plug For New Energy Vehicles

#Tags

HVIL Connector, High Voltage Connector, New Energy Vehicle Parts, Power Distribution Connector, 800V DC Connector
