2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV
Specifications
Brand Name :
Ritian
Model Number :
HV 2PIN Connector I
Certification :
CE
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000 PCS / Month
Delivery Time :
5-8 days for the samples, 15-25 days for bulk
Packaging Details :
Neutral Carton or Customized
Color :
Orange
Orientation :
Straight (180°)
Gender :
Plug & Socket (Male/Female)
Interface :
Snap-lock + Crimp terminals
Key Features :
High Voltage Interlock (HVIL) compatible
Application Fields :
Battery Pack, PDU, OBC, BESS
Description

2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV


Product Definition

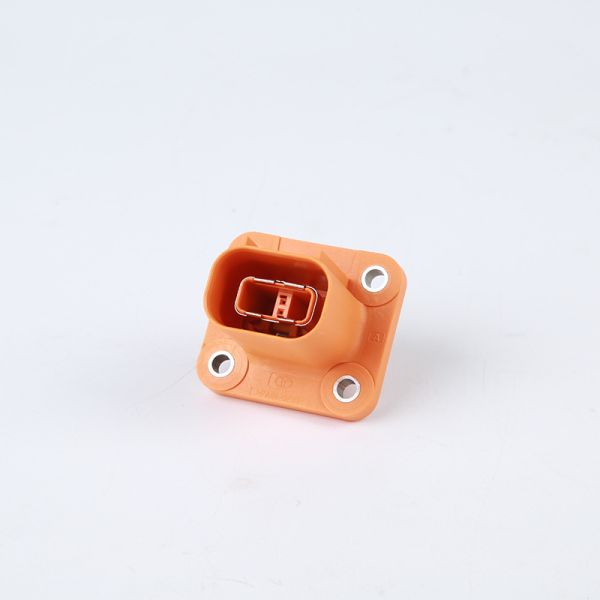

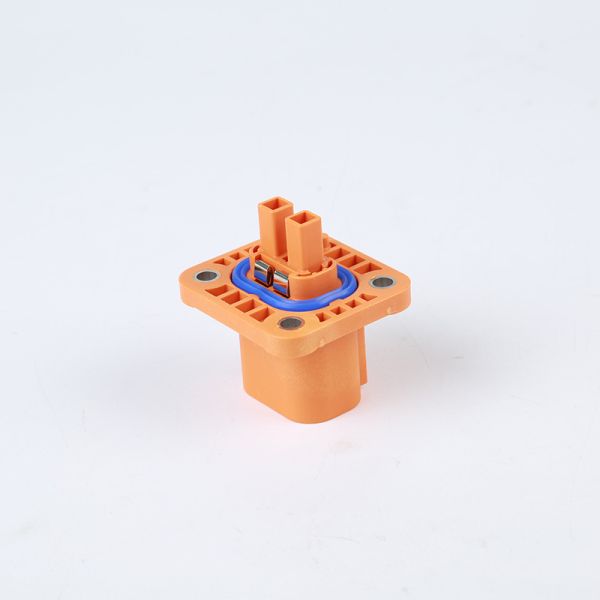

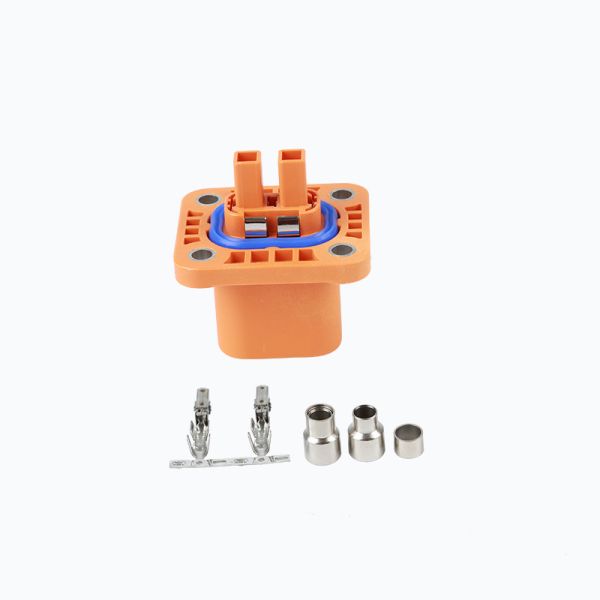

This is a 2-pin (two-core) high-voltage straight plug connector designed for new energy electric vehicles (NEVs/EVs), energy storage systems, and other high-voltage power transmission applications. It features a robust orange housing (HV safety standard), waterproof and dustproof design, and a straight inline mating interface with crimp or snap-lock connection. Ideal for reliable, safe, and vibration-resistant high-voltage connections in demanding automotive and industrial environments.


2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV

Technical Parameters: 2-pin high voltage connector

Parameter Specification
Number of Pins 2 Pin (2-Core)
Connector Type Straight Plug

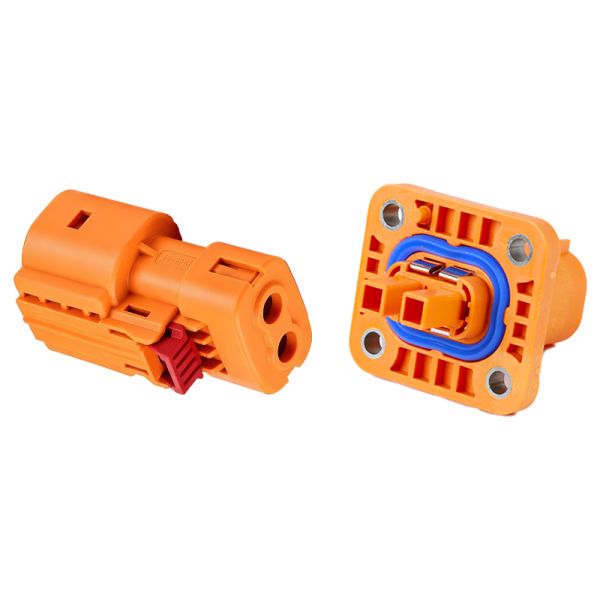

Gender Male Plug (can pair with Female Socket)
Rated Voltage High Voltage (typically 600V~1500V DC)
Rated Current Small to Medium Current (typically 20-60A)
Color Orange (HV Standard)

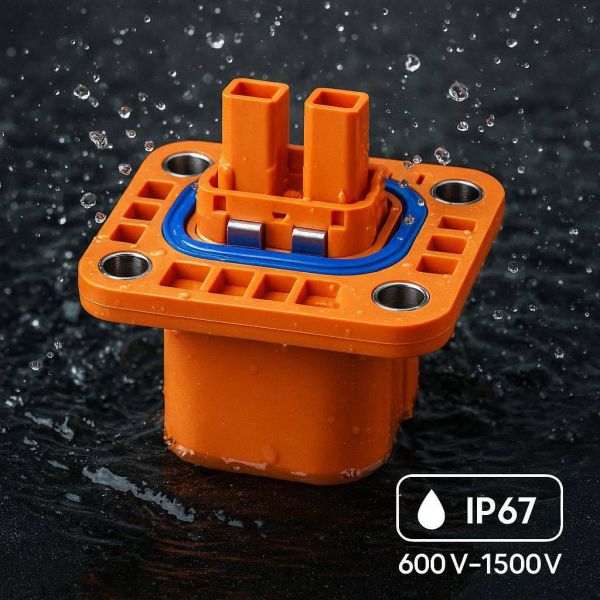

Protection Level IP67 / IP6K9K Waterproof & Dustproof

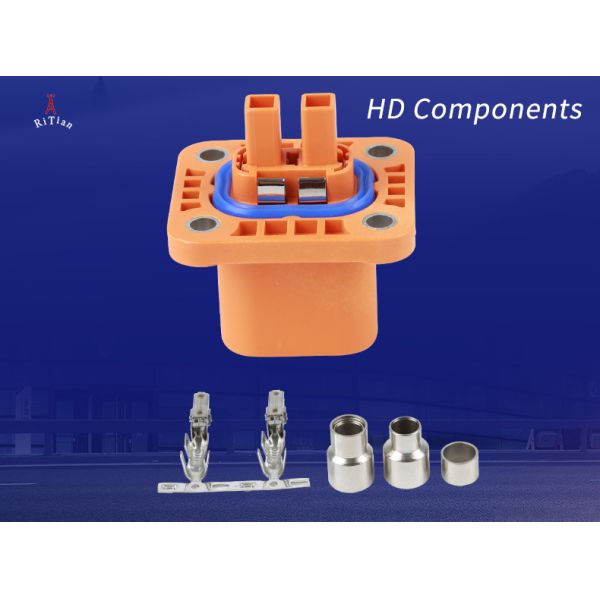

Connection Method Crimp / Snap Buckle (Tool-free)
Operating Temperature -40°C ~ +125°C / +130°C
Housing Material High-performance Flame-retardant Plastic
Application New Energy Vehicle, Energy Storage, Rail


Key Features

  1. High Voltage Safety: Orange HV warning color, excellent insulation, and touch-proof design.
  2. Excellent Waterproof Performance: IP67 or higher rating, suitable for harsh outdoor and automotive conditions.
  3. Straight Plug Design: Easy direct insertion, space-saving for compact wiring harnesses.
  4. Quick & Reliable Connection: Crimp/snap buckle (免焊接卡扣), tool-free assembly, secondary locking mechanism.
  5. Durable & Vibration Resistant: High-quality engineering plastics and seals for long-term reliability in vehicles.
  6. Cost Effective Bulk Pricing: Competitive wholesale price with high stock availability.
  7. Wide Application: Perfect for EV battery systems, motor controllers, chargers, and energy storage.

2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV

2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV

2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV

2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV

Application Scenarios

  • Battery Pack to PDU / Motor Controller connections in electric vehicles
  • On-Board Charger (OBC), DC-DC Converter, Air Conditioning Compressor
  • Energy Storage Systems (BESS) high-voltage wiring
  • Rail transit and commercial electric vehicles
  • High-voltage power distribution boxes and wiring harnesses
  • Any application requiring waterproof, high-voltage, vibration-resistant 2-pin connections

2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV

2 Core HV Small Current Straight Plug Waterproof Connector for EV/NEV

#Tags / Keywords

high voltage connector, 2 pin HV connector, EV high voltage plug, new energy vehicle connector, straight plug connector
