Specifications
Brand Name :
Ritian
Model Number :
8mm Series HVIL Connector
Certification :
CE
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000 PCS / Month
Delivery Time :
5-8 days for the samples, 15-25 days for bulk
Packaging Details :
Neutral Carton or Customized
Series name :
8mm Series HVIL New Energy Connector Assembly
Contact Type :
New Energy Power Connector
Gender :
Plug & Socket (Male/Female)
HVIL Function :
Active high-voltage interlock for enhanced safety.
Touch Protection :
IPXXB protection when unmated.
Cable Options :
Compatible with shielded cables 25/35/50mm².
Mounting Options :

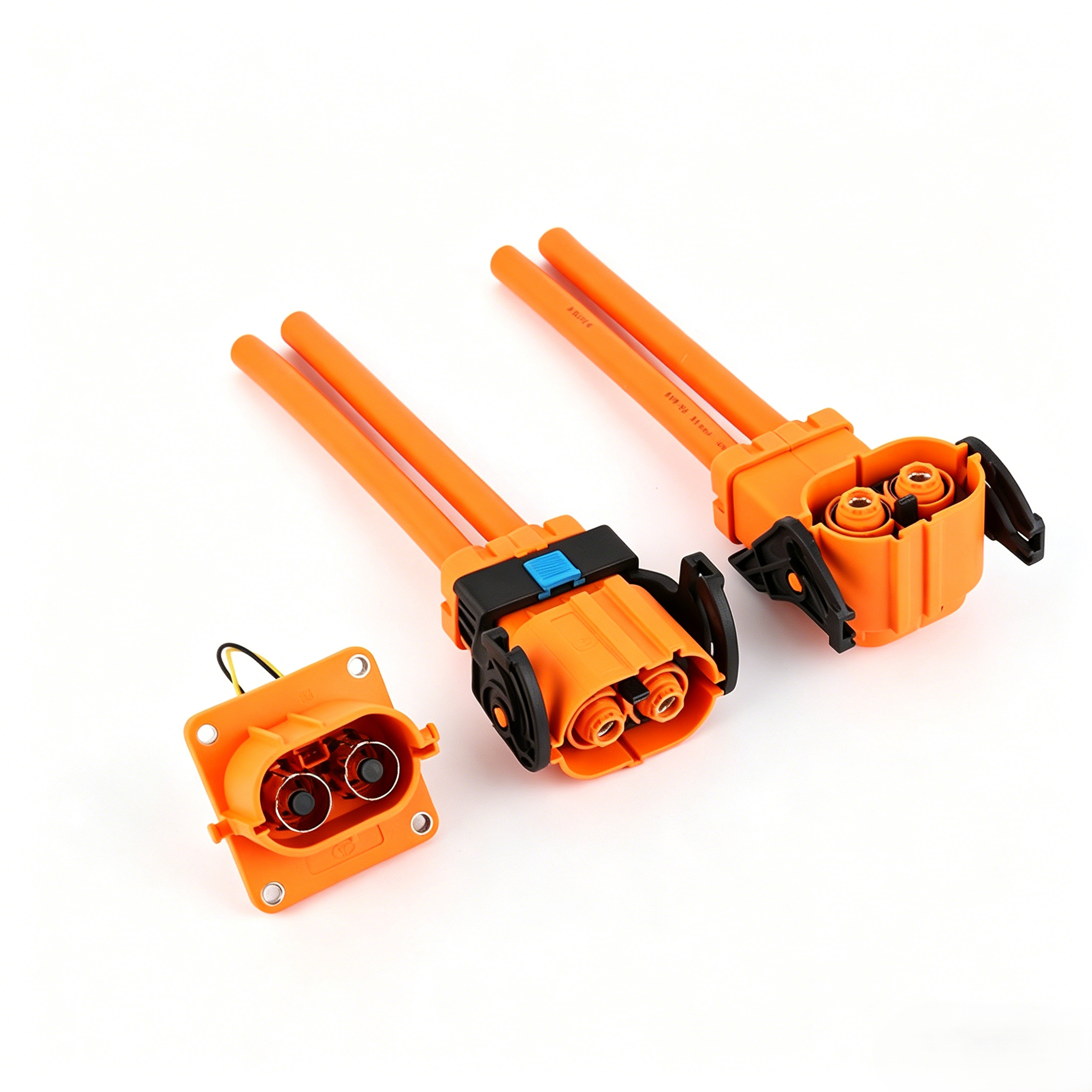

Inline, right-angle, and panel-mount versions available.
Visual Safety :
Bright orange housing for immediate high-voltage identification.
Application :
Battery System Connections, Power-train Interfaces, On-board Power Components, Power Distribution
Description

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System


Product Definition

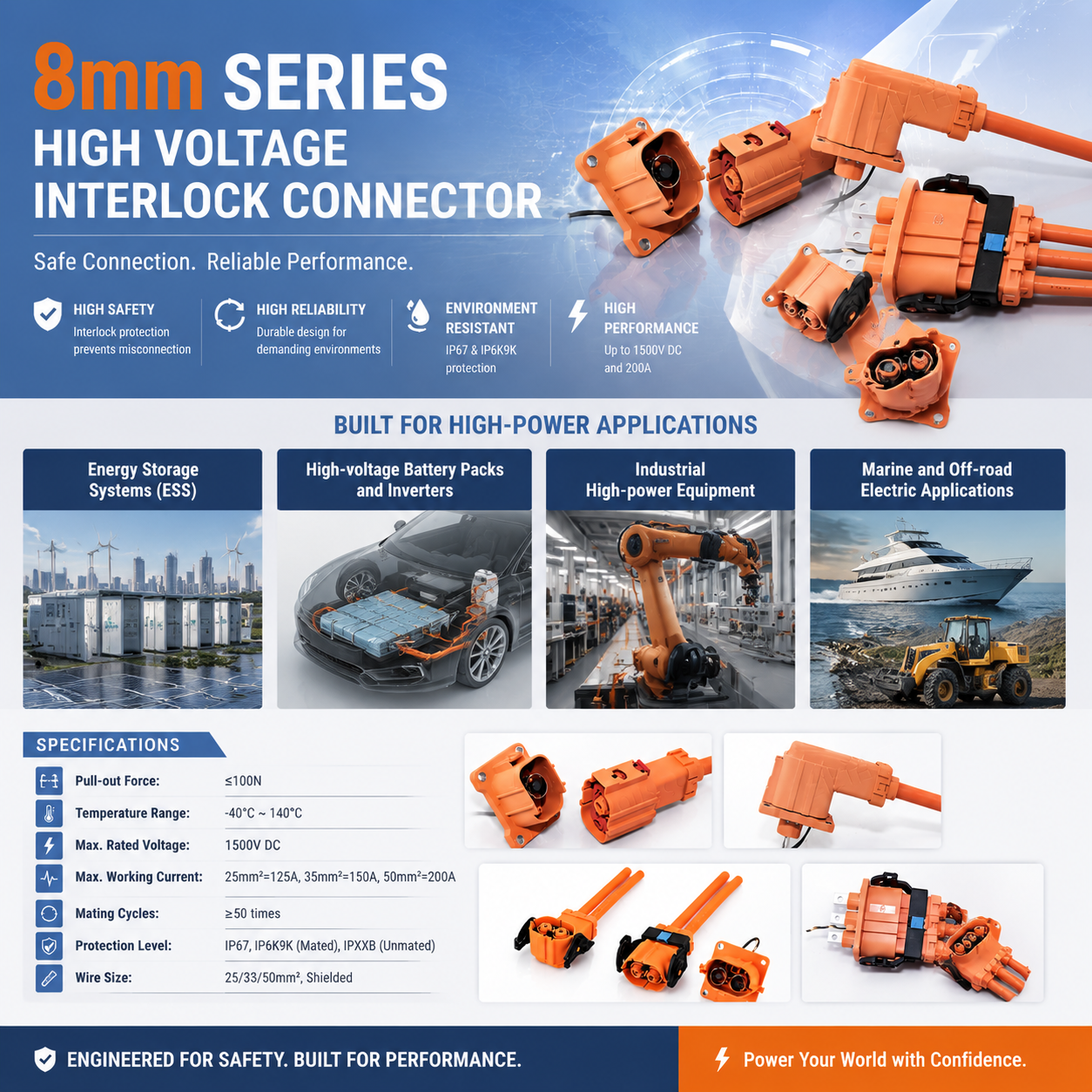

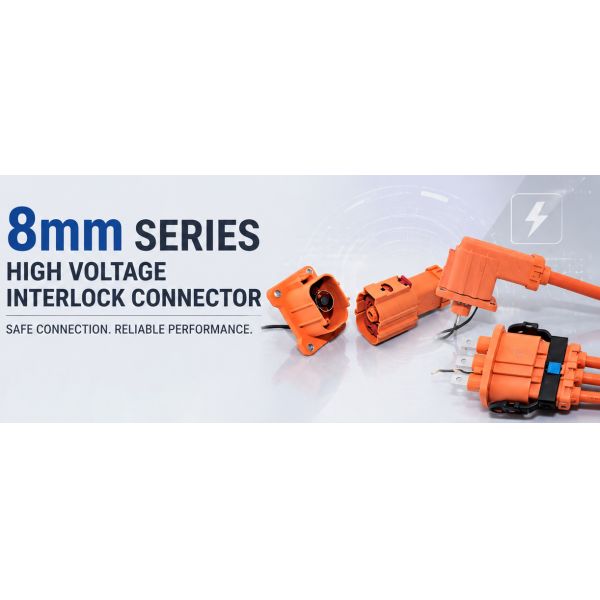

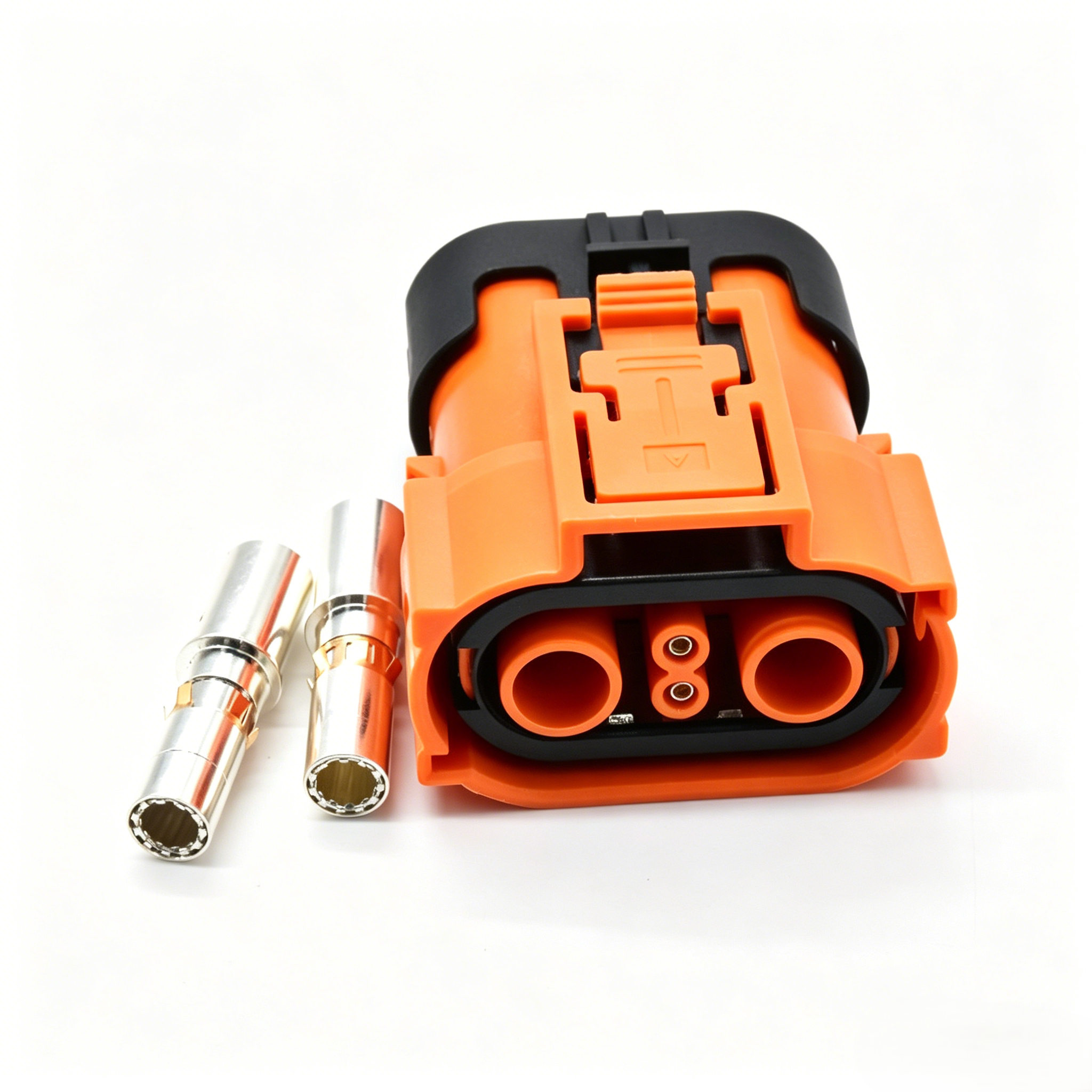

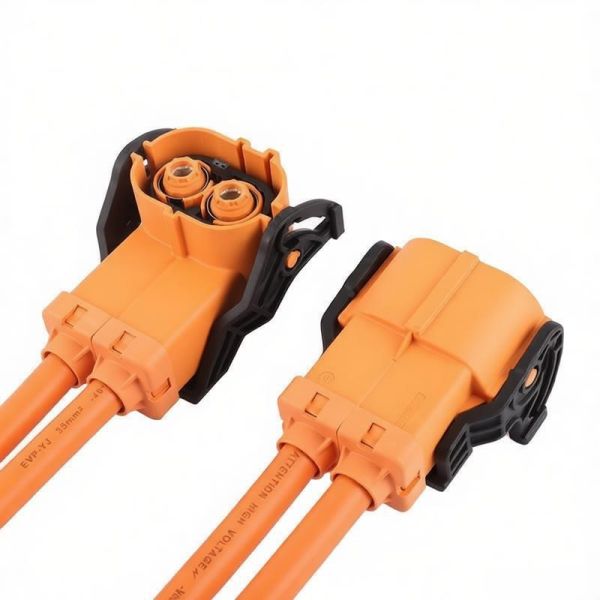

The 8mm Series High-Voltage Interlocking Connector is a robust, shielded HVIL (High Voltage Inter-Lock) connector designed for safe and reliable power transmission in high-voltage electrical systems. Engineered for demanding environments, it features excellent mechanical strength, high current-carrying capacity, and superior environmental protection. Its compact 8mm interface and orange high-voltage safety coloring make it ideal for electric vehicles (EVs), hybrid vehicles, energy storage systems, and industrial high-voltage applications.


1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System

Technical Parameters: 8mm HVIL Connector Assembly

Parameter Specification
Pull-out Force ≤ 100N
Temperature Range -40°C ~ +140°C
Rated Voltage 1500V DC
Rated Current 25mm² = 125A 35mm² = 150A 50mm² = 200A
Mating Cycles ≥ 50 times
Protection Rating IP67 / IP6K9K (mated) IPXXB (unmated)
Cable Cross-section 25mm² / 35mm² / 50mm² (shielded)
Interface 8mm
Housing Material High-performance engineering plastic
Color High-Voltage Orange

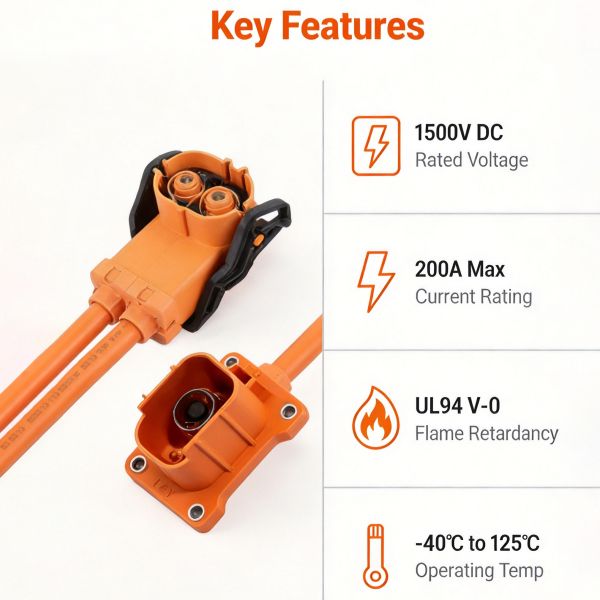

Key Features

  1. High Safety Performance: Integrated HVIL (High Voltage Interlock) mechanism ensures safe connection and disconnection of high-voltage circuits.
  2. Excellent Environmental Resistance: IP67/IP6K9K rating provides dustproof, waterproof, and high-pressure wash-down protection — suitable for harsh outdoor and automotive environments.
  3. Wide Temperature Tolerance: Reliable operation from -40°C to +140°C.
  4. High Current Capacity: Supports up to 200A (50mm²), meeting the power demands of modern electric drivetrains and energy systems.
  5. Strong Mechanical Design: Pull-out force ≤100N with secure locking system for vibration-heavy applications.
  6. Shielded Design: Effective electromagnetic interference (EMI) shielding for clean power transmission.
  7. Compact & Flexible: 8mm interface with multiple straight and right-angle variants for easy system integration.

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System

Application Scenarios

  • Electric Commercial Vehicles (buses, trucks, vans)
  • Passenger Electric Vehicles (BEV/PHEV)
  • Hybrid Electric Systems

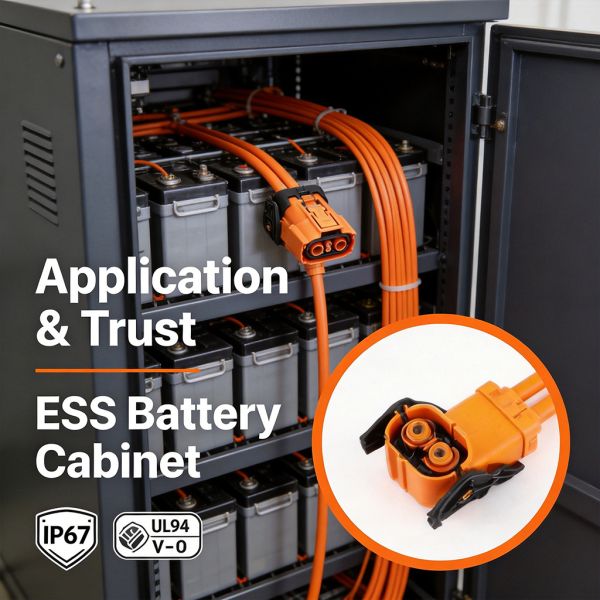

  • Energy Storage Systems (ESS)
  • High-voltage battery packs and inverters
  • Industrial high-power equipment
  • Charging infrastructure (high-power DC charging)
  • Marine and off-road electric applications

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System

#Tags / Keywords

HVIL Connector, High Voltage Connector, 8mm HV connector, 1500V DC connector, New Energy Vehicle Parts, Power Distribution Connector
