Specifications
MOQ :
100 PCS
Contact + Insulation Resistance :
≦10mΩ + ≥100mΩ
IP rating :
Waterproof IP67
Operating temperature & humidity :
-25°C to 70°C & 95% (at 40°C)
Model Number :
RT-BP-7P-HYB-IP67
Place of Origin :
CHINA
Price :
Depends on length & MOQ, welcome your inquiry
Durability :
≥ 3000 Cycles, Corrosion resistant, Vibration proof
Application :
Electric motorcycles, scooters, e-bikes, and BMS systems
Voltage rating :
500V AC (Supports wide range)
Brand Name :
RITIAN
Material :
High-temperature resistant plastic & Gold-plated copper alloy
Packaging Details :
Neutral Carton or Customized Package
Delivery Time :
5-8 days for the samples, 15-25 days for bulk
Certification :
CE
Lockingmechanism :
Latch / Screw type
Payment Terms :
T/T
Supply Ability :
30000 PCS / Month
Cable compatibility :
AWG 12-22
Connector gender :
Male / Female (Complete Set)
Description

Product Overview

1. The 2+5 Pin Waterproof Battery Connector (7-pin hybrid design) is an industrial-grade IP67 waterproof power and signal connector designed for electric vehicles, lithium battery packs, and BMS (Battery Management System) applications.

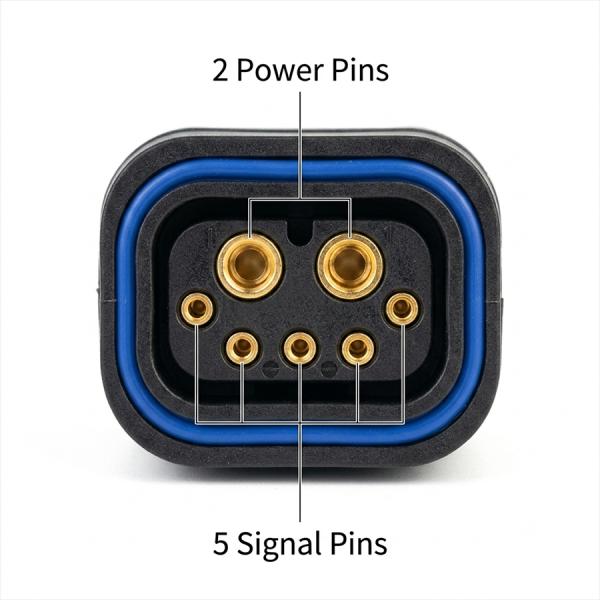

2. It integrates 2 high-current power pins + 5 signal pins, enabling safe and stable power transmission and data communication in compact energy systems such as e-bikes, scooters, and energy storage batteries.

3. Built with gold-plated contacts and high-strength engineering housing, this connector ensures excellent conductivity, corrosion resistance, and long-term durability in harsh environments.

2+5 Pin Waterproof Battery Connector IP67 for E-Bike & BMS System

Key Features & Benefits

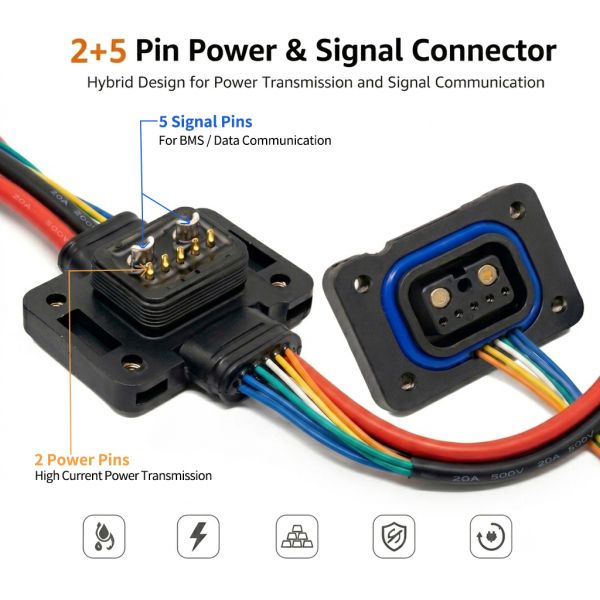

  • Hybrid 2+5 Pin Design – Combines power transmission and BMS signal communication in one connector

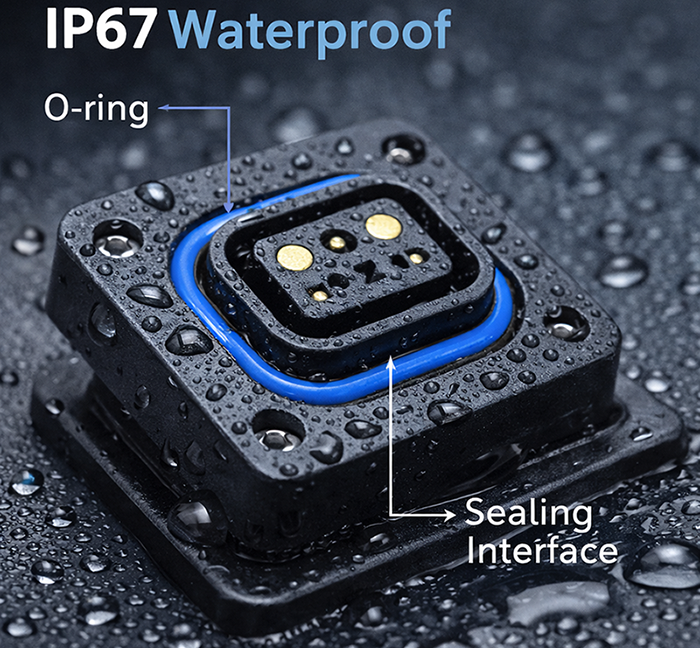

  • IP67 Waterproof Protection – Suitable for outdoor EV and energy storage environments
  • High Current Capacity (Up to 20A) – Stable charging and discharging performance
  • Gold-Plated Contacts – Low resistance and long-term reliability
  • 500V Voltage Rating – Supports high-voltage lithium battery systems
  • 3000+ Mating Cycles – Industrial durability for frequent plugging/unplugging
  • Secure Locking Mechanism – Anti-vibration design for e-bike and scooter applications

2+5 Pin Waterproof Battery Connector IP67 for E-Bike & BMS System

Technical Parameters

Technical Parameter Specification Value
Model Series 2+5 Pin / 7 Pin Hybrid Connector
Rated Load 500V AC; Power Pin: 20A / Signal Pin: 3A
Operating Temperature -25°C to +70°C
Operating Humidity 95% (at 40°C)
Contact Resistance ≤10mΩ
Insulation Resistance ≥100mΩ
Withstand Voltage 500V AC (50Hz) for 1 minute
Insertion & Extraction Force 20N to 60N
Mechanical Mating Life ≥3000 cycles
Application Type Battery Pack / BMS / EV Charging

2+5 Pin Waterproof Battery Connector IP67 for E-Bike & BMS System2+5 Pin Waterproof Battery Connector IP67 for E-Bike & BMS System

2+5 Pin Waterproof Battery Connector IP67 for E-Bike & BMS System2+5 Pin Waterproof Battery Connector IP67 for E-Bike & BMS System

Application Scenarios

  • Electric Bikes (E-Bikes) battery charging systems
  • Electric Scooters & Light EV power systems
  • Lithium Battery Packs (48V / 60V / 72V systems)
  • Battery Management Systems (BMS signal interface)
  • Energy Storage Systems (ESS)
  • Portable Power Stations
  • Industrial automation power modules

2+5 Pin Waterproof Battery Connector IP67 for E-Bike & BMS System2+5 Pin Waterproof Battery Connector IP67 for E-Bike & BMS System

Frequently Asking Questions (FAQ)

Q1: What is a 2+5 pin battery connector used for?

A1: It is used for combining power transmission and BMS signal communication in lithium battery systems.

Q2: Is this connector waterproof?

A2: Yes, it is rated IP67 waterproof, suitable for outdoor electric vehicles and battery packs.

Q3: Can it support high current charging?

A3: Yes, the power pins support up to 20A current for charging and discharging.

Q4: What is the difference between 2+5 pin and normal 2-pin connectors?

A4: 2+5 pin connectors support both power + signal transmission, while 2-pin only handles power.

Q5: Is it compatible with e-bike battery systems?

A5: Yes, it is widely used in e-bike, scooter, and lithium battery pack systems.
