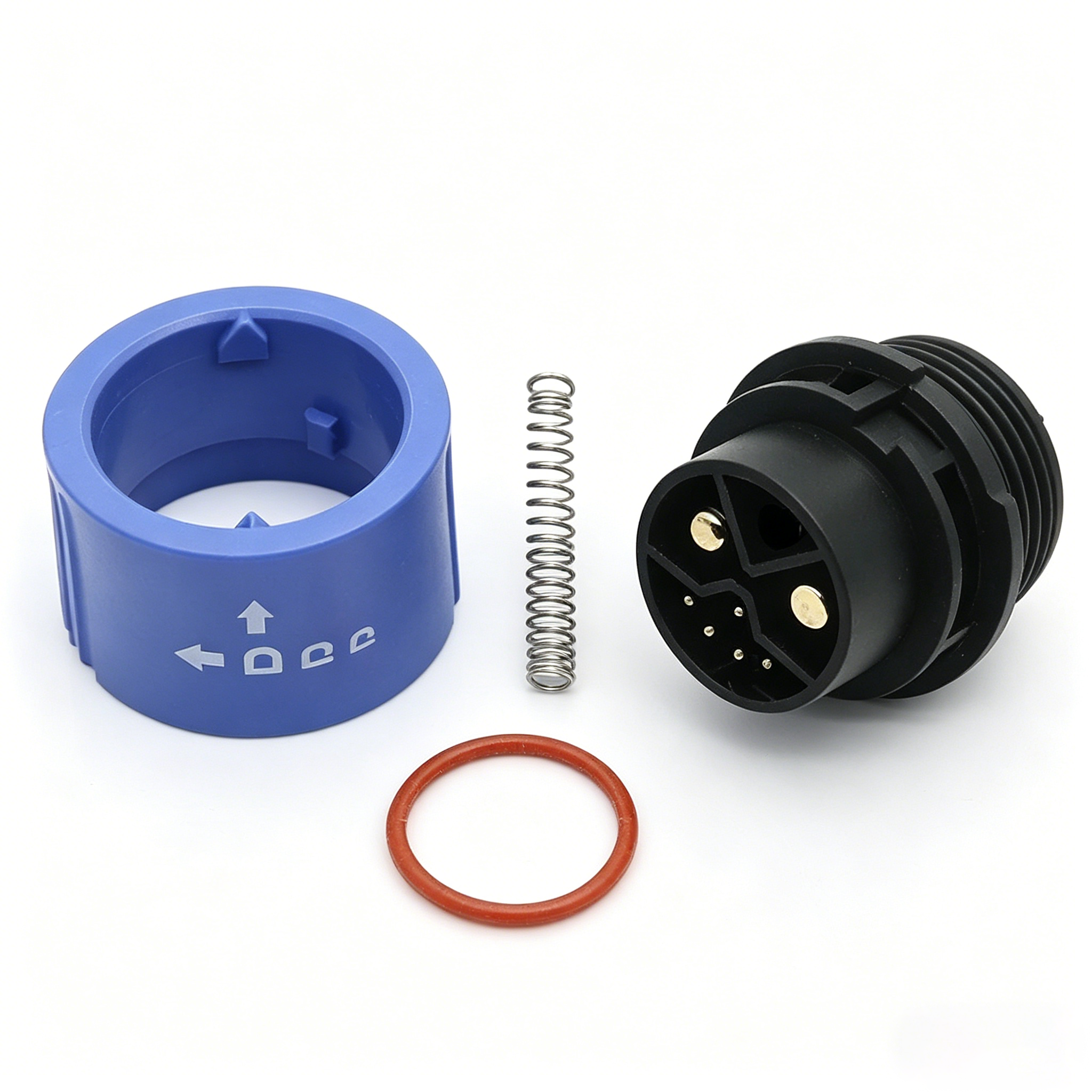

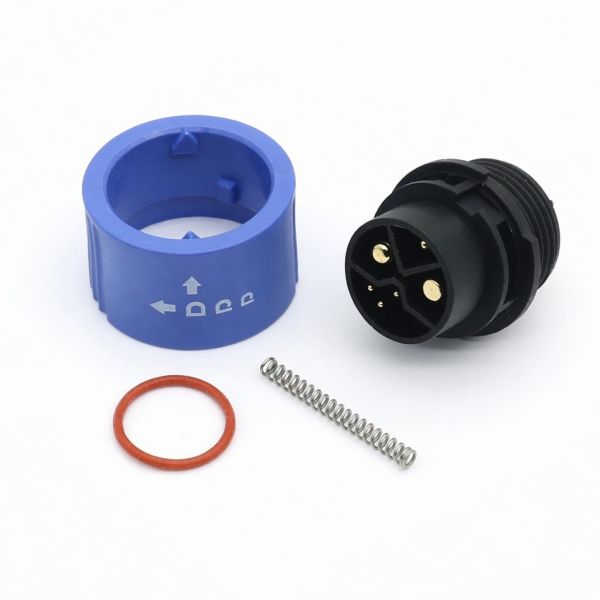

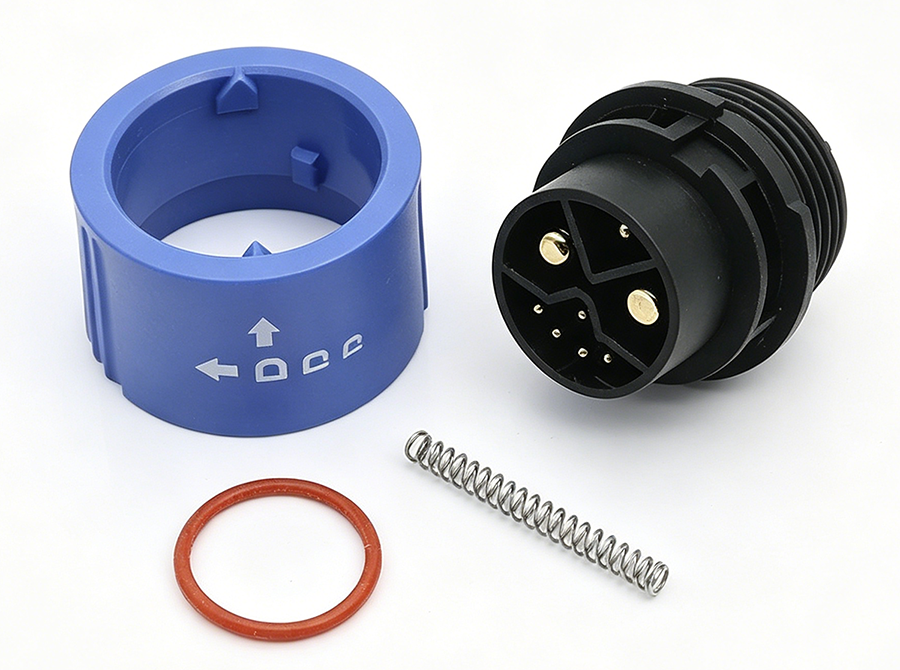

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
Specifications
Price :
Depends on length & MOQ, welcome your inquiry
Packaging Details :
Neutral Carton or Customized Package
Connector Gender :
Male (Plug) / Female (Receptacle)

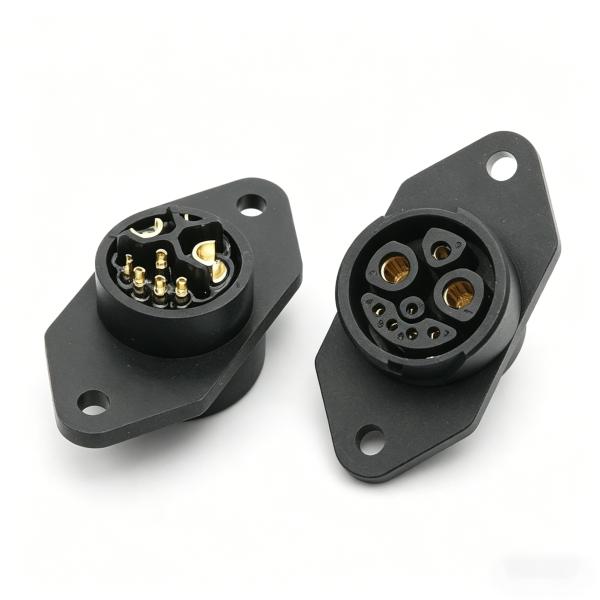

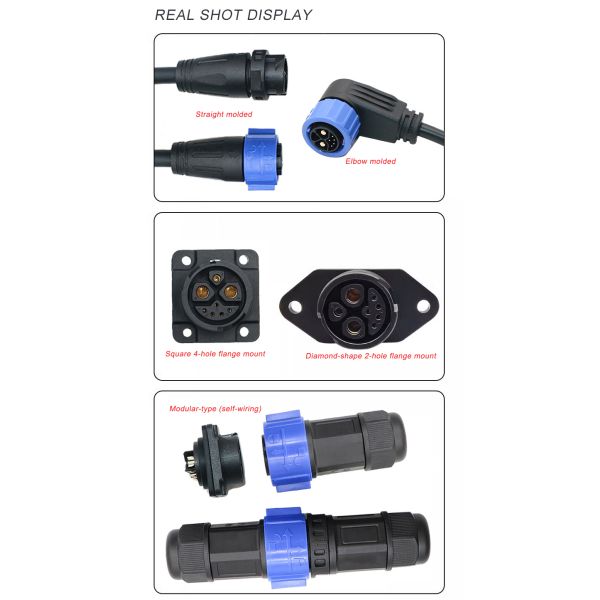

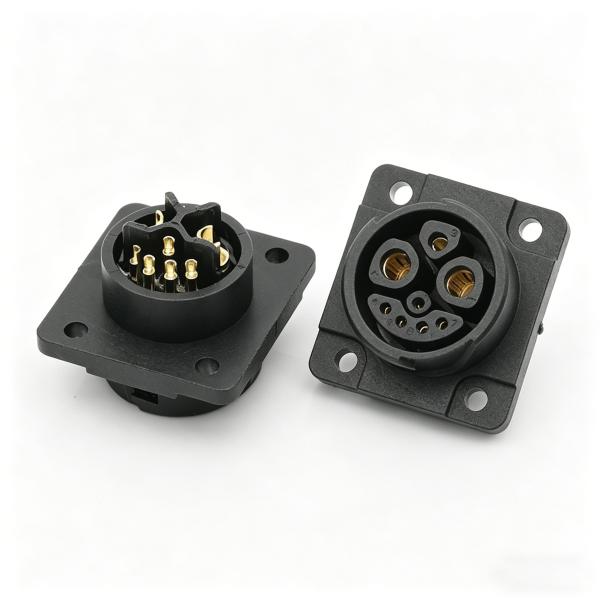

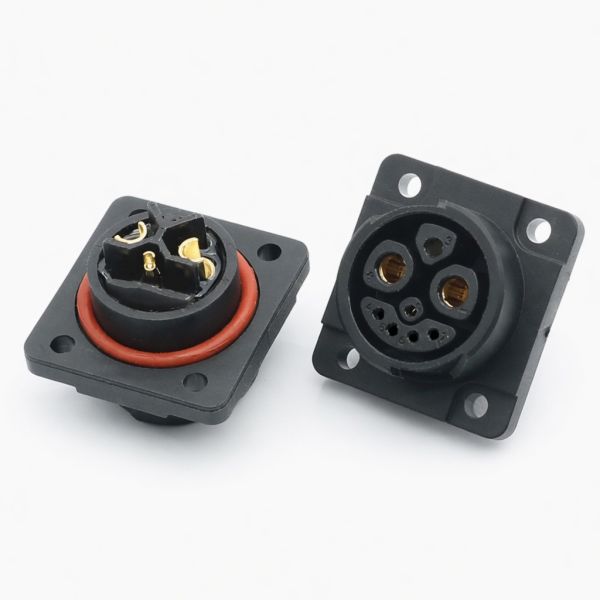

Mounting Type (Female) :
Square Flange / Diamond Flange（4-hole/2-hole)
Application :
New Energy Electric Motorcycles
Suitable Cable Type :
Shielded / Unshielded Power Cable
MOQ :
100 PCS
Supply Ability :
30000 PCS / Month
Operating Temperature :
-25°C ~ +70°C
Delivery Time :
5-8 days for the samples, 15-25 days for bulk
Coupling Mechanism :
Screw Thread (M23)
Brand Name :
RITIAN

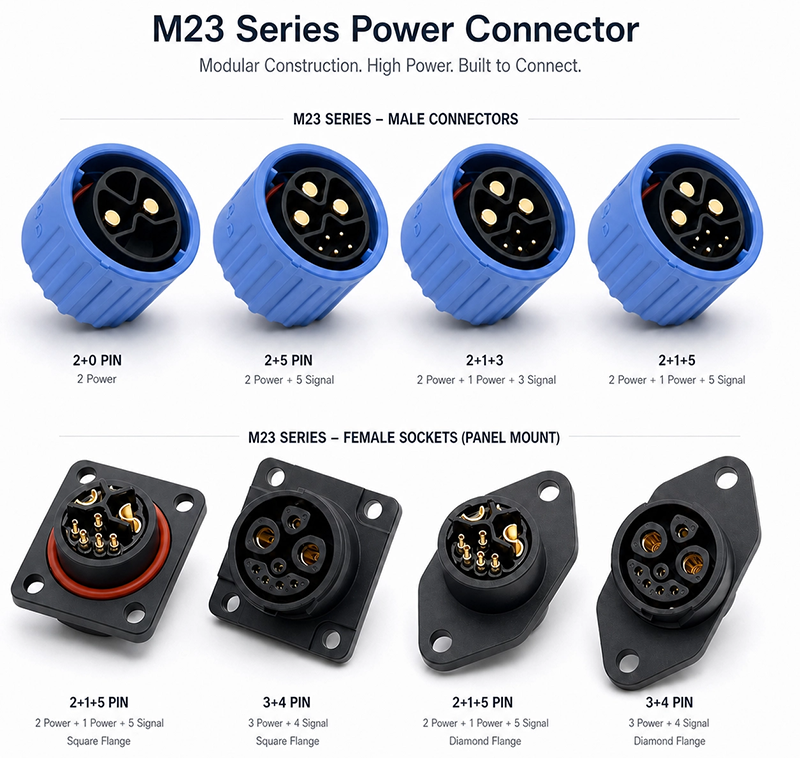

Pin configurations :
2+0 / 2+5 / 2+1+3 / 2+1+5
Payment Terms :
T/T
Model Number :
RIT-M23-30A-WP
Certification :
CE
Contact Material :
Brass with Gold Plating
Place of Origin :
CHINA

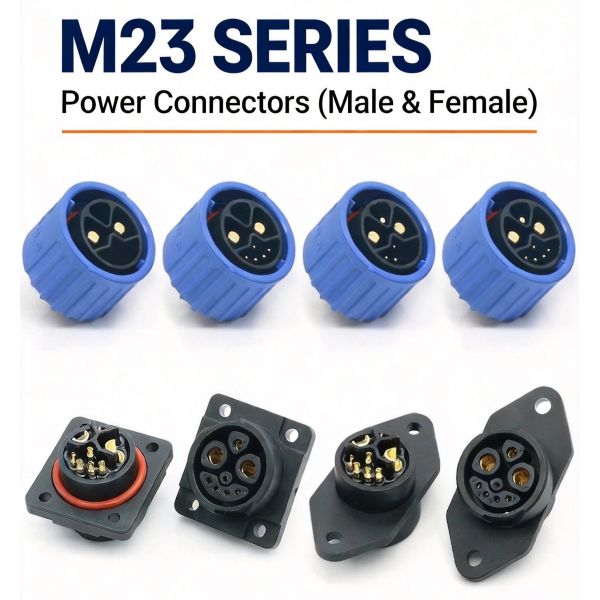

Product Type :
Power Connector (Male & Female)
Description

Product Overview

1. The M23 Waterproof Circular Connector 30A is a heavy-duty industrial-grade power connector designed for electric motorcycles, EV systems, and high-power equipment applications.

2. With a robust metal housing, precision locking mechanism, and IP67/IP68 waterproof protection, this connector ensures stable power transmission even in harsh outdoor and vibration-intensive environments.

3. It is widely used in EV motorcycles, energy storage systems (ESS), industrial automation, and high-current motor drive systems.

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment

Key Features & Benefits

  • 30A High Current Capacity – Stable power transmission for high-load EV systems
  • IP67/IP68 Waterproof Protection – Resistant to rain, dust, and harsh environments
  • M23 Threaded Locking System – Anti-vibration secure connection design
  • Heavy-Duty Metal Housing – Industrial-grade durability for long lifecycle use
  • Multi-Pin Configuration (2–19 pins optional) – Supports power + signal hybrid transmission
  • High Temperature Resistance (-40°C to +125°C) – Suitable for EV and outdoor systems
  • Gold-Plated Contacts – Low resistance, high conductivity, anti-corrosion

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment

Technical Parameters

Parameter Specification
Rated Voltage DC 300V
Rated Current 30A
Rated Load DC 300V / 30A
Insertion Force 20.60N
Contact Resistance ≤ 10 mΩ
Insulation Resistance ≥ 100 MΩ
Withstand Voltage AC 2000V (50Hz) / 1 min
Durability ≥ 3000 mating cycles
Operating Temperature -25°C ~ +70°C
Relative Humidity 90% (40°C)
Salt Spray Test 72 hours
Pin Configuration 3 Power + PE (4 pins total)
Coupling Threaded screw coupling
Housing Material High-performance engineering plastic
Contact Material Gold-plated copper
Protection Rating IP67 / IP68 (when mated)

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment

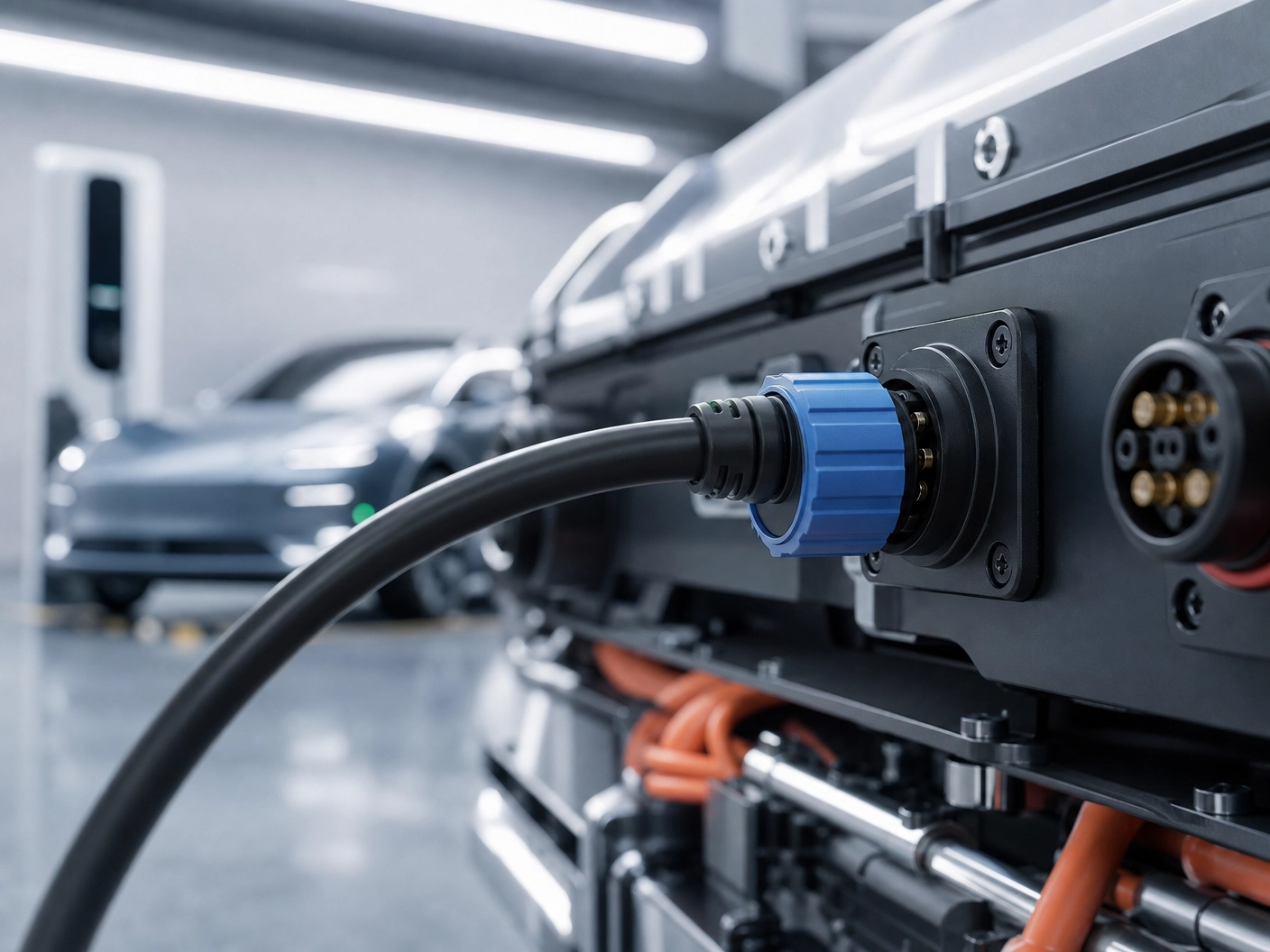

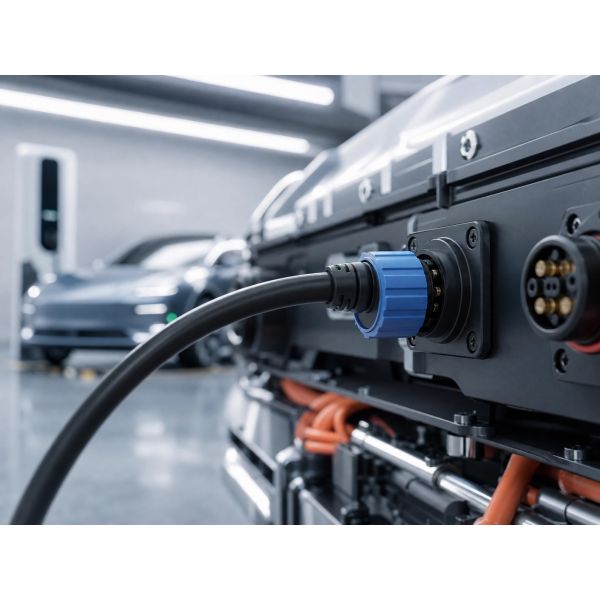

Application Scenoris

  • Electric Motorcycles & E-Bikes
  • EV Battery Pack Connection Systems
  • Energy Storage Systems (ESS)
  • Industrial Motor Drives & Servo Systems
  • CNC Machinery & Automation Equipment
  • Outdoor Power Distribution Systems
  • Robotics Power & Signal Interfaces

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment

Frequently Asking Questions(FAQ)

Q1: What is the current rating of the M23 connector?

A1: It supports up to 30A high current transmission, suitable for EV and industrial power systems.

Q2: Is the M23 connector waterproof?

A2: Yes, it supports IP67/IP68 waterproof rating, suitable for outdoor and harsh environments.

Q3: Can it be used in electric motorcycles?

A3: Yes, it is widely used in electric motorcycles, scooters, and EV battery systems.

Q4: Does it support signal transmission?

A4: Yes, multi-pin versions support power + signal hybrid transmission.

Q5: What is the locking mechanism?

A5: It uses a threaded M23 screw locking system for vibration resistance.
