Specifications
Price :
Depends on length & MOQ, welcome your inquiry
Scenarios Used for :
Industrial Machinery, Power Distribution Systems, Automated Manufacturing, etc.
Packaging Details :
Neutral Carton or Customized Package
Brand Name :
RITIAN
Durability :
≥ 3000 Cycles, Corrosion resistant, Vibration proof
Model Number :
RT-AC2P6-40A-72V
MOQ :
100 PCS
Payment Terms :
T/T
Relative Humidity :
≤ 98% (at 40°C)
Model Series :
AC Power Socket Series
Delivery Time :
5-8 days for the samples, 15-25 days for bulk
Certification :
CE
Supply Ability :
30000 PCS / Month
Withstand Voltage :
≥ 72V
Place of Origin :
CHINA
Temperature Resistance :
-15°C to 65°C
Description

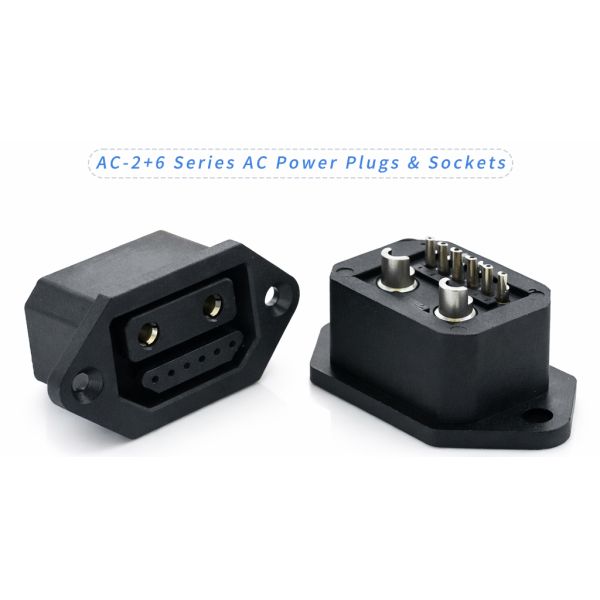

Product Overview

1. The 40A AC 2+6 Power Socket is a high-performance hybrid industrial connector designed for stable power transmission (40A high current) and integrated signal communication (6-pin control interface).

2. Engineered for demanding environments such as energy storage systems (ESS), electric vehicles, industrial automation, and battery management systems (BMS), this connector ensures long-term reliability with 72V voltage withstand capability and over 3000 mating cycles lifespan.

3. Its compact hybrid design reduces wiring complexity while improving system integration efficiency in modern electrical architectures.

40A AC 2+6 Power Socket Connector 72V 3000 Cycles Industrial

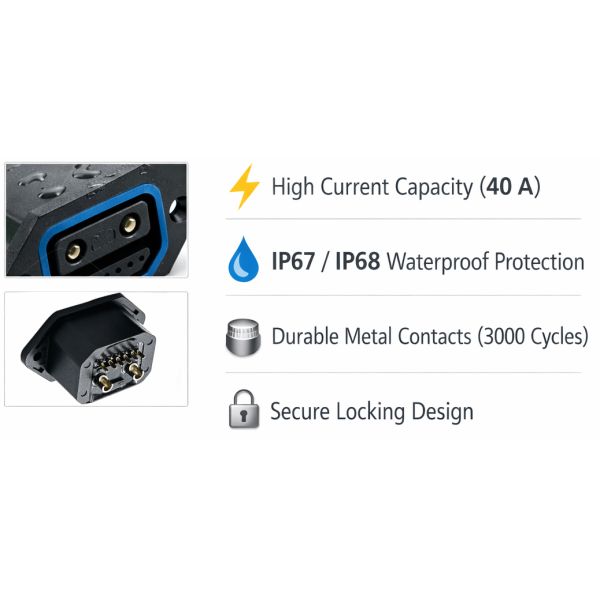

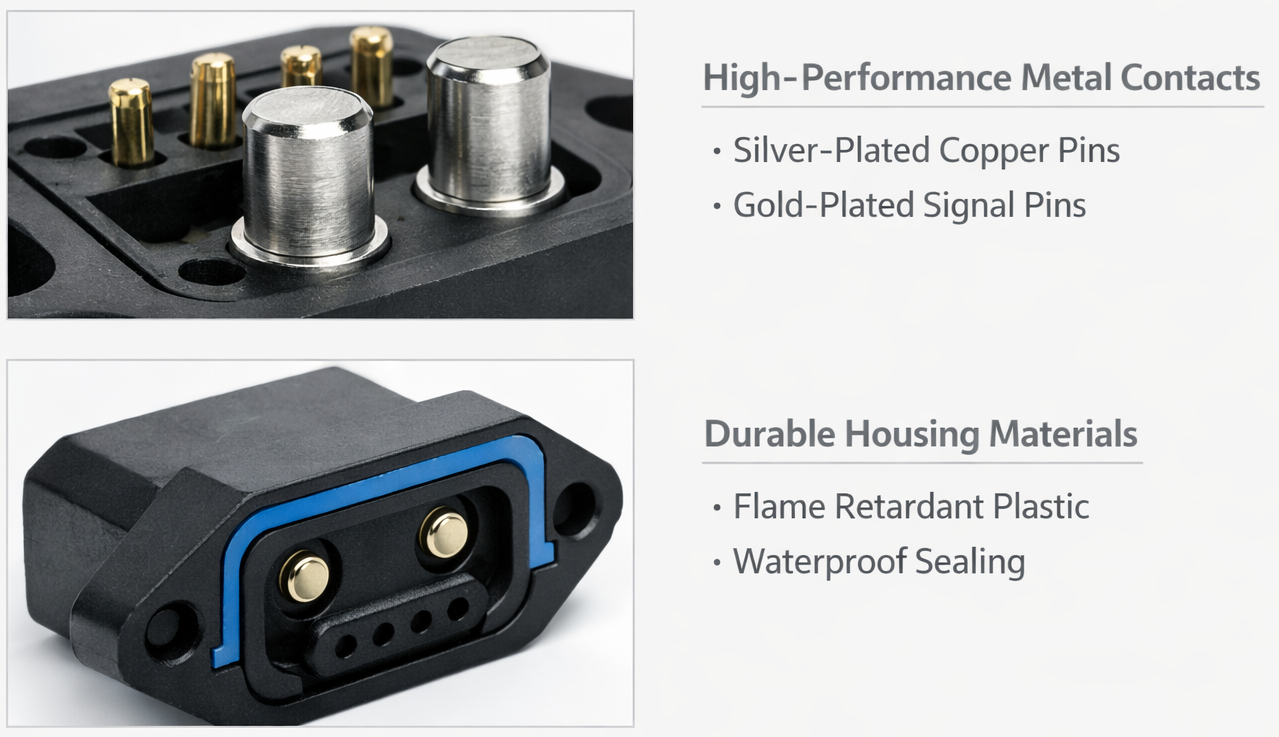

Key Features & Benefits

  • 40A High Current Capacity – Stable power delivery for industrial and EV-grade systems
  • 2+6 Hybrid Design – Combines power and signal in a single compact interface
  • 72V Withstand Voltage Safety Design – Enhanced insulation performance for system protection
  • 3000+ Mating Cycles – Long mechanical life for high-frequency connection systems
  • Low Contact Resistance Design – Reduces heat buildup during continuous operation
  • Industrial Grade Housing Material – Resistant to vibration, dust, and mechanical stress
  • Space-Saving Integration Design – Reduces cable complexity in BMS and power modules

40A AC 2+6 Power Socket Connector 72V 3000 Cycles Industrial

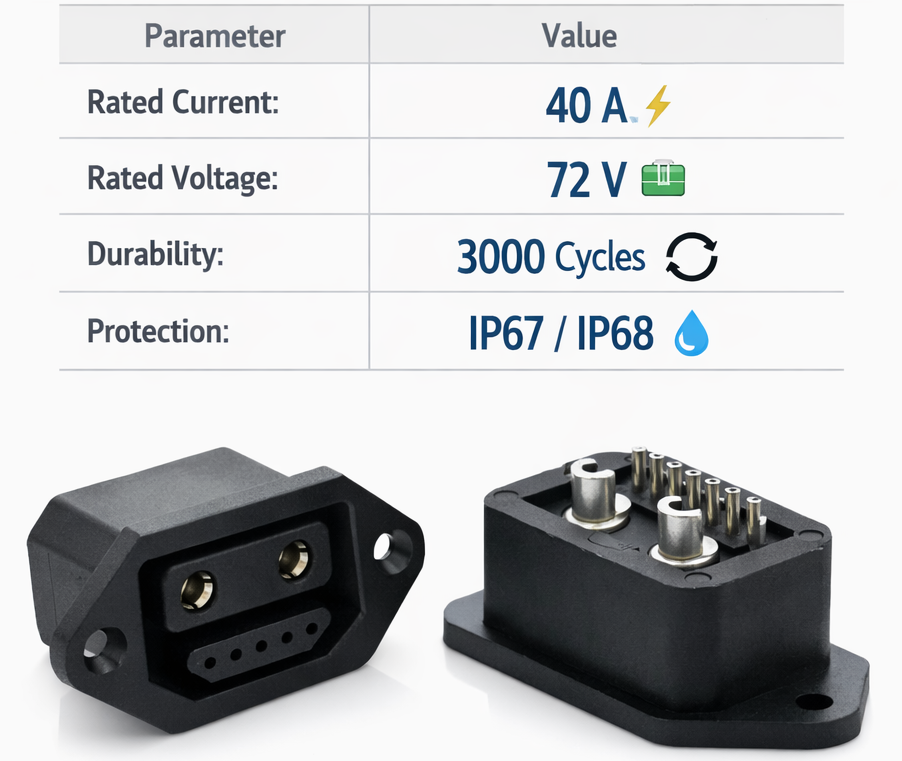

Technical Parameters

No.ParametersValues
1Rated Current40A for main pins; 5A for small signal pins
2Withstand Voltage≤ 72V AC/DC
3Signal Current5A–10A (Signal Pins)
4Withstand Voltage≥ 72V (Insulation test)
5Insulation Resistance≥ 500MΩ
6Initial Contact Resistance≤ 10mΩ
7Operating Temperature-15℃ ~ 65℃
8Relative Humidity≤ 98% (at 40℃)
9Mechanical Lifespan≥ 3000 mating cycles
10Pin Configuration2 Power + 6 Signal
11Application TypeHybrid Power & Signal Connector

40A AC 2+6 Power Socket Connector 72V 3000 Cycles Industrial
40A AC 2+6 Power Socket Connector 72V 3000 Cycles Industrial
40A AC 2+6 Power Socket Connector 72V 3000 Cycles Industrial
40A AC 2+6 Power Socket Connector 72V 3000 Cycles Industrial

Application Scenarios

This connector is widely used in:

  • Electric Vehicle Battery Systems (EV / LEV)
  • Battery Management Systems (BMS connectors)
  • Energy Storage Systems (ESS / Solar storage)
  • Industrial Automation Equipment
  • AGV / Robotics Power Modules
  • Portable Power Stations
  • Industrial Control Cabinets

40A AC 2+6 Power Socket Connector 72V 3000 Cycles Industrial

Frequently Asking Questions (FAQ)


Q1: What is the main advantage of the 2+6 hybrid design?
A1: It integrates both power transmission and signal communication in one connector, reducing wiring complexity and improving system reliability.

Q2: Can this connector support EV battery systems?
A2: Yes, it is designed for EV and energy storage systems requiring stable 40A power and signal control integration.

Q3: What does the 3000 mating cycles mean?
A3: It means the connector can be plugged and unplugged more than 3000 times while maintaining stable electrical performance.

Q4: Is this connector waterproof?
A4: Depending on configuration, it can be upgraded to IP65/IP67 protection for harsh environments.

Q5: Can the model be customized?
A5: Yes, current rating, pin configuration, cable length, and housing structure can be customized for OEM projects.
