1500V DC 350A High Voltage Interlock Terminal Connector For Energy Storage Systems

The 350A HVIL terminal connector descriptions

Which is a robust, color-coded (black/orange) DC power connector engineered for safe, high-current, high-voltage connections in energy storage and new energy systems. It features copper contacts for superior conductivity, flame-retardant V0 plastic insulation, and an IP54-rated housing. Rated for 1500V DC and 350A maximum current, it delivers reliable performance in harsh environments (-40°C to 125°C) with built-in keying to prevent mis-mating, making it ideal for battery packs, inverters, and power distribution units.

#Keywords

high voltage connector, 350A connector, HV interlock connector, energy storage connector, new energy connector, battery connector, EV high voltage terminal, busbar connector, DC power connector, HVIL connector, 1500V DC 350A high voltage interlock connector for energy storage systems, IP54 rated 350A copper busbar high voltage terminal -40°C to 125°C, C-type copper row connector flame retardant V0 CE certified, 350A HVIL connector for new energy battery packs, black orange keying high voltage DC terminal connector

Compactiable Features

1. 350A MAX continuous current capacity for high-power DC applications
2. 1500V DC high-voltage rating with excellent dielectric strength (5000V AC withstand)
3. Wide operating temperature range (-40°C to 125°C) and IP54 protection for demanding environments
4. V0 flame-retardant housing and CE certification for superior safety and compliance
5. Color-coded keying (black/orange) prevents mis-mating and enhances interlock safety
6. Copper contacts deliver low resistance and high efficiency
7. Robust mechanical performance: vibration (QC/T 1067.1-2017) and 30g shock resistance
8. Easy bolt-on terminal design for fast, secure installation

Parameters chart

Installation Method --- Panel/surface mount installation

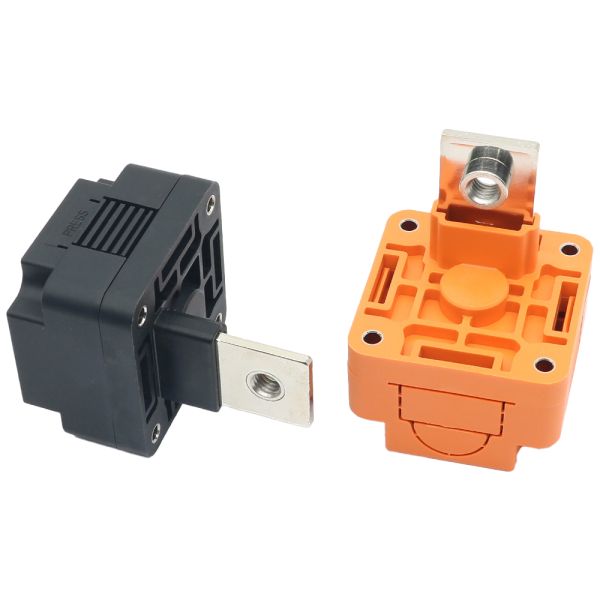

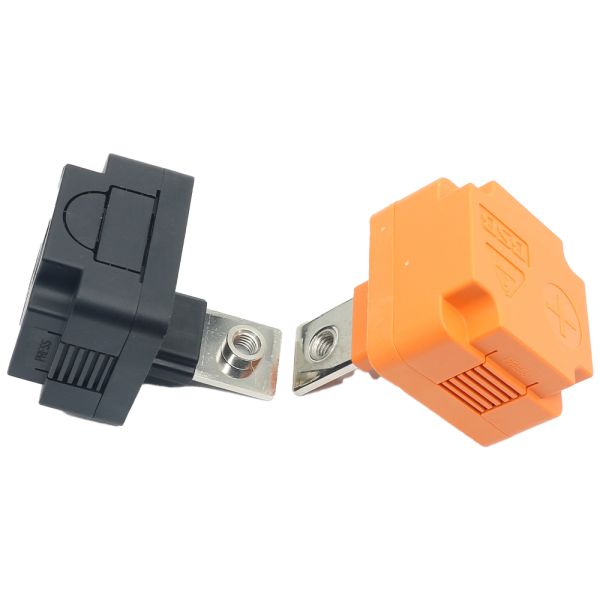

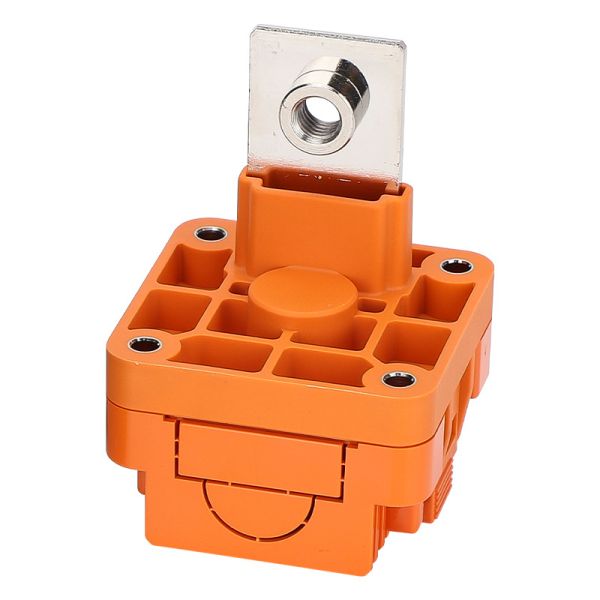

The orange housing is fixed to the equipment panel or enclosure using four corner mounting holes with screws. The integrated metal terminal (threaded stud or through-hole on top) is bolted directly to a copper busbar or power cable lug. The black mating connector inserts into the orange base with a secure press-fit/snap-in connection (labeled “PRESS”). Color-coded keying ensures correct polarity and prevents incorrect mating. No special tools required beyond standard fasteners.

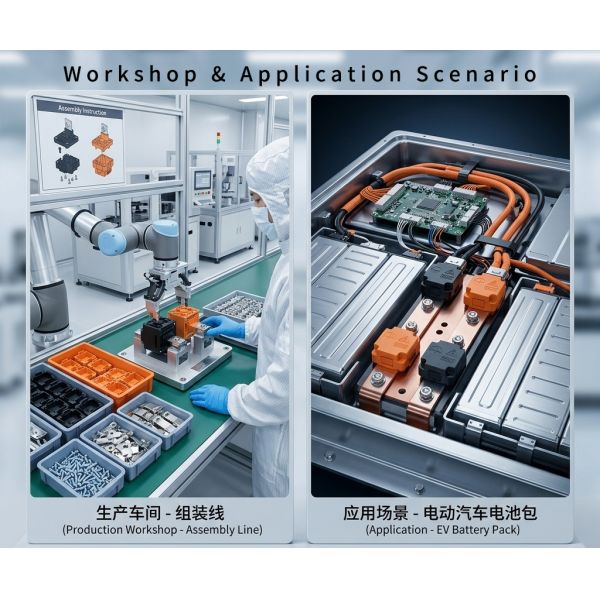

Application Scenario

• Battery Energy Storage Systems (BESS)
• Electric Vehicle (EV) battery packs and high-voltage power distribution
• Solar and wind energy storage inverters
• Grid-scale renewable energy integration
• Industrial DC power supplies and converters
• High-power DC charging stations
• Any high-voltage DC connection requiring secure interlocking, high current, and reliable environmental protection
