MC4 Solar PV Connectors Panel Mount with Female and Male Plug for New Energy Solutions
MC4 Connector definition
MC4 solar pv connectors are an essential component of photovoltaic systems, primarily used to connect solar panels to one another, as well as to inverters or combiner boxes.
Main Advantage
- Plug and Play: Simple installation; quick assembly without the need for complex tools.
- Weatherproof: Exceptionally designed for outdoor use with a lifespan of over 20 years.
- Security: Features a self-locking latch design to prevent accidental disconnection due to force or vibration, thereby eliminating the risk of arcing.



Note: If you need to assemble these components onto cables, be sure to use professional MC4 crimping pliers to ensure reliable contact under high current conditions.
Technical Specification
| Parameter |
Specification |
| Product Model |
PV-RT014 |
| Wire Size Range |
5mm2 (approx. 10-12AWG) |
| Current Rating |
30A |
| Voltage Rating |
12V - 24V (System up to 1000V/1500V) |
| Contact Material |
Copper, Tin plated |
| Insulation Material |
PPO / PC |
| Waterproof Resistant |
IP68 |
| Safety Class |
Class II |
| Temperature Range |
-40°C to +90°C |
| Locking System |
Snap-in |



Application Scenarios

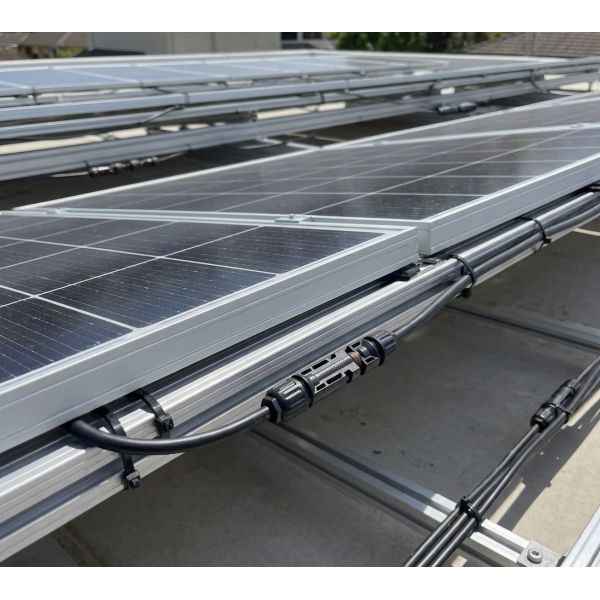

- Solar Array Wiring: Designed to connect multiple solar panels in series (to increase voltage) or in parallel (to increase current), forming a complete solar power array.
- Energy Storage Systems: As refer to the specification chart above, cable is commonly used to connect solar panels to portable power stations (outdoor power sources), battery banks, or controllers.
- Inverter Connection: Transfers DC power from the solar array to the DC input of the inverter, where it is converted to AC power for household use or grid connection.
- RV & Marine Solar: Because of their corrosion-resistant and waterproof properties, these cables are widely used for installing solar panels on RV roofs and boat decks.

FQA:
- Low MOQ: It can meet your business very well.
- Great after-services: We treat you as our friends.
- Packaging: Package will do after several discussions with you.
- Competitve price: The products are directly from our factory. So it saves a lot secondary cost.
- Good quality: The MP only will start after you confirm the samples and the MP products will do 100% inspection before shipping.
- OEM accepted: Please send us your design and other important information. OEM are always welcome.
