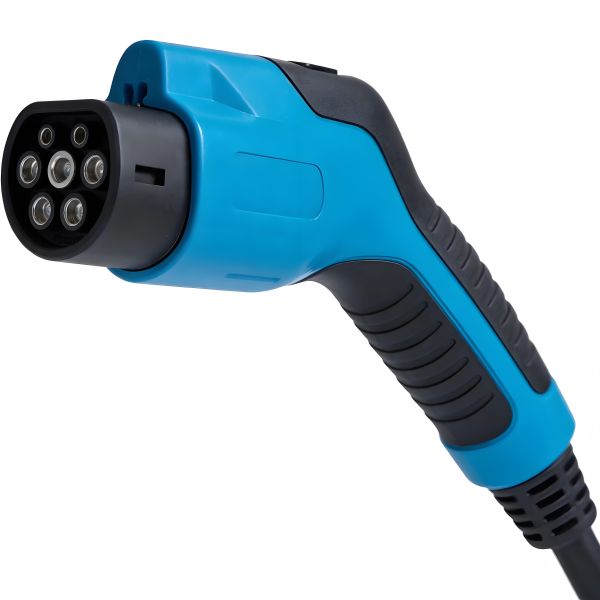

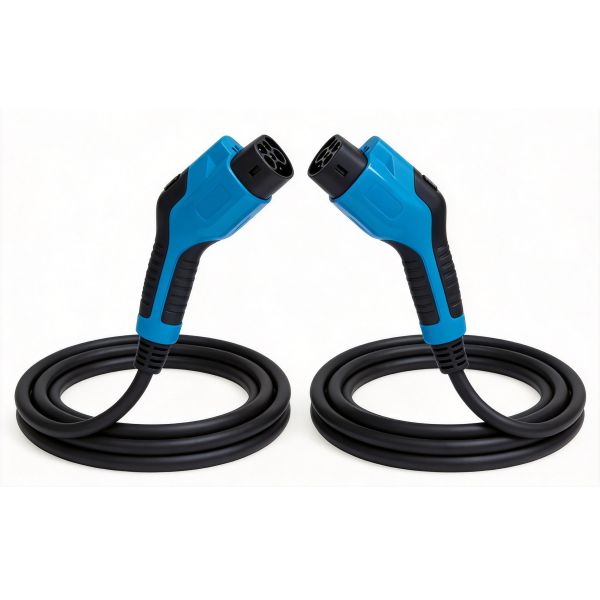

IEC 62196-2 Type 2 EV Charging Cable 16A 32A 3-Phase 22kW Electric Vehicle Charger Plug for EVSE Station

Type 2 AC Charger

This is a common AC charging standard in Europe, characterized by a 7-pin (or sometimes 5-pin) connector, it supports single-phase or three-phase AC charging and is widely used for home and public charging stations.

Features 1: Strictly complies with the IEC 62196-2 (Type 2 / Mennekes) standard.

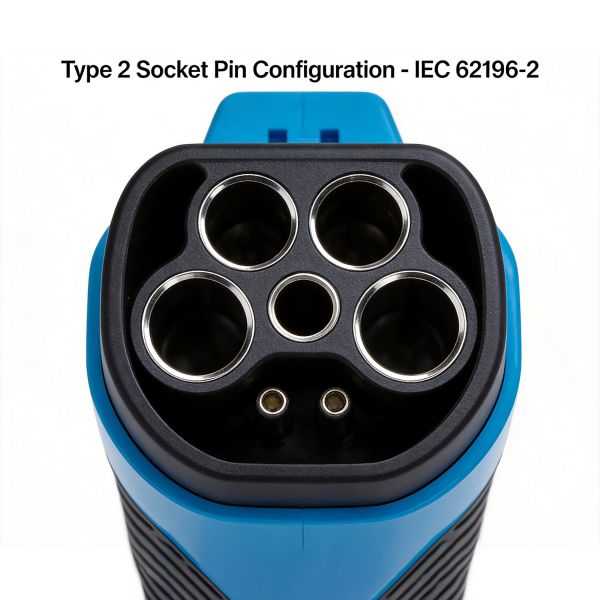

---Perfectly compatible with European automotive connectors, features a 7-pin configuration and supports both single-phase and three-phase charging.

Features 2: High-performance power delivery, which supports 43kW(63A) super-high power transimission.

---With flexible coverage across multiple specifications—16A, 32A, and 63A—and charging power ranging from 7.4 kW (single-phase) to 22 kW/43 kW (three-phase), it meets all charging needs, from home slow charging to commercial fast charging.

Features 3: Industrial-grade durability with over 10,000times plug-in/out merchanical lifespan.

---Constructed from high-strength housing materials, it offers exceptional mechanical performance; with a voltage withstand rating of up to 2000V, it ensures stable connections even under long-term, frequent use, thereby reducing operators’ long-term maintenance costs.

Features 4: Robust Environmental Protection on IP44 Rating and Wide Operating Temperature Range.
---Capable of operating normally in extreme climates ranging from -30°C to +50°C. Charging safety is guaranteed whether in frigid winters or tropical summers. The housing offers excellent dust and water resistance.

Features 5: Enhanced Safety Features: High Insulation Resistance (>1000 MΩ) and Low Temperature Rise Control (<50 K).

1) Lower heat generation: Temperature rise is kept within 50K during full-load operation, effectively extending cable life and preventing the risk of overheating;

2) Smart Commnuication: Integrates PWM (Control Pilot) control signals to enable a precise handshake protocol between the charging station and the vehicle, ensuring that current is transmitted safely.

Connector & Cable Assembly FAQ

Q1: Can your connectors/cable assemblies be customized? What is the minimum order quantity (MOQ)?

A: We support full-category customization, and can provide exclusive design and prototyping according to your drawings, parameters (electrical/mechanical/environmental performance) and application scenarios(compliant with MIL-spec automotive/medical standards). The MOQ for standard products is as low as 500pcs, and the MOQ for customized parts is negotiated based on product complexity. We accept both small-batch trial orders and large-volume orders.

Q2: What is the service life, temperature resistance, waterproof and other environmental performance of the products?

A: The full range of products can provide different protection levels (such as IP67/IP68 waterproof), wide temperature range (-40℃~+85℃ and above), high vibration/impact resistance as required. All products have passed the full electrical, mechanical and environmental performance tests in the laboratory, ensuring long-term stable use in complex working conditions such as industry, compliant with MIL-spec standards and automotive.

Q3: What are the application fields of your products? Are they suitable for my industry?

A: Our core coverage includes 7 major fields: data communication, industrial control, new energy, medical electronics, equipment manufacturing, with MIL-spec standards supporting, and automotive wiring harness.

Q4: What are the production lead times for standard and customized products?

A: The regular lead time for standard products is 3-7 working days; the prototyping cycle for customized parts is 7-15 working days, and the mass production cycle is 15-30 working days. We can coordinate priority production scheduling according to your urgent order requirements.

Q5: What is the product quality control process? How to ensure quality?

A: From mold design, raw material procurement, production and processing to finished product delivery, the whole process is strictly controlled. Equipped with professional online testing equipment and modern laboratories, 100% full inspection of electrical, mechanical and environmental performance ensures stable and reliable product quality. Complete test reports and quality traceability are available after sales.
