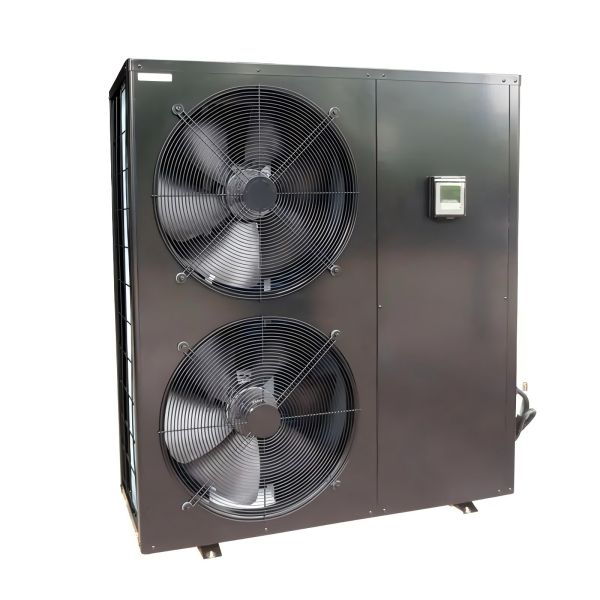

High Efficiency Air Source Heat Pump Swimming Pool Heater with 380V/3N/50Hz Power and Copeland Compressor
High Efficiency Air Source Heat Pump Swimming Pool Heater with 380V/3N/50Hz Power and Copeland Compressor
Specifications
Brand Name :
Meidibao
Model Number :
M-D25ADH
Certification :
CE
Place of Origin :
China
MOQ :
6units
Price :
negotiate a price
Payment Terms :
T/T
Supply Ability :
20units a day
Delivery Time :
25-30 days
Packaging Details :
Factory standard
Color :
Galvanized
Power :
380V/3N/50Hz
Operation Condition :
-30°C-40°C
Compressor :
Copeland
Fan Direction :
Side
Description
Air Source Heat Pump Swimming Pool Machine High Efficiency Heat Pump Pool Heater

The Meidibao Air Source Heat Pump Swimming Pool Machine is engineered for efficient and reliable pool heating, using cutting-edge inverter technology and high-performance components. Ideal for both residential and commercial pools, this unit provides stable water temperatures with low energy consumption and environmentally friendly operation.

Applications
  • Residential Heating: Warm up homes effectively without skyrocketing energy bills.
  • Commercial Spaces: Ideal for offices, hotels, and retail stores requiring consistent, efficient heating.
  • Industrial Use: Suited for large-scale heating needs in warehouses or factories.
  • Swimming Pools: Maintain pool water at a comfortable temperature year-round.
Features
  • High Energy Efficiency
  • Durable Design
  • Low Noise Operation
  • Smart Controller
  • Eco-Friendly Refrigerant
Specifications
Model M-D25ADH
Heating Capacity Range 10.8-36 kW (36849-122832 BTU/h)
Heating Power Input Range 2.5-9.5 kW
Cooling Capacity Range 6.5-21.6 kW (22178-73699 BTU/h)
Cooling Power Input Range 2.1-8.8 kW
Frequency 30-90 Hz
ErP level(35℃) A++
ErP level(55℃) A+
Power Supply 3N 380V 50HZ
Max. Running Current 21.8 A
Refrigerant Type R410A
Refrigerant Quantity 3.3 kg
Compressor Brand Mitsubishi Electric
Water Pump Brand WiLo
Water Connection 1"
Water Flow 6.2 m³/h
Water Pressure Drop 10 kPa
Water Pump Head 11.8 m
Fan Motor Quantity 2
Motor Power Input(max) 136 W
Motor Power Input(min) 18 W
Fan Speed (max) 850 rpm
Fan Speed (min) 300 rpm
Pressure Sensor 1 0-20 Bar
Pressure Sensor 2 0-45 Bar
Noise 58 dB(A)
Net Weight 183 kg
Gross Weight 235 kg
Net Dimension(L/W/H) 1370×580×1525 mm
Shipping Dimension(L/W/H) 1480×690×1690 mm

Under ideal weather conditions, heat pump water heaters produce three times the energy used to power the heat pump. In other words, heat pump water heaters use one-third of the electricity of conventional electric water heaters. CUB estimates that the average residential customer would save a lot of money per month using a MEIDIBAO heat pump water heater.
