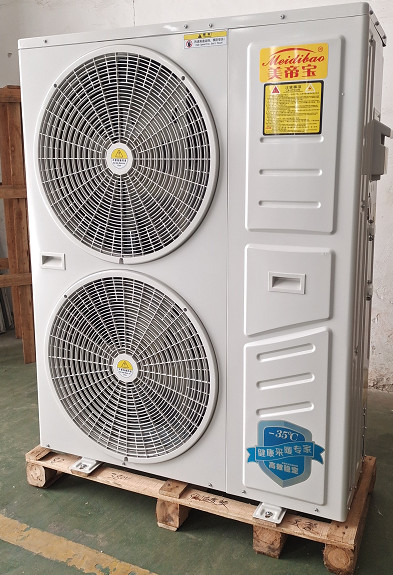

18KW Low Ambient EVI Heat Pump with Quiet Operation and Inverter Technology
18KW Low Ambient EVI Heat Pump with Quiet Operation and Inverter Technology
Specifications
Brand Name :
MEIDIBAO
Model Number :
M-D18AEH
Certification :
CE
Place of Origin :
China
MOQ :
5 units
Payment Terms :
T/T
Price :
negotiate a price
Supply Ability :
50 units day
Delivery Time :
25-30 work days
Packaging Details :
plywood box or Plywood box
Name :
EVI Heat Pump
Model :
M-D18ADH
Place of origin :
China
Refrigerant :
R410
Type :
Inverter
Color :
white,OEM
Description
18KW Low Ambient Heat Pump Inverter Type
Quiet Operation, Space Saving Low Ambient Heat Pump
Product Overview
The Meidibao Fixed Frequency Commercial EVI Series is engineered with advanced technologies to ensure exceptional stability and reliability, effectively handling extreme temperature challenges while maintaining stable operation. The ideal winter temperature range of 18-20℃ is easily achievable with this high-performance system.
Technical Specifications
Model M-D18ADH
Heating Capacity Range 8.2-27 kW (27978-92124 BTU/h)
Heating Power Input Range 1.9-7.1 kW
Cooling Capacity Range 4.9-16.2 kW (16718-55274 BTU/h)
Cooling Power Input Range 1.6-6.5 kW
Frequency 30-90 Hz
ErP Level (35℃) A++
ErP Level (55℃) A+
Power Supply 3N 380V 50HZ
Max. Running Current 14.9 A
Refrigerant Type R410A
Refrigerant Quantity 3.1 kg
Compressor Brand Mitsubishi Electric
Water Pump Brand WiLo
Water Connection 1"
Water Flow 4.6 m³/h
Water Pressure Drop 10 kPa
Water Pump Head 11.8 m
Noise Level 56 dB(A)
Net Weight 188 kg
Gross Weight 243 kg
Net Dimensions (L×W×H) 1078×380×1335 mm
Operating Ambient Temperature -25°C to 43°C
Key Features
  • Compressor: World-famous brand rotary type or fully enclosed vortex compressor with low noise, low vibration, high efficiency, and long service life. Multiple compressors enable automatic unloading at partial load for energy savings.
  • Water Side Heat Exchanger: High-efficiency shell tube or threaded casing heat exchanger with small volume, light weight, easy disassembly, and maximum working pressure of 45kgf/cm². Insulated with 10mm PE to prevent energy loss.
  • Air Side Heat Exchanger: Integral hydrophilic finned inner threaded tube design with large windward area, high heat transfer efficiency, and resistance to oxidation and corrosion. Ensures sufficient heating capacity in cold winter conditions.
  • Low Noise Fan: Domestic famous brand motor with axial impeller design, anti-aging blades, and strict balance experiments for optimal performance and noise control.
  • Housing Materials: Galvanized steel external sheet metal with rust removal, cleaning, drying, and electrostatic spraying for durable, attractive appearance.
Performance Advantages
  • Energy Efficiency: Significantly reduces energy consumption compared to traditional heating and cooling methods
  • Versatility: Provides both heating and cooling functions in one unit for year-round flexibility
  • Environmentally Friendly: Produces fewer emissions and offers sustainable operation
  • Cost Savings: Lower energy bills over time due to efficient operation
  • Quiet Operation: Minimal disturbance to the environment
  • Space-Saving: Consolidates heating and cooling into a single compact unit
  • Fast Response: Quickly adjusts temperature to meet desired settings
  • Improved Indoor Air Quality: Maintains proper humidity levels and filters air
  • Long Lifespan: Durable construction ensures many years of reliable service
  • Easy Control: User-friendly controls for convenient operation and temperature management
Advanced Technology
The Meidibao Fixed Frequency Commercial EVI Series incorporates intelligent defrosting technology that determines defrosting timing based on operating conditions, ambient temperature, and frost thickness. This intelligent approach reduces defrosting time by over 20% while ensuring high heating capacity. The wide adjustment capacity technology provides more accurate water temperature control with smaller temperature fluctuations, eliminating noise and water temperature issues caused by frequent start-stop cycles.
