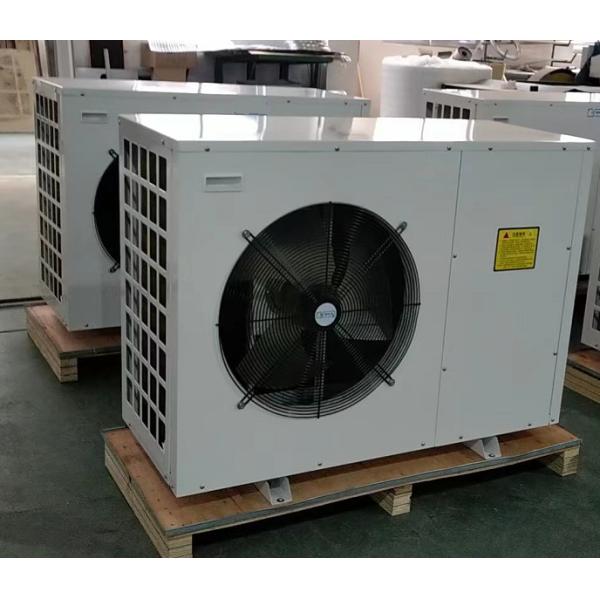

This 10KW low ambient heat pump with R32 refrigerant is designed to provide ideal heating temperatures for residential and commercial spaces. Scientific research shows that from the perspective of health and comfort, the ideal temperature in winter is between 18-20°C.
The ideal heat distribution shows a temperature distribution from floor to ceiling with vertical reduction, which can keep the feet warm and clear-headed. The heat of floor heating rises from the foot, creating a hierarchical temperature distribution throughout the indoor space. This conforms to the traditional Chinese medicine health principle of "warm and cool." Floor heating is an ideal heating method without hot air, which helps maintain body moisture while providing benefits for rheumatism and asthma conditions.
| Model | M-D10AAH | |
|---|---|---|
| Heating Capacity Range | kW | 10 |
| Heating Capacity Range | BTU/h | 34120 |
| Heating Power Input Range | kW | 2.61 |
| Cooling Capacity Range | kW | 6 |
| Cooling Capacity Range | BTU/h | 20472 |
| Cooling Power Input Range | kW | 2.4 |
| Frequency | Hz | 50 |
| ErP level (35℃) | / | A++ |
| ErP level (55℃) | / | A+ |
| Power Supply | / | 1N 220V 50HZ |
| Electric Heater | kW | / |
| Max. Running Current | A | 15.3 |
| Refrigerant Type | / | R410A |
| Refrigerant Quantity | kg | 1.1 |
| Compressor Brand | / | Mitsubishi Electric |
| Water Pump Brand | / | WiLo |
| Water Connection | / | 1" |
| Water Flow | m³/h | 1.72 |
| Water Pressure Drop | kPa | 10 |
| Water Pump Head | m | 8 |
| Fan Motor Quantity | / | 1 |
| Motor Power Input | W | 110 |
| Fan Speed | rpm | 850 |
| Noise | dB(A) | 52 |
| Net Weight | kg | 65 |
| Gross Weight | kg | 98 |
| Net Dimension (L/W/H) | mm | 1030×350×552 |
| Shipping Dimension (L/W/H) | mm | 1140×470×717 |
| Operation Ambient Temp. | ℃ | -25~43℃ |
