24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor
24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor
Specifications
Brand Name :
MEIDIBAO
Model Number :
M-D24ADH
Certification :
CE
Place of Origin :
China
MOQ :
6 units
Price :
negotiate a price
Payment Terms :
T/T
Supply Ability :
20 units day
Delivery Time :
25-30 work days
Packaging Details :
Factory standards
Place of origin :
China
Color :
white,OEM
Power Supply :
3N 380V 50HZ
Operation Ambient Temp :
-35~43℃
factory :
Guangdong China
Name :
EVI Heat Pump
Description
MEIDIBAO 24KW Inverter EVI Air To Water Heat Pump 3N 380V 50HZ

Foshan Meidibao Electrical Appliance Co., Ltd. has been a manufacturer professionally specialized in research, development and production of Heat Pumps since 2005. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee customer satisfaction.

Scientific research shows that from the perspective of health and comfort, the ideal temperature in winter is between 18-20°C. The ideal heat distribution shows a temperature distribution from floor to ceiling with vertical reduction, which can keep the feet warm and clear-headed. The heat of the floor heating rises from the foot, so that the temperature of the whole indoor space is hierarchically distributed. It conforms to the theory that TCM health is "warm and cool". Floor heating is an ideal heating method without hot air, which is beneficial to the body to maintain moisture. At the same time, it has a promoting effect on rheumatism and asthma.

Key Features
  • Inverter compressor
  • Multiple protections
  • Automatic and forced defrost
  • Anti-freezing function
Technical Specifications
Model M-D24ADH
Heating Capacity Range 10.8-36 kW (36849-122832 BTU/h)
Heating Power Input Range 2.5-9.5 kW
Cooling Capacity Range 6.5-21.6 kW (22178-73699 BTU/h)
Cooling Power Input Range 2.1-8.8 kW
Frequency 30-90 Hz
ErP level (35℃) A++
ErP level (55℃) A+
Power Supply 3N 380V 50HZ
Max. Running Current 21.8 A
Refrigerant Type R410A
Refrigerant Quantity 3.3 kg
Compressor Brand Mitsubishi Electric
Water Pump Brand WiLo
Water Connection 1"
Water Flow 6.2 m³/h
Water Pressure Drop 10 kPa
Water Pump Head 11.8 m
Fan Motor Quantity 2
Motor Power Input (max) 136 W
Motor Power Input (min) 18 W
Fan Speed (max) 850 rpm
Fan Speed (min) 300 rpm
Noise 58 dB(A)
Net Weight 183 kg
Gross Weight 235 kg
Net Dimension (L/W/H) 1370×580×1525 mm
Shipping Dimension (L/W/H) 1480×690×1690 mm
Energy Efficiency Advantages
  • Under ideal weather conditions, heat pump water heaters produce three times the energy used to power the heat pump
  • Uses one-third of the electricity of conventional electric water heaters
  • Significant cost savings for residential customers

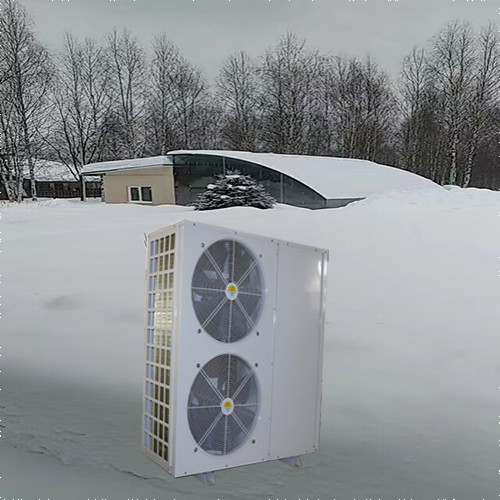

Product Images
24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor 24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor 24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor 24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor 24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor 24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor 24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor 24KW MEIDIBAO Inverter EVI Air to Water Heat Pump with 3N 380V 50HZ Power Supply and Inverter Compressor
