8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
Specifications
Brand Name :
AIRERA
Model Number :
OGFD-30D C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
2,000-50,000 USD
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Delivery Time :
3-30 days
Packaging Details :
According to international standards
Weight :
770
Dimension(l*w*h) :
1400*1000*1220MM
Free air delivery（m3/min） :
3.7-3.4-3.0
Working pressure（Mpa） :
0.7-0.8-1.0
Cooling air flow（m3/hr） :
7200
Oil Free :
TUV ISO8573-1
Power Source :
Electric
Cooling System :
Water& air cooling system
Application :
Medical, Pharmaceutical, Food Processing
Exhaust Pressure :
Accurate
Vsd :
Optional
Voltage :
220V/380V/415//420/460
Oil Content :
Oil Free
Certificates :
TUV,ISO,CE
Working Pressure :
8-10Bar
Description

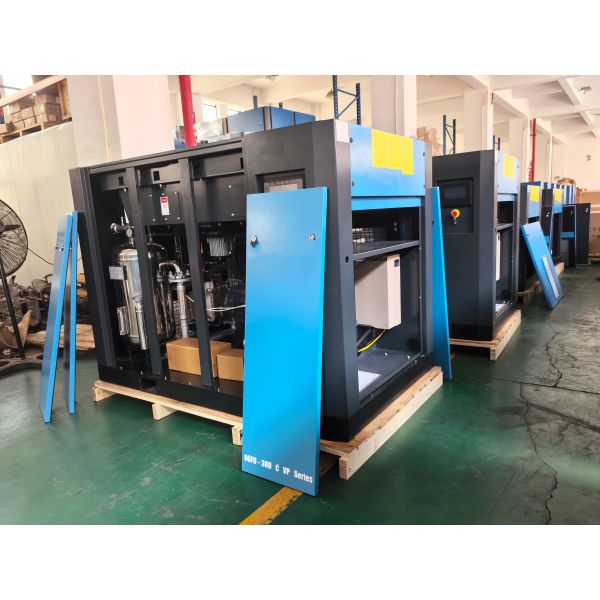

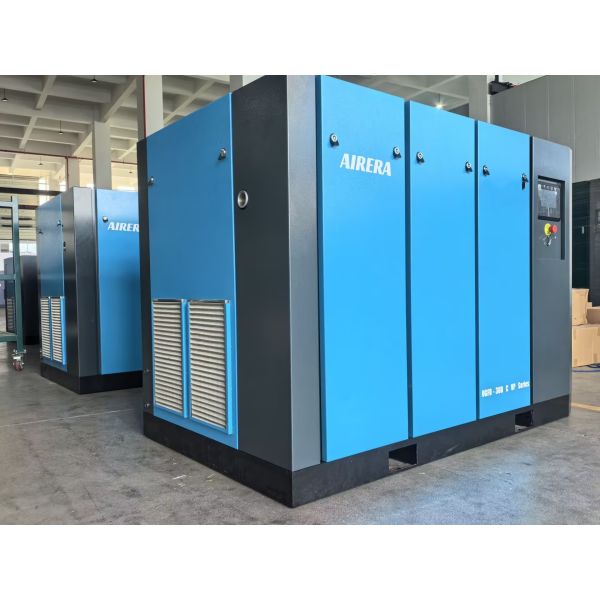

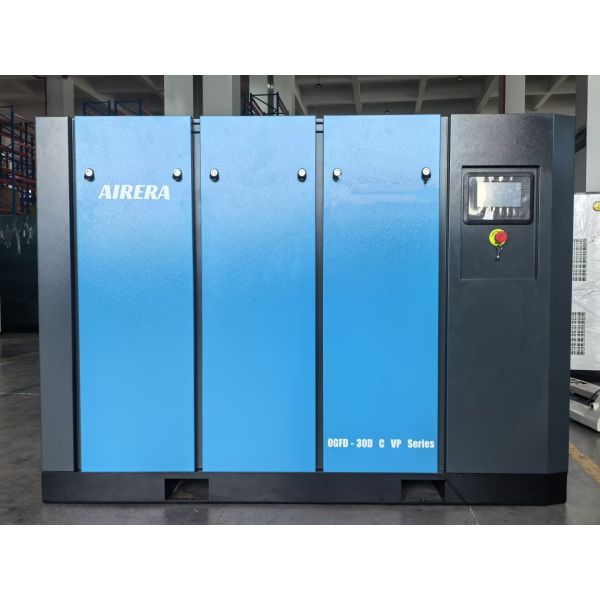

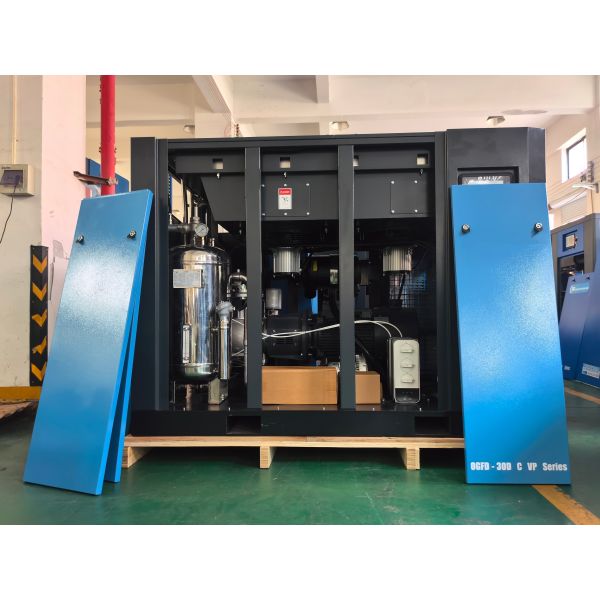

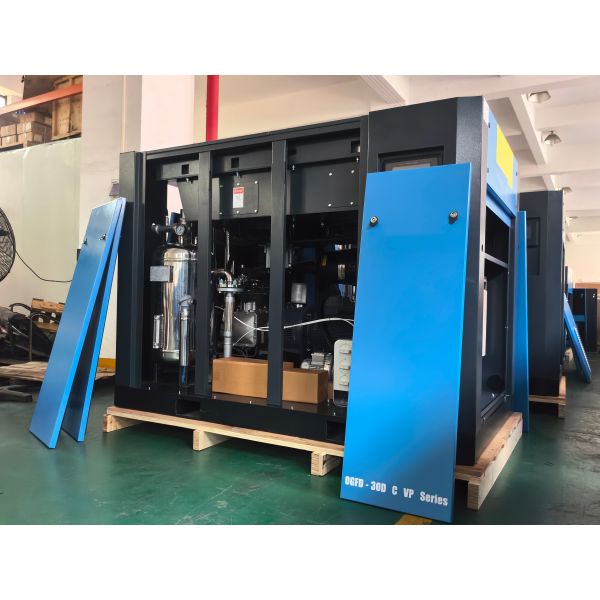

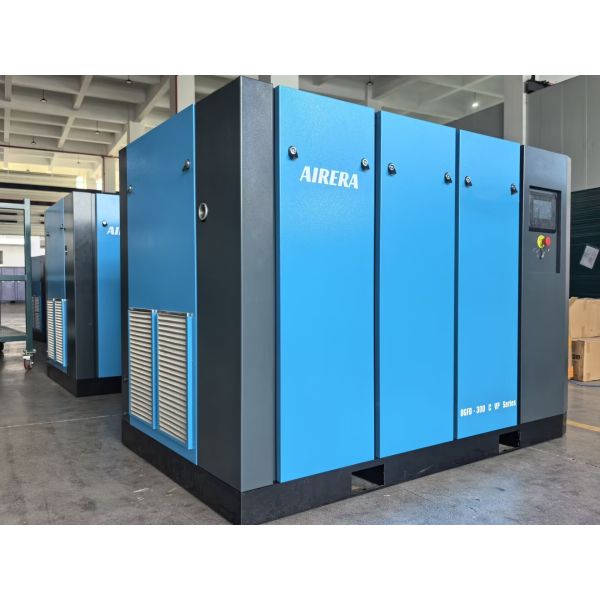

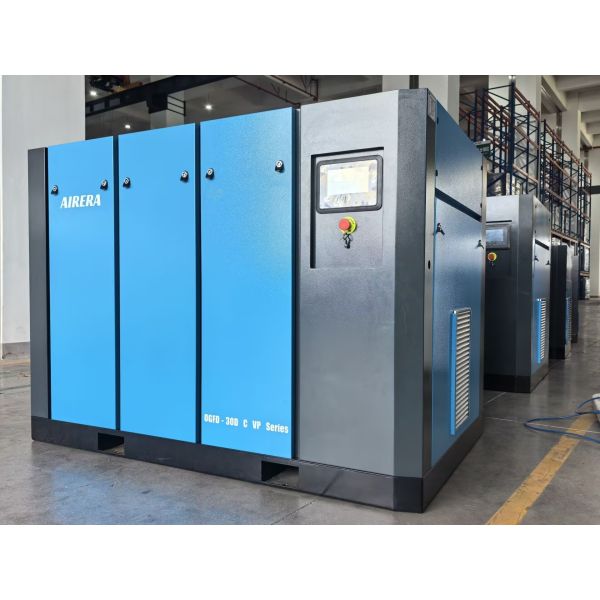

AIRERA OGFD-30D C VP Oil-Free VSD Screw Air Compressor

Class 0 of ISO8573-1 class standard

8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor

The AIRERA OGFD-30D C VP Oil-Free Variable Speed Screw Air Compressor is engineered to provide ISO Class 0 certified oil-free air while maximizing operational efficiency. With integrated variable speed drive technology, the compressor dynamically adjusts motor speed to align with real-time air demand. This reduces energy waste, stabilizes system pressure, and extends equipment lifespan.
Built for reliability, the OGFD-30D C VP features a robust structure, intelligent control system, and low-noise design — making it ideal for continuous industrial applications where air quality cannot be compromised. AIRERA delivers a clean, intelligent, and cost-efficient compressed air solution trusted by modern manufacturers.
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
Key Features & Benefits
  • ISO Class 0 Oil-Free Air: Guarantees zero contamination to protect sensitive production processes.
  • Advanced Variable Speed Drive: Reduces energy consumption by up to 35% compared to fixed-speed compressors.
  • Intelligent Pressure Control: Maintains consistent airflow for improved production stability.
  • Quiet Operation: Optimized internal layout minimizes vibration and noise.
  • Industrial-Grade Reliability: Designed for continuous operation in demanding environments.
  • Lower Total Cost of Ownership: Less energy waste + reduced maintenance = long-term savings.
Why Choose Our Oil-Free Screw Compressors?
  • Advanced energy-saving technology
  • Guaranteed clean air quality
  • Stable and intelligent performance
  • Reduced operational costs
  • Trusted by global industries
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
Technical Specifications - 30KW Air Cooling Compressor
30KW Air Cooling Compressor Parameters
ITEM UNIT MODEL OGFD-30
Free air delivery m³/min 5.2 | 4.7 | 4.3
Max. working pressure MPa 0.7 | 0.8 | 1.0
Compressor type Oil free screw compressor
Cooling type Air cooling
Driven type Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity ≤90%
Noise Level dB(A) ≤64
Inlet Temp. ℃ 2-40
Drive rotor speed rpm 2980
Compressed air outlet temperature ℃ Ambient temperature＋20
Cooling air flow m³/hr 8800
Control mode Intelligent controller
Safety valve set pressure MPa 0.77 | 0.88 | 1.10
Lubricating water volume L 40
Oil content 0
Compressed air outlet connection G1-1/2
Dimension - L mm 1920
Dimension - W mm 1170
Dimension - H mm 1320
Net Weight kg 1120
Motor - Model Y2200L1-2
Motor - Speed rpm 2950
Motor - Rated Power KW 30
Motor - Service factor 1.2
Motor - Protection type IP55
Motor - Efficiency IE3
Motor - Startup mode ʏ-Δ starting
Motor - Voltage V 380(Special on request)
Motor - Frequency Hz 50(Special on request)
Motor - Rated current A 56.9
Motor - Weight of motor kg 232
8-10Bar air-cooled VSD oil-free Screw Air Compressor Industrial Air Compressor
Frequently Asked Questions
What does ISO Class 0 mean?
It represents the highest air purity level with zero oil contamination risk.
How much energy can VSD save?
Typically 30-35%, especially in facilities with fluctuating air demand.
Is this compressor suitable for continuous production?
Yes. It is engineered for stable 24/7 operation.
Which industries should use oil-free compressors?
Any industry where air directly impacts product quality.
Can AIRERA customize the configuration?
Absolutely — voltage, pressure, and system design can all be tailored.
Pure Air. Smart Energy. Reliable Performance. Where Clean Air Meets Intelligent Efficiency
