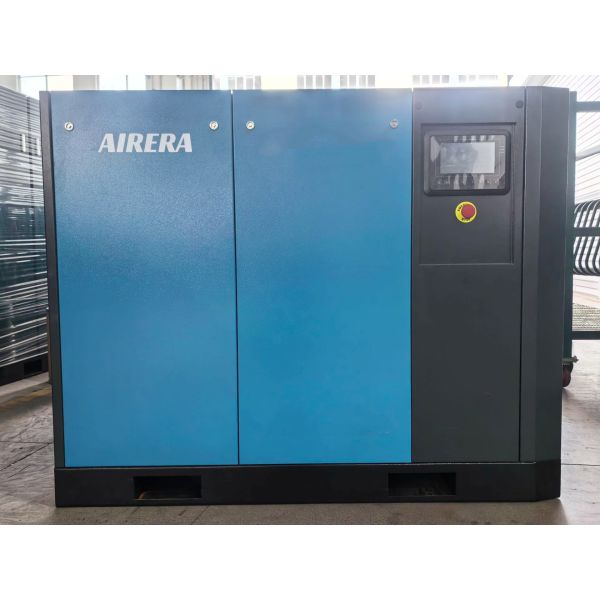

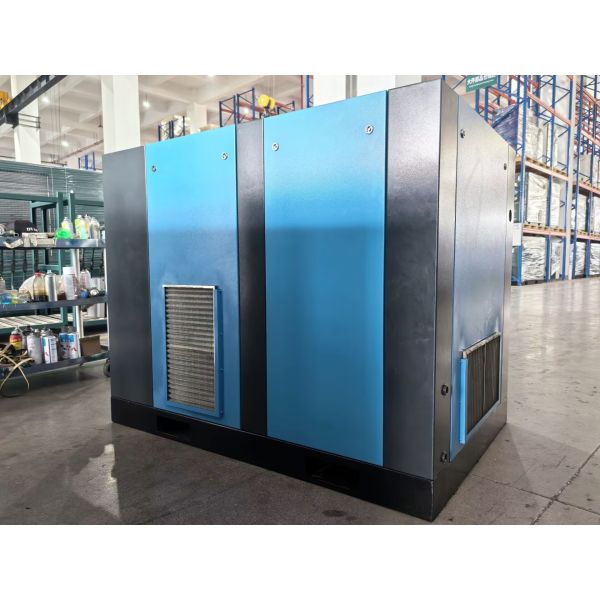

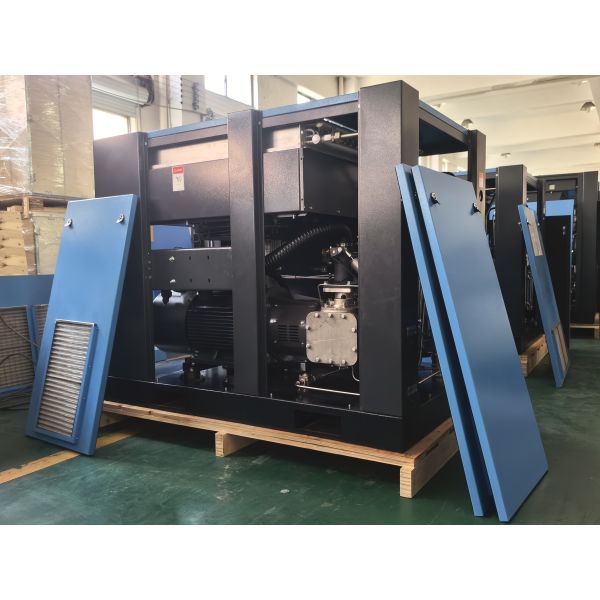

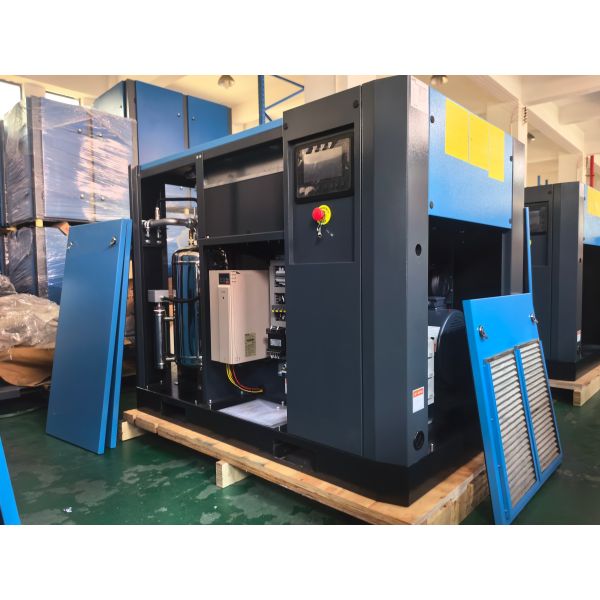

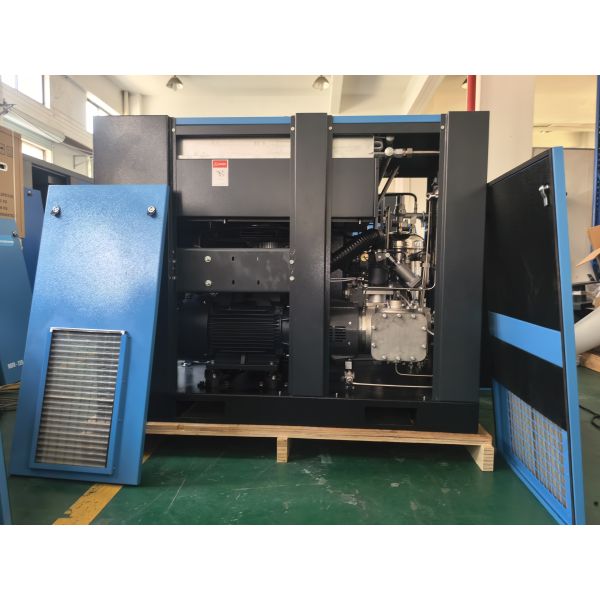

AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
Specifications
Brand Name :
AIRERA
Model Number :
OGFD-18.5D C VP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-30,000 USD
Payment Terms :
L/C,T/T
Supply Ability :
2,000-3,000 per month
ITEM :
OGFD-18.5
Compressor type :
Oil inject screw compressor
Net Weight :
700
Dimension :
1400*1000*1200
Description
The features of EVO air end:
  • Ultimate efficiency and reduced noise through
  • High volumetric output due to
  • Reduced internal leakage
  • Thermally optimized oil injection system
  • Improved suction port efficiency giving reduced internal losses
  • Optimized torque characteristics and reduced internal friction
  • Improved outlet port with lower pressure losses
  • Reduced noise and low vibration due to
  • Smooth rollina of the rotors with new ROllING PROFll

AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor

Product Overview

The AIRERA OGFD-18.5D C VP is an 18.5kW variable speed rotary screw air compressor designed for small to medium industrial applications that require stable compressed air supply with improved energy efficiency.

Equipped with inverter control technology, this compressor automatically adjusts motor speed to match real time air demand, reducing energy consumption compared to fixed speed models. The high efficiency screw airend ensures reliable performance under varying load conditions.

Designed for continuous operation in industrial environments, the OGFD-18.5D C VP combines compact construction with intelligent control, making it an ideal choice for workshops, small manufacturing plants, and other facilities seeking to optimize compressed air costs.

AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor

Key Features
VSD Inverter Control

Automatically adjusts motor speed based on air demand, reducing energy consumption during partial load operation.

High Efficiency Screw Airend

Precision engineered rotors deliver reliable compressed air with optimal efficiency for continuous industrial use.

Stable Pressure Control

Maintains consistent air pressure, protecting downstream equipment and improving production quality.

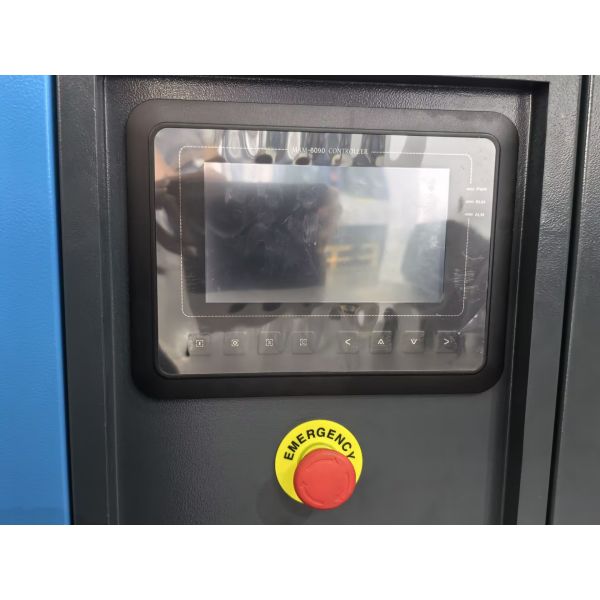

Intelligent Controller

User friendly interface provides real time monitoring of pressure, temperature, and maintenance intervals.

Compact Industrial Design

Space saving footprint suitable for workshops and small manufacturing facilities.

Low Noise Operation

Soundproofing keeps noise levels low for comfortable installation near work areas.

AIRERA OGFD-18.5D C VP 18.5kW Variable Speed Rotary Screw Air Compressor
Technical Parameters

18.5KW air cooling compressor parameters

ITEM UNIT MODEL
OGFD-18.5
Free air delivery m3/min 3.10 2.8 2.5
Max. working pressure MPa 0.7 0.8 1.0
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status Temperature ℃ ≤45
Pressure MPa Atmospheric pressure
Relative humidity
≤90%
Noise Level dB(A) ≤61
Inlet Temp. ℃ 2-40
Drive rotor speed rpm 2980
Compressed air outlet temperature ℃ Ambient temperature＋20
Cooling air flow m3/hr 6500
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 0.88 1.10
Lubricating water volume L 27
Oil content ppm 0
Compressed air outlet connection
G1
Dimension L mm 1400
W mm 1000
H mm 1200
Net Weight kg 700
Motor Model
Y2160L-2
Speed rpm 290
Rated Power KW 18.5
Service factor
1.2
Efficiency
IE3
Insulation class
IP55
Startup mode
Y-Δ starting
Voltage V 380(Special on request)
Frequency Hz 50(Special on request)
Rated current A 35.5
Weight of motor kg 145


FAQ
Q1: How much energy can a variable speed compressor save?
Variable speed compressors typically save 20-30% energy compared to fixed speed models, especially in applications with fluctuating air demand.
Q2: Is an 18.5kW compressor suitable for continuous operation?
Yes. The OGFD-18.5D C VP is designed for continuous industrial operation with reliable components and cooling systems.
Q3: What pressure options are available?
This model can be configured for 7 bar, 8 bar, 10 bar, or 13 bar working pressure based on your application requirements.
Q4: Can voltage be customized for different countries?
Yes. We can customize voltage and frequency according to local power supply specifications.
