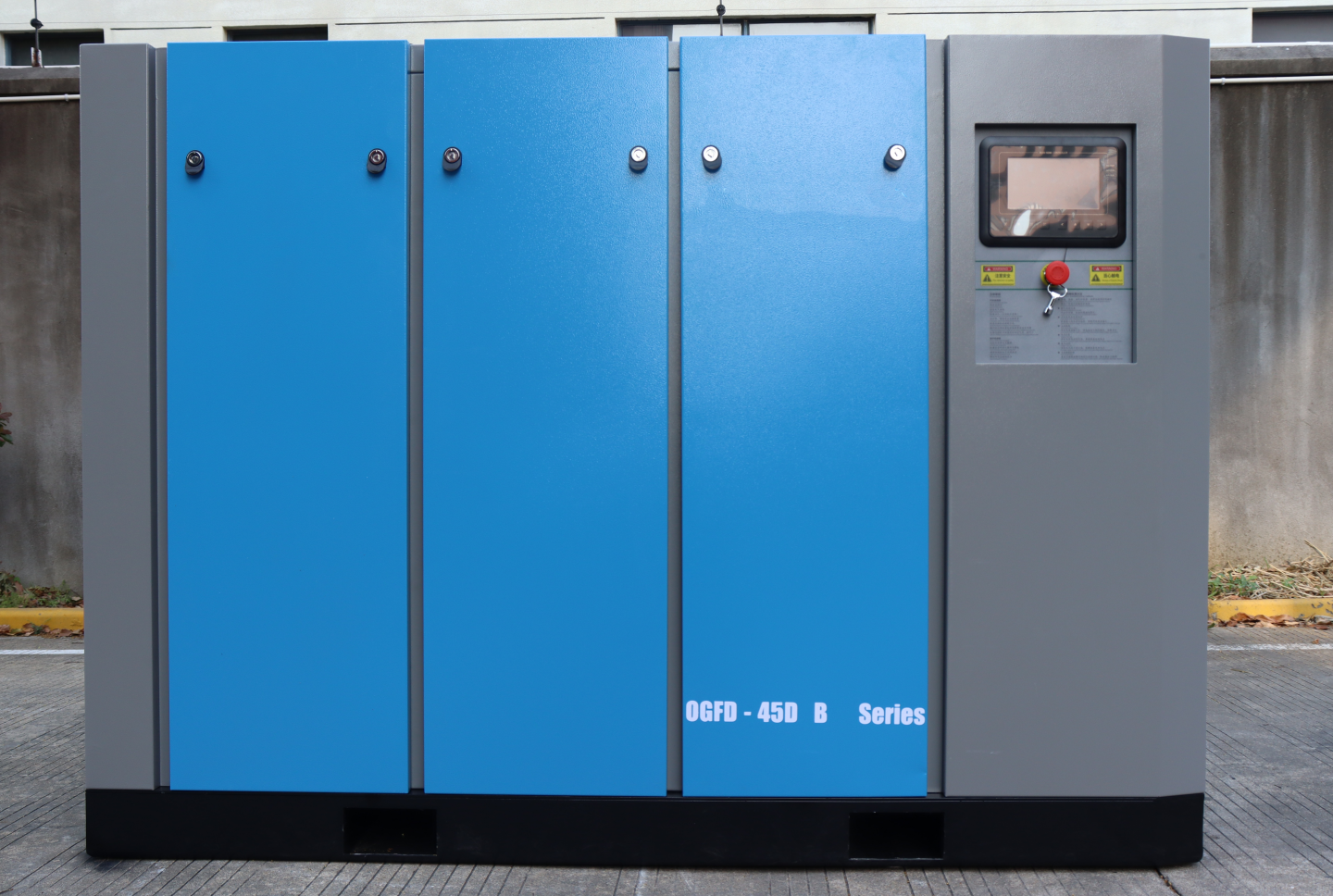

AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor
Specifications
Brand Name :
AIRERA
Model Number :
OGFD-45D B VP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-30,000 USD
Payment Terms :
L/C,T/T
Supply Ability :
2,000-3,000 per month
ITEM :
OGFD-45D B VP
Compressor type :
Oil free screw compressor
Cooling type :
Air cooling
Net Weight :
1340
Description
OGFD-VSD series air screw compressor

Hitored wel-krown manutacturer producng quelty screw compressorol fre compresporhigh pressure compressorn So U.CE certhcateswth good prce,5years warany.Pdesign, more energy-saving, reliable compressor system for all kinds of projects.

AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor

Product Overview

The AIRERA OGFD-45D B VP is a 45kW variable speed rotary screw air compressor designed for medium to large industrial applications that require stable compressed air supply with maximum energy efficiency.

Equipped with advanced inverter technology, this compressor continuously adjusts motor speed to match real time air demand, significantly reducing energy consumption compared to fixed speed models. The high efficiency screw airend ensures reliable performance even under fluctuating load conditions.

Designed for continuous operation in demanding industrial environments, the OGFD-45D B VP combines robust construction with intelligent control, making it an ideal choice for manufacturing plants, metal processing facilities, and other industrial operations seeking to optimize compressed air costs.


AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor

Key Features
Advanced VSD Inverter Control

Automatically adjusts motor speed based on air demand, reducing energy consumption by up to 30% during partial load operation.

High Efficiency Screw Airend

Precision engineered rotors deliver reliable compressed air with optimal efficiency for continuous industrial use.

Stable Pressure Control

Maintains consistent air pressure within ±0.1 bar, protecting downstream equipment and improving production quality.

Intelligent Controller

User friendly interface provides real time monitoring of pressure, temperature, and maintenance intervals.

Durable Industrial Construction

Built with premium components for long service life in demanding environments.

Low Noise Operation

Advanced soundproofing keeps noise levels low for installation near work areas.


AIRERA OGFD-45D B VP 45kW Variable Speed Rotary Screw Air Compressor

Technical Parameters
45KW air cooling compressor parameters
ITEMUNITMODEL
OGFD-45
Free air deliverym3/min7.56.86.0
Max. working pressureMPa0.70.81.0
Compressor type
Oil free screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet statusTemperature℃≤45
PressureMPaAtmospheric pressure
Relative humidity
≤90%
Noise LeveldB(A)≤66
Inlet Temp.℃2-40
Drive rotor speedrpm2980
Compressed air outlet temperature℃Ambient temperature＋20
Cooling air flowm3/hr9500
Control mode
Intelligent controller
Safety valve set pressureMPa0.770.881.10
Lubricating water volumeL40
Oil contentppm0
Compressed air outlet connection
G1-1/2
DimensionLmm1920
Wmm1170
Hmm1320
Net Weightkg1340
MotorModel
Y2200L1-2
Speedrpm2950
Rated PowerKW45
Service factor
1.2
Protection type
IP55
Efficiency
IE3
Startup mode
Y-Δ starting
VoltageV380(Special on request)
FrequencyHz50(Special on request)
Rated currentA84
Weight of motorkg312
FAQ
Q1: How much energy can a variable speed compressor save?

Variable speed compressors typically save 20-30% energy compared to fixed speed models, especially in applications with fluctuating air demand.

Q2: Is a 45kW compressor suitable for continuous 24/7 operation?

Yes. The OGFD-45D C VP is designed for continuous industrial operation with heavy duty components and reliable cooling systems.

Q3: What pressure options are available?

This model can be configured for 7 bar, 8 bar, 10 bar, or 13 bar working pressure based on your application requirements.

Q4: Can voltage be customized for different countries?

Yes. We can customize voltage and frequency according to local power supply specifications.
